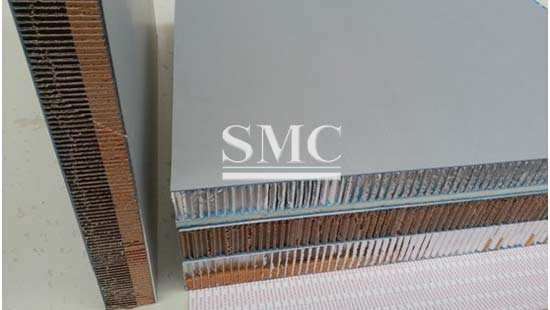

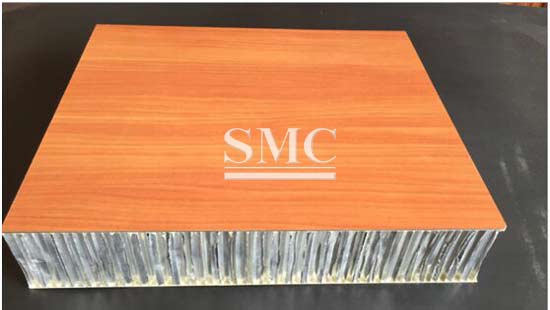

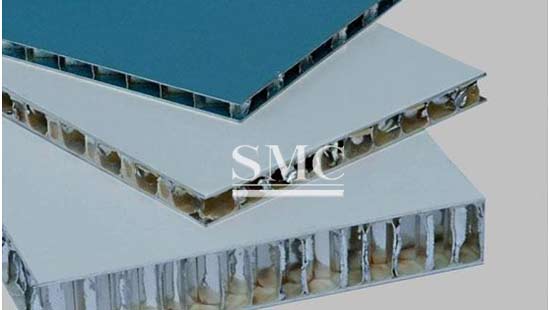

Aluminum Honeycomb Panel
Total Thickness: 6mm - 200mm
Standard thickness: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm
Standard size: 1220x2440, Other size can be customized
1) Total Thickness: 6mm - 200mm
2) Standard thickness: 6mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm
3) Standard size: 1220x2440
Other size can be customized
4) Max. width: 2000mm
5) Max. length:10000mm
6) Colors: RAL colors
7) Quality Warranty: 20 years

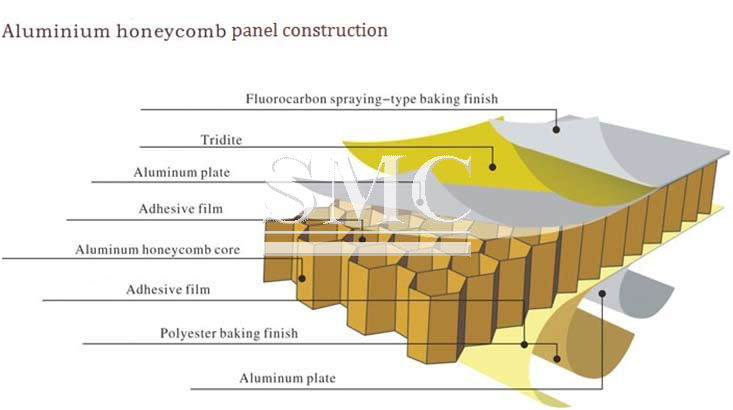

TOP ALUMINIUM SKINS
1) Thickness: 0.5mm - 1mm (standard)
2) Alloy: 3003, 5005, 5052
3) Special thickness according to customers’ requirements (such as 1.5-2.0-3.0mm)
4) Surface Treatment: PE Coated, PVDF Coated
ALUMINUM CORE
1) Hexagonal cells, Alloy series 3003
2) Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”
3) Foil thickness: from 50 to 80 microns
BOTTOM ALUMINIUM SKINS
1) Thickness: 0.5mm - 1mm (standard)
2) Alloy: 3003, 5005, 5052
3) Special thickness according to customers’ requirements (such as 1.5-2.0-3.0mm)
4) Surface Treatment: PE Coated, PVDF Coated
On request: Special alloys, treatments and coating with RAL colors

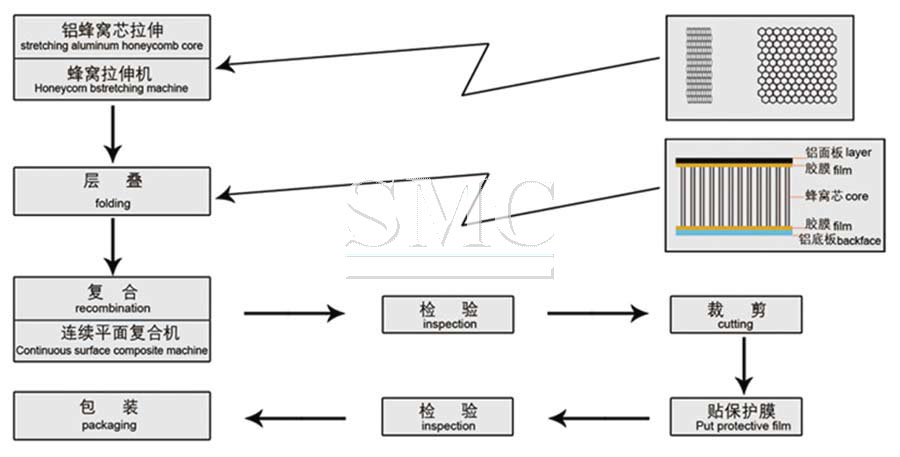

Production flow chart:

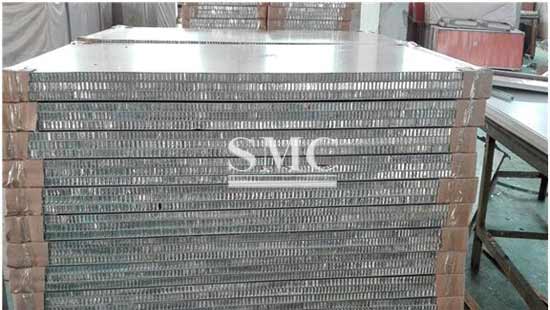

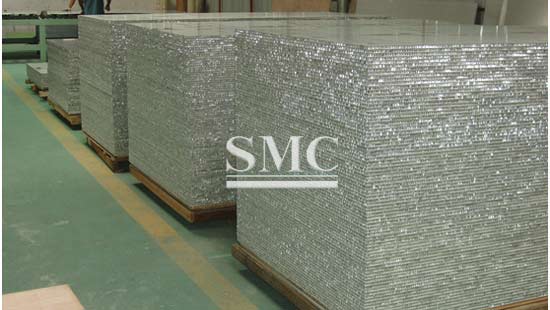

Packaging of Aluminum Honeycomb Panel
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
Applications of Aluminum Honeycomb Panel:

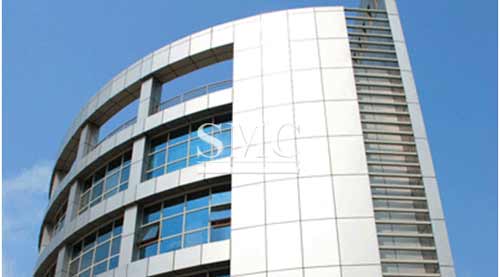

1. Curtain Wall

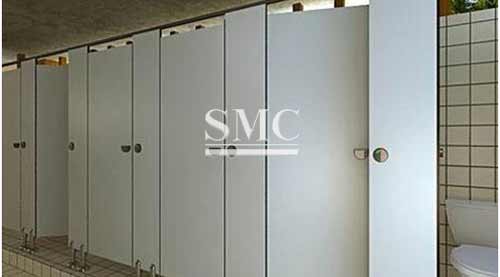

2. Metal partition for toilet

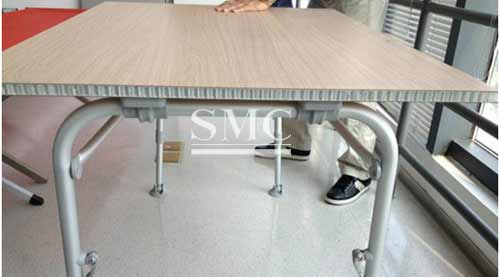

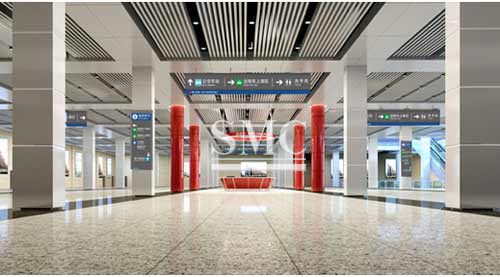

3. Indoor Decoration, wall material, decoration material for lift and elevator; Funiture
4. Transportation Industry
Advantages of Aluminum Honeycomb Panel:
1) Light weight, energy saving, can greatly reduce the object load, easy to install, maintain and recyclable
2) High strength, good rigidity, not easily deformed, bearing large
3) Good sound insulation, heat insulation, moisture proof, fire proof, non-toxic, environmental protection
4) High peel strength, weather resistance, paint cover lasting, anti-weathering, anti-chemical corrosion, luxurious appearance, Durable
Features of Aluminum Honeycomb Panel:
1) Fireproof
2) Heat & Sound Insulation
3) Rust resistant
4) Weathering resistance
