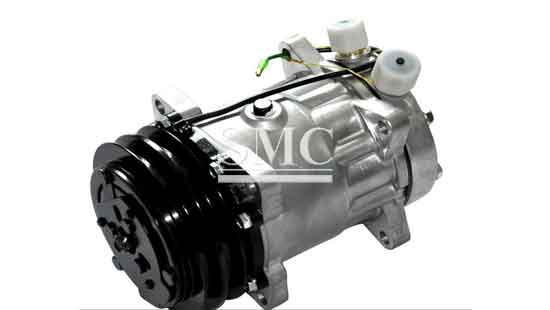

Auto Air-conditioned Compressor

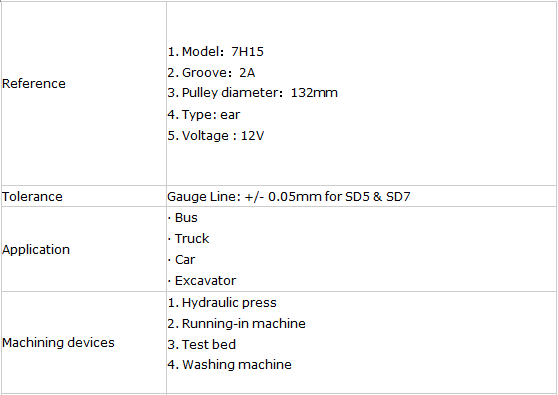

    Model: 7H15


    Refrigerant and oil: R134a  PAG46


    Voltage: 12V

Production procedure:
1. Putting piston into cylinder body
2. installing spring , screw , thrust piece , O-ring
3. installing front cover
4. Installing shaft sealing , running-in
5. Testing gap , then installing cylinder head
6. Adding PAG46 , leak-checking , washing
7. Installing clutch

8. Packing



Description:

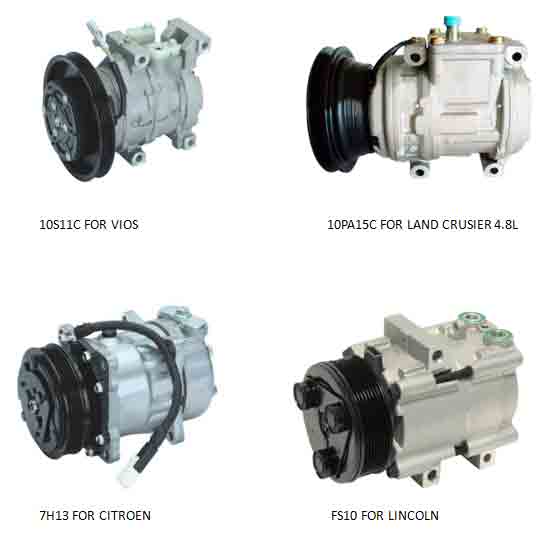

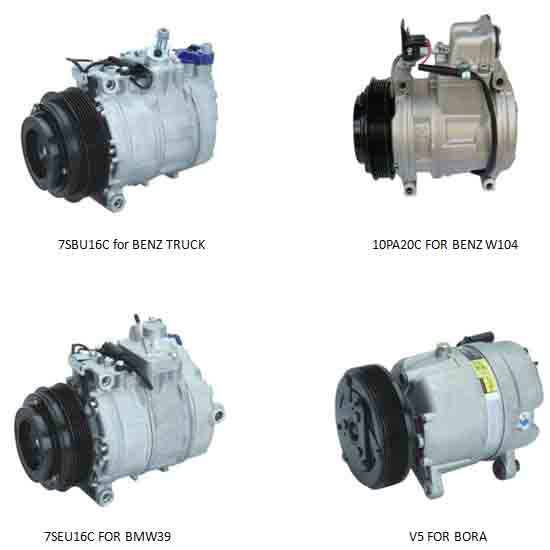

Compressor model: SD7H15/ SDH14/ V5/ V6/ PXE16/ FS10 SEU16C/ SBU16C/ SBU17C,etc.

Mount type: Direct or Ear

Refrigerant and oil: R134a PAG46/ R12 5GS

Displacement: 155.00, etc.

Rotation Direction: C W

Oil qty: 300cc, etc.

Cylinder head: WV/ JE/ JD/ Q/ QD/ FL/ MD/ QB/ WE/ WL SQ/ QC/ K, etc.

Port angle: V/ H-PAD/ H-O’ring/ V-pad/ V-O’ring

Head port style: 3/4*7/8 1/14

Rotor size: 125mm/ 119mm/ 132mm/ 149mm/ 152mm, etc.

Rotor groove: A/ 2A/ PV4/ PV5/ PV6/ PV7/ PV8/ PV9/ PV10/ PV11/ PV12

Gauge line: 46.55mm/ 39.55mm/ 61.50mm, etc.

Coil voltage: 12V/ 24V

Connection: 1 wire/ 2wire

Packaging of Auto Air-conditioned Compressor:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization

Certification:

QC/T600-2000

JB/T6915-1993

IMACA308-1977

JT/T2116-1977

JB/T6914-1993
