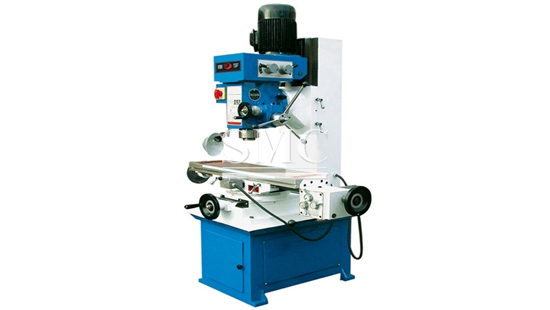

Drilling and milling machine
Products detail: ZX50C,ZX7550CW
Drilling maximum diameter (mm): 50
End mill maximum width (mm): 100
-
ZX50C :
Drilling maximum diameter (mm): 50
End mill maximum width (mm): 100
Vertical milling maximum diameter (mm):25
Bore maximum diameter (mm): 120
Maximum tapping diameter (mm):M16
Spindle end to table distance (mm):38-430
Spindle speed range (rpm):40-1400
Spindle travel (mm): 120
Table size (mm):900 × 240
Worktable travel (mm): 500 × 250
Overall dimensions (mm):1100 × 970 × 1650
Motor power (kw):1.5 / 2.2
-
ZX7550 :
Drilling maximum diameter (mm): 50
End mill maximum width (mm): 100
Vertical milling maximum diameter (mm):25
Bore maximum diameter (mm): 120
Maximum tapping diameter (mm):M16
Spindle end to table distance (mm):90-490
Spindle speed range (rpm):115-1750
Spindle travel (mm): 120
Table size (mm):1000 × 240
Worktable travel (mm): 500 × 230
Overall dimensions (mm):1280 × 1100 × 2080
Motor power (kw):1.5 / 2.2
Packaging of Auto Air-conditioned Compressor:
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)Shanghai Metal Standard
2)Customization
Advantages of Drilling and milling machine:
1. Responding .lie can realize two processing function milling.
2. Adopts vertical spindle sleeve with manual and micro two feeding.
3. Reponding to X,Y,Z three direction guide super audio quenching after grinding.
4. Adopts three tables for mobile: type A wayfor three;C for one -way ,Type D for two to.
