Processing Machine

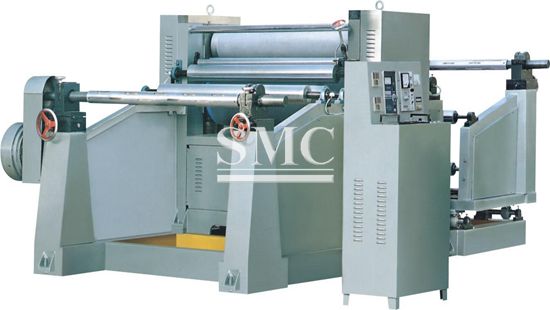

Embossing Machine

    Machine type:K-Y1200,  K-L1,  K-L2…..


    Roller size:Φ350-450×1000-1600mm


    Material thickness: 0.2-1.0mm


    Coil Width: 1250mm or by request

Machine type:K-Y1200,  K-L1,  K-L2…..
Roller size:Φ350-450×1000-1600mm
Material thickness: 0.2-1.0mm
Coil Width: 1250mm or by request
Material of roller:42CrMo
Roller Hardness: HRC55-58
Way of embossing: both up and down rollers embossing at same time
Embossing regulation: hydraulic
Motor power: 11-15KW
PLC speed:Line speed 0-30 m/min

Machine type:K-Y1200

For Uncoiling Machine Technical Data:

Outline data: 4000×1500×1800 mm (Length× Width× Height)

Cylinder specification: Φ500-508×1350mm

Cylinder support the weigh:5000kg

Size of cylinder: control by hydro-cylinder

Side with brake systems



For Embossing Machine Technical Data:

Outline data: 3300×1200×1500mm(Length× Width× Height)

Roller size: diameter 400×1400m

Material of roller : 42CrMo alloy steel

Roller Hardness: HRC55-58

Way of embossing: the male and female rollers press each other up and down

Transmission way: by gear

Embossing regulation:by screw

Motor power: 380V 15Kw 50Hz motor, cycloid pinwheel reducer

Line speed: 0-45m/min

Embossing pattern: customers requirement



For Coiling Machine Technical Data:

Outline data: 4200×1500×1800 mm(Length× Width× Height)

unloading coil: move by promotion and demotion cart

Uncoil cylinder specification: Φ500-508×1350mm

Cylinder support the weigh: 5000kg

Size of cylinder: control by hydro-cylinder

Coilling motor: 380V 15KW, variable frequency motor, line speed 0-30m/min



Other

Control the line by Electrical Cabinets

Machines interlink through chassis.



Pattern

Advantage

Complete supporting embossing line production technology

Strict production management, a leading technical level

Pattern diversification, selection of dozens of flower patterns
