High Carbon, Special Steel

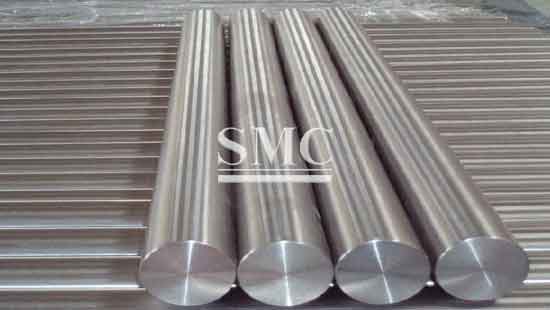

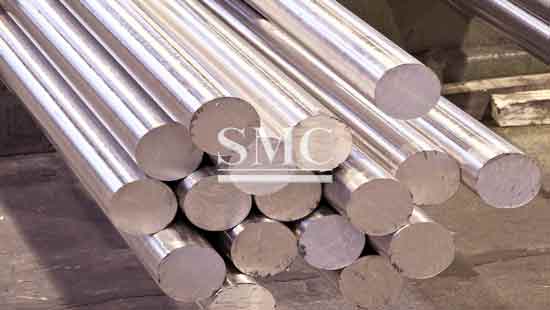

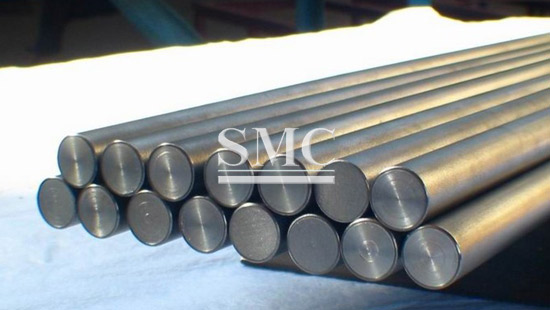

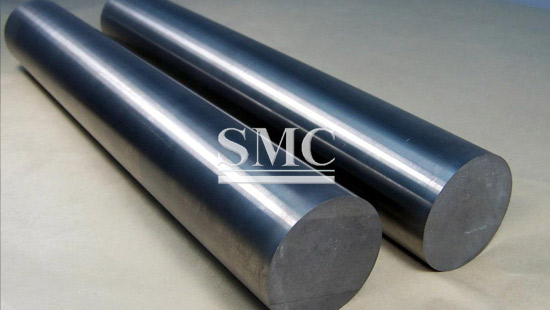

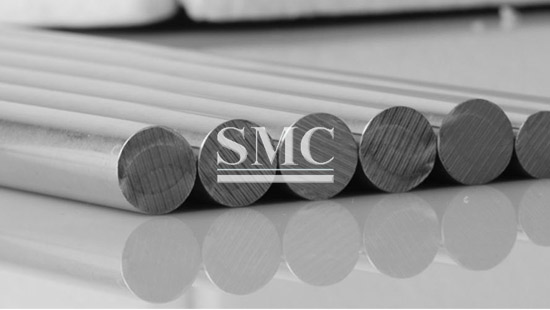

Alloy Steel bar - Die Steel

    Type: round bar, plate


    I.D.: 3-1500mm


    Thickness: 3-180mm

Alloy Steel bar - Die Steel is mainly used for manufacture of cold-work dies with high abrasive resistance

and small shock load.

Die steel is a steel used to make molds such as cold die, hot forging die, and die-casting die. Molds are the

main processing tools for manufacturing parts in industrial

sectors such as machinery manufacturing, radio instruments, motors, and electrical appliances.
Die steel can be roughly divided into three types: cold-rolled die steel, hot-rolled die steel and plastic die

steel for forging, stamping, cutting, die-casting and so on.

Due to the different use of various molds and complicated working conditions, the steel for molds should have

high hardness, strength, wear resistance, sufficient

toughness, high hardenability and quenching according to the working conditions of the molds they

manufacture. Hard and other process performance. Due to the

different uses and the complicated working conditions, the performance requirements for the steel for the

mold are also different.
Shanghai Metal Corporation is a professional manufacturer and supplier of  Die steel with high quality and

reasonable price. If you want to know more about Die

steel products or Die steel price please feel free to contact us, we will reply you within 24 hours.


Features of Die Steel:
- Good mechanical property after heat treatment
- Good through hardenability
- Easy heat treatment procedure
- Low distortion, mirror polishing
- Pattern etching ability

Specification of Die Steel

1. Standard Comparison of Die Steel

2. Size Available

    1) Round bar: Dia 16mm-600mm

    2) Flat bar: Thickness: 16-500mm;Width: 200-1100mm; Length can be customized.

3. Smelting Process

    1) EAF+LF+VD

    2) EAF+LF+VD+ESR Note:EAF=Electric Arc Furnace; LF=Ladle Furnace; VD=Vacuum Degassing; ESR=Eleroslag Remelted.

4. Shaping: Hot forged / Hot rolled

5. Surface condition: Black surface/turning/milling/grinding/polishing

6. Annealing Hardness : HB230 Max Hardness after Q+T(quenching+tempering):47-49HRC

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

Application of Alloy Steel bar Die Steel:

- High precision mirror-polishing plastic mould

- Blanking die, punching pin, thread rolling die, cold heading die, pot clay die and forming die for -thermosetting plastics, all kinds of dies

- To make extrusion die for aluminum alloy and long service life die-casting die for aluminum, -magnesium, zinc, etc

- To make knockout pin/mandrel of hot die

- Large and medium sized hammers forging dies

- Cutting tools and measuring tools, etc
