Air Conditioning Spare Parts & Accessories

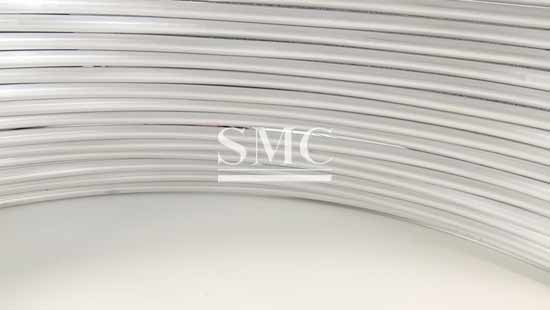

Aluminum Clad Copper Tube for Air Conditioning

    Outside Diameter: 6.35mm - 19.05mm


    Wall Thickness: 0.5mm - 1.50mm


    Tensile: >125MPa



    Elongation: >35%

Aluminum Clad Copper tube (ACC tube) applied in air conditioner and refrigerator are used superior grade of

3003 aluminum and C11000 copper. ACC tube is a new material with all advantages of copper tubes, which saves more than 30% purchase cost .



Specifications of Aluminum Clad Copper Tube:
1) Grade: C11000 copper, 3003 aluminum
2) Outside Diameter: 6.35mm - 19.05mm
3) Wall Thickness: 0.5mm - 1.20mm
4) Tensile Strength: 110MPa - 130MPa
5) Expanding: 40% - 50%
6) Blast pressure: 180MPa



Aluminum: 3003



Copper: T2 (C1100 in JIS; C11000 in ASTM)

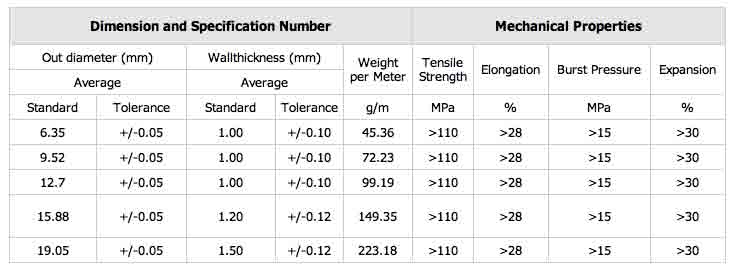

Nominal Datum:

Specific Gravity: 3.4g/cu.cm

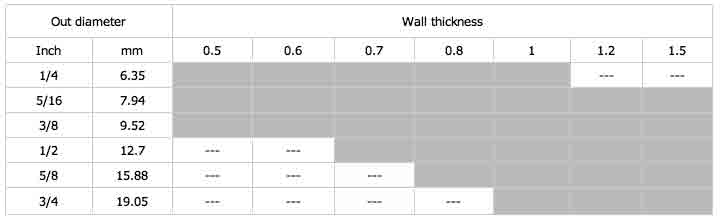

Bright Tubes:



*Shadowed area show the normal products we can make.

* If you have special request, please contact us.

* If you have special request, please contact us.

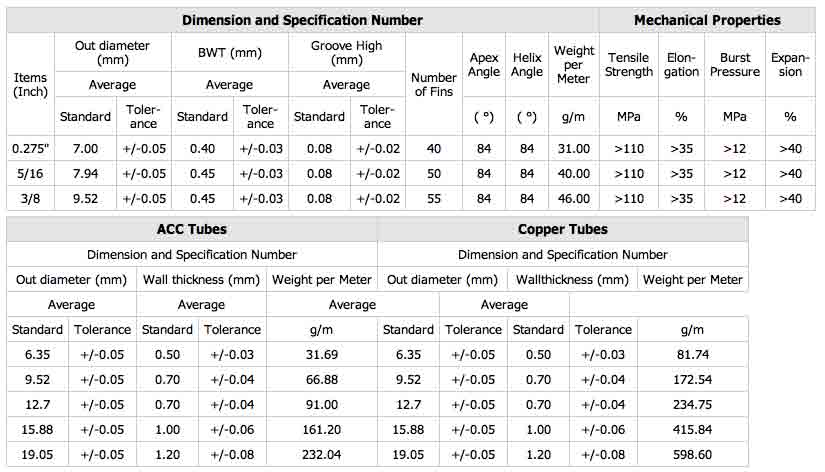

Inner Grooved Tubes:



Manufacturing of Aluminum Clad Copper Tube

Packaging of Aluminum Clad Copper Tube

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Features of Aluminum Clad Copper Tube:
1) Good heat-transmit performance
2) Heat conduction
3) Good elongation
4) Being extruded and processed well
5) Good corrosion-resistance
6) Climate-hardiness
7) Excellent heat-sinking capability


Applications of Aluminum Clad Copper Tube:
1) Air conditioner
2) Refrigeration
3) Cooler
4) Dehumidifier
5) Heat exchanger
6) Other industries
