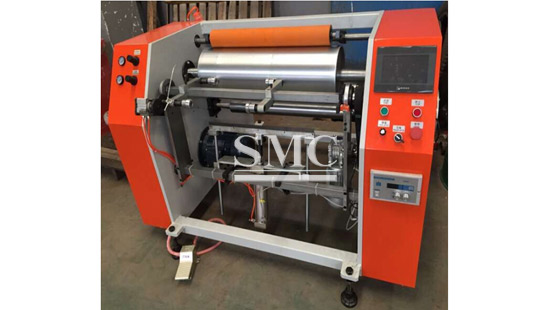

Aluminum Foil Rewinder Machine

    Thickness of raw material: 0.009mm0.02mm


    Width of raw material: 100-500mm


    Maximum unwinding diameter: Φ 600mm

Product Detail

Shanghai Metal Corporation is an professional manufacturer, export and supplier of Automatic Aluminum Foil Rewinder Machine. The offered rewinder machine is

designed by using quality proven components and innovative technology under the guidance of adept professionals. Our provided rewinding machine is available

in different designs and specifications as per the requirements of our customers.

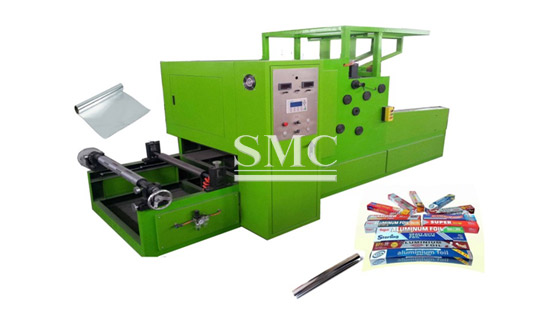

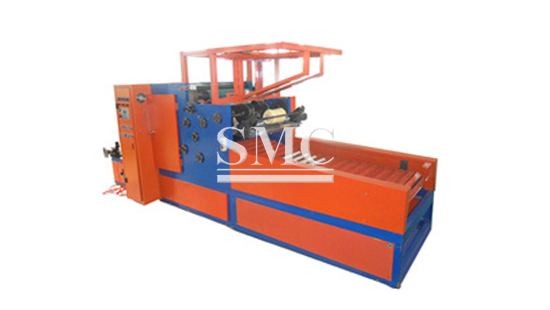

ATW-AF600 Automatic aluminum foil rewinder For Aluminium foil :
1.Thickness of raw material: 0.009mm0.02mm
2.Width of raw material: 100-500mm
3.Maximum unwinding diameter: Φ 600mm
4.Inner diameter of parent roll core: 76mm/152mm (option)
5.Inner diameter of finished product roll core:Φ 25 Φ30 Φ35mm (option)
6.Finished roll length:3m--300m
7.Production speed:0-150m/min
8.Unloading magnetic powder brake: 25N.M
9.Winding magnetic powder clutch:12N.M
10.Overall dimension: 4000*1350*1710mm
11.Total power:4KW
12.Compressed air pressure: 0.5 Mpa; (prepared by the customer)
13.Total Weight: About 1500KG

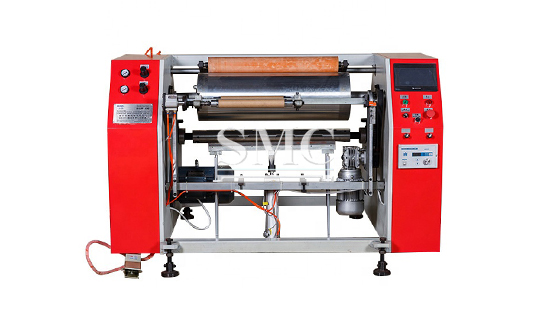

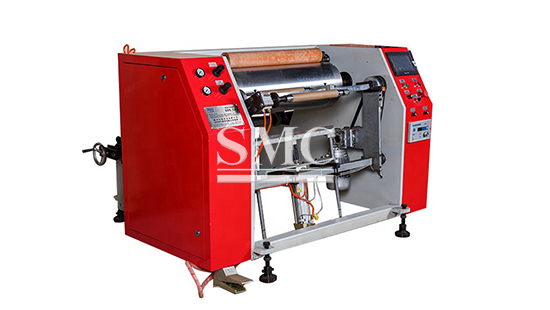

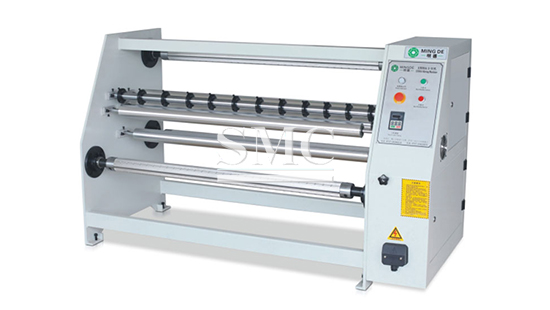

ATW-SDN600 Semi-Automatic aluminum foil rewinder  (High speed)
Material thickness: 0.009-0.02mm
Maximum Unwinding Width: 600mm
Maximum Unwinding Diameter: 600mm
Rewinding Width: 100-600mm
Mother Core Diameter: 76mm/152mm (option)
Production speed:0-150m/min
Finished Product Core Diameter: 30/35/40mm (option)
Length of production: 30m-400m
Production Speed : 0-500m/min
Power of Motor: 2 kw
Machine Weight: 1000 kg
Machine Dimension (LxWxH): 1000x1200x1300mm



Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

Features of Aluminum Foil Rewinder Machine:

Simplified structure and easy to maintain.

Single operator is required to manipulate and load the parent roll.

Auto rewinding shafts exchanging mechanism provide the nonstop production.

Flexible accommodation of paper cores in various diameters.

Equipped with meter counter which can stop the machine automatically when preset length reached.
