Grade: 6063, 6060, 6061, 6005



    Tempe: T4, T5, T6



    Wall thickness: above 0.5mm

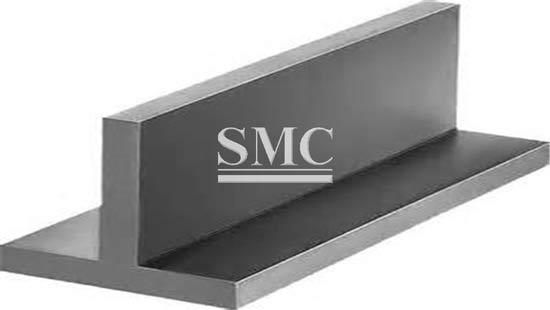

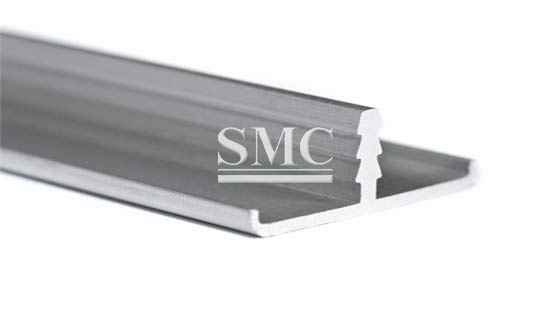

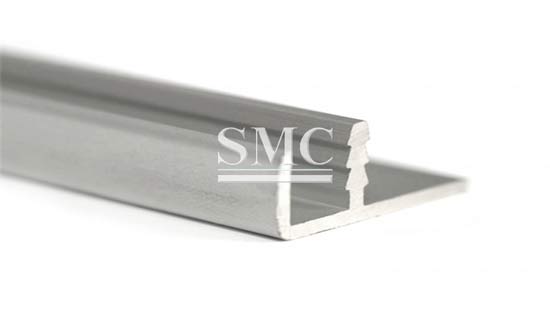

Aluminum T Profile is a T shaped aluminum profile, which alloy grades are 6061, 6063, 6060, 6082 with T4,T5,T6 temper. Can be widely used in production flow line, operating workable, office partition wall, folding screen, fence, various kinds of frame, display rack, goods rack, mechanical dust-proof seal cover, etc.



Specifications of Aluminum T Profile:
1) Grade: 6063, 6060, 6061, 6005
2) Temper: T4, T5, T6
3) Surface: Mill Finish, Anodized, Eletropharesis, Powder Coated, Wooden Finish, Polish
4) Certification: ISO 9001:2008, ISO14001:2004, SGS
5) Colour: Silver, Black, Red, Blue and many other colors can be available
7) Wall thickness: above 0.5mm
8) Hardness: MPa≥160, HV≥58, HW≥8
9) Oxide film: AA10, UM10; AA≥15, UM≥15
10) Aluminium profiles deeply processing: cutting, punching, drilling, milling, and fabricating

Primary Technical Data of Aluminum T Profile:

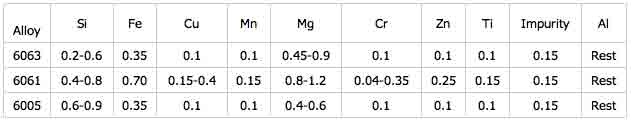

1) Chemical composition

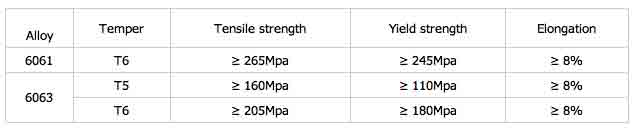

2) Mechanical properties

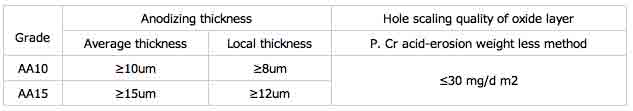

3) Anodized

4) Powder coating & wooden-grained



Manufacturing of Aluminum Profile

Packaging of Aluminum T Profile

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Features and Advantages of Aluminum T Profile:
1) Lightweight
2) Good corrosion resistance
3) Weldability
4) Nonmagnetic
5) Greater strength
6) Fine workmanship
7) Good curvature
8) Good appearance


Applications of Aluminum T Profile:

1) Production flow line
2) Operating workable
3) Office partition wall
4) Folding screen
5) Fence
6) Various kinds of frame
7) Display rack
8) Goods rack
9) Mechanical, etc.
