Block Machine

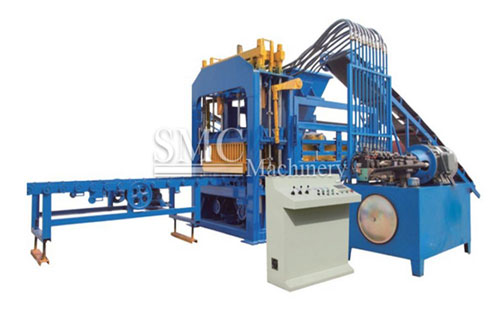

Automatic Block Machine

    Production Capacity: 5760 to 50400 PCS/8Hr


    Max Size: 400x250x200mm

We are engaged in offering our prestigious clients a very highly premium quality range of Automatic Block Making Machines. It has been

certified by CE, SGS, TUV, and the like. Our automatic block machine has been approved by Bureau Veritas, TUV CERT.

Features of Automatic Block Machine:
1. Mainframe
The automatic block making machine applies the high-strength structural steel and special welding technique for its mainframe. The

firmness of the mainframe allows the whole machine to come with good rigidity and vibration resistance.

2. Guide Pillar
The guide pillar of this automatic block machine applies the ultrastrong special steel. By virtue of the chromate plated treatment, it

perfectly resists torsion and abrasion. Additionally, the four guide pillars together with the ultra-long guide bearing make the pressure

head and mould move accurately. This moving system adopts the special device that is good for lubrication, thus avoiding abrasion.

3. Material System
The crane of the material automatic block machine is controlled by the hydraulic system. That its hopper is connected to the crane

by the rubber spring, can offer favourable damping effect while preventing the vibration compaction of the remained materials. In the

system, the hopper is equipped with a door which can help realize the uniform material distribution.

4. Material Distributing System
In this system, the material storage and distribution are independent from each other. The material receiving in the material box is

accurately controlled. Under the function of the powerful centrifugal force, the material is speedily and evenly distributed.

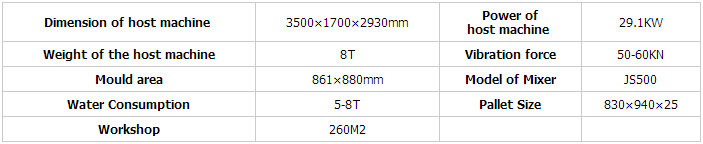

Main technical Parameters of SQT6-15B Automatic Block Machine:

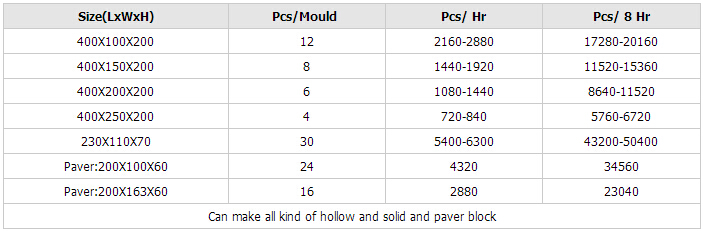

Theoretical Production Capacity of SQT6-15B Automatic Block Machine:

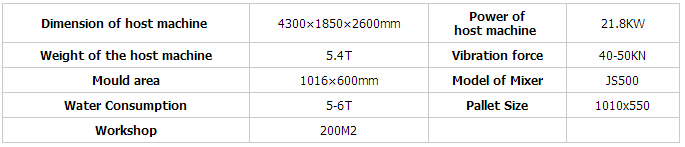

Main technical Parameters of SQT5-15 Automatic Block Machine:

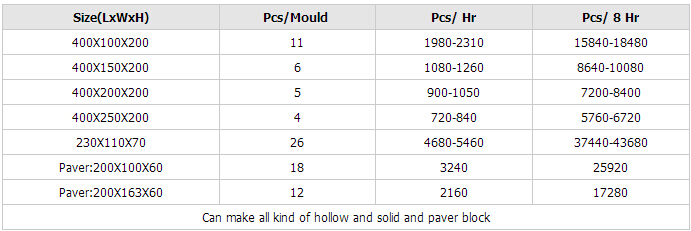

Theoretical Production Capacity of SQT5-15 Automatic Block Machine:

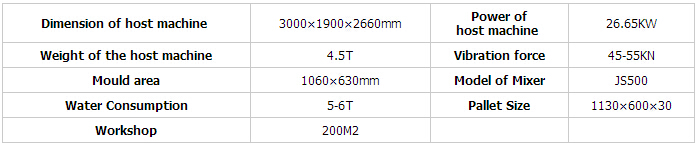

Main technical Parameters of SQT4-15B Automatic Block Machine:

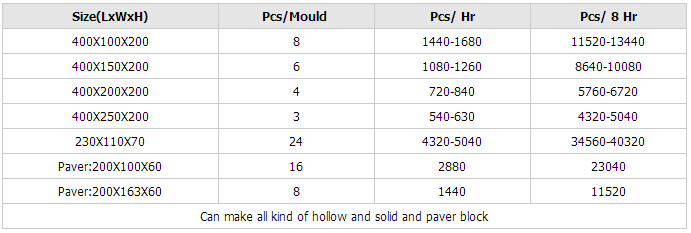

Theoretical Production Capacity of SQT4-15B Automatic Block Machine:
