Roofing and Ceiling

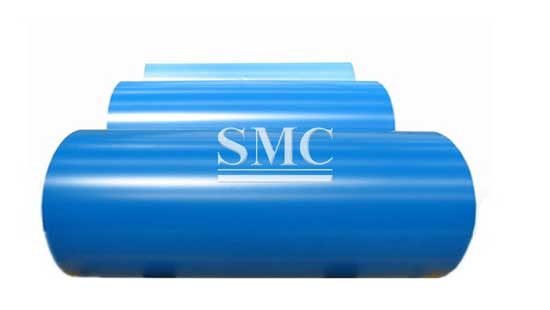

AZ150 +PVDF Prepainted Aluzinc Steel For Roofing

    Standard: JIS3321/ASTM A792M



    Thickness: 0.15mm - 1.2mm



    Width: 600mm - 1250mm

Specifications of AZ150 +PVDF Prepainted Aluzinc Steel:
1) Capacity: about 10,000 ton per month for aluzinc steel
2) Standard: JIS3321/ASTM A792M
3) Thickness: 0.15mm - 1.2mm, all available
4) Width: 600mm - 1250mm, all available
5) Length: according to the customer's request
6) Coil ID: 508/610mm
7) Hardness: Soft
8) Coating: AZ150
9) Color series: RAL color
10) Min trial order: 25 ton each thickness, 1x20' per delivery


Product Description for Roofing:

1) Standard: AISI, ASTM, BS, DIN, JIS

2) Normal thickness: 0.16mm - 1.2mm

3) Width: 600mm - 1250mm

4) Zinc coating: 40g/m2-275g/m2

5) Colors: RAl Colors, Marble, Wood grain, Bricks, Camouflage pattern, etc. As customers' requirements.

6) Surface coating: PE, SMP, HDP, PVDF

7) Warranty: 5-25 years



Manufacturing of AZ150 +PVDF Prepained Aluzinc Steel

Pay off reel Double cut shear Welder-notcher Entry accumulator Pre-cleaning section Furnace Hot bridle Zinc pot Air knife After cooler Water quench Dryer Skin pass mill Dryer Tension leveler Dryer Chemical coater Chemical oven Cooler Exit accumulator Oiler Exit shear Tension reel



Shanghai Metal Corporation is an international manufacturer and supplier for Prepainted Galvanized Steel Coil. We have two prepainted lines based on galvanized steel coil. Our monthly output for each line is approxiamtely 5,000 ton.



Production Facility of AZ150 +PVDF Prepained Aluzinc Steel:

Pay-off Section

The operating principles and functions are similar to the galvanizing process, except that it uses a joiner to fasten the steel sheets together.

Clean, Pre-treatment and Chemical Coating

The GI coil is cleaned at the degreaser tank, where oil and dust are removed by chemical means. The white rust formed on the surface can be removed at the brush assembly. The clean coil will then be coated with conditioner and chromate at the conditioner and chromate tank respectively, to provide better adhesion and corrosion resistance ability.

Prime and Finish Coating

A basic layer of paint, called primer, is applied on the chemical coater in order to strengthen the corrosion resistance and paint adhesion ability. The requested colours and specifications of paint will be applied at both the top and bottom of the primer coated coil to complete the painting work.

Prime and Finish Oven

The primer coating is further cured at the primer oven and cooled at the primer water quench to ensure the painted coil is completely cured. Similarly, the finish oven and finish water quench also serve to ensure that the paint applied is completely cured and cooled.

Packaging of AZ150 +PVDF Prepained Aluzinc Steel

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of AZ150 +PVDF Prepainted Aluzinc Steel:

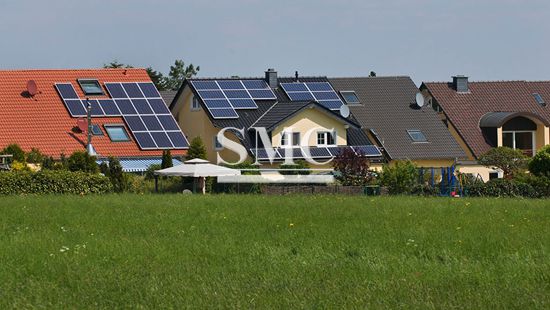

It is ideal for a wide range of applications, especially when superior atmospheric resistance is required, such as pre-engineered buildings, architectural panels, roofing, siding, cladding, and many other building components.
