Mooring Equipment

Chain Cable Stopper

    Type: GB290-84



    Weight: 8.6 kg~663.7 kg



    Certificate: CCS, ABS, LR, GL, DNV, NK, BV, KR, RINA, RS

Product Detail

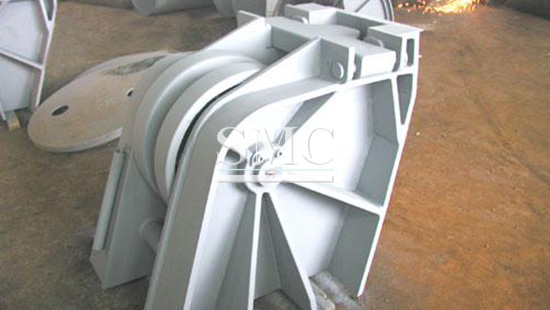

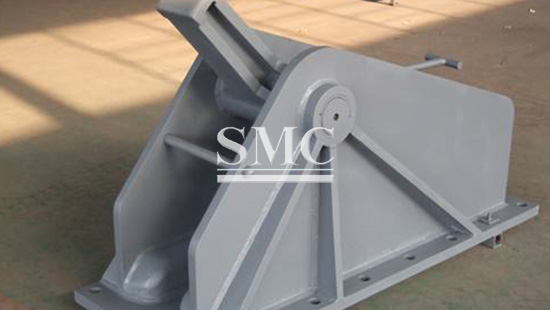

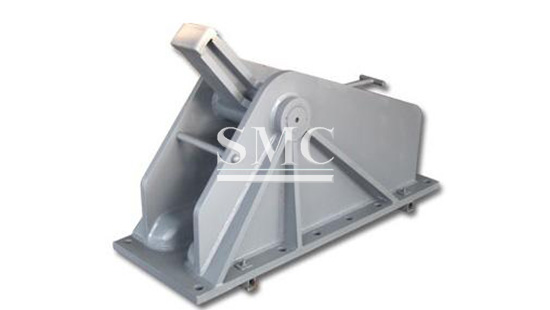

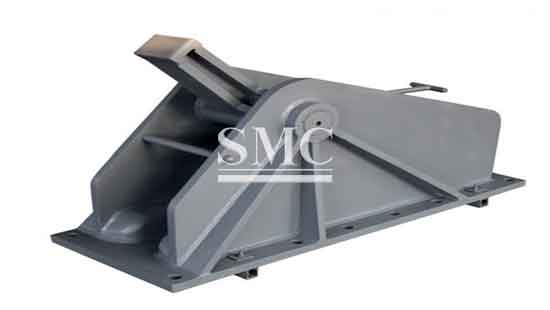

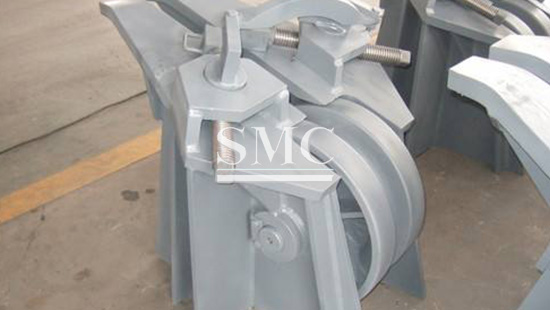

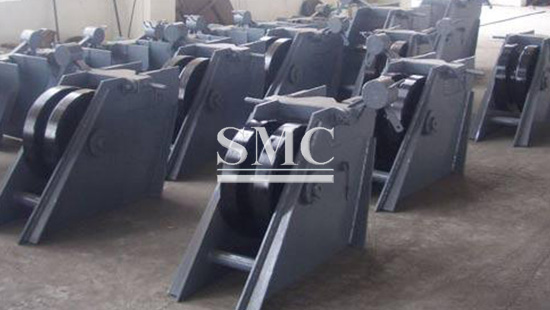

Here we provide small-sized cast steel bar type chain cable stoppers. They control anchor chains when necessary. Shanghai Metal Corporation has experience in producing marine equipment with international certificates. If you have any special request, please contact us!


Specification of JIS F 2023-1976
1) Nominal Number: 19~36
2) Nominal Diameter of Anchor Chain : 17mm~36mm
3) A: 190mm~342mm
4) B:270mm~490mm
5) C: 200mm~354mm
6) D:134mm~246mm
7) Weight: 17 kg~92 kg

Specification of JIS F 2015-1987
1) Nominal Number: 40~78
2) Nominal Diameter of Anchor Chain : 38mm~78mm
3) A: 378mm~715mm
4) B:540mm~1020mm
5) C: 390mm~720mm
6) D:336mm~617mm
7) Weight: 111 kg~682 kg







Packaging and Delivery

Packaging material: standard exporting wooden case

Delivery detail: depend on the quantity of your order



Surface Treatment

Polished, galvanized or bitumen painted



Quality of Chain Cable Stopper

Shanghai Metal Corporation is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.



Other mooring equipment

We provide marine anchors: Hall Anchor; U.S.N. Stockless Anchor; Japan Stockless Anchor; We guarantee they are of the same best quality.

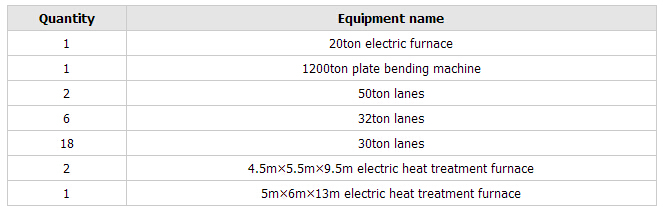

The company is fully equipped with production facilities, including:

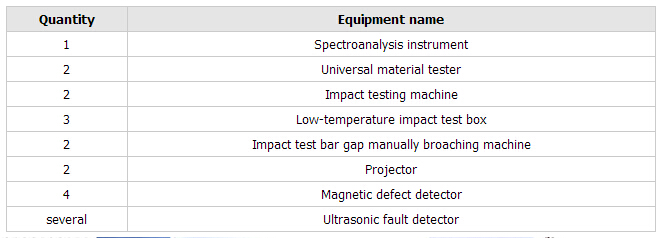

Meanwhile, the company is well-equipped with state-of-the-art testing facilities, including:
