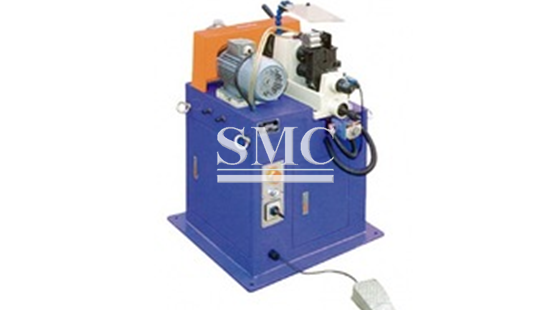

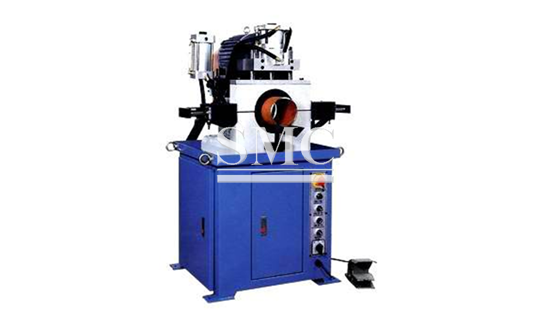

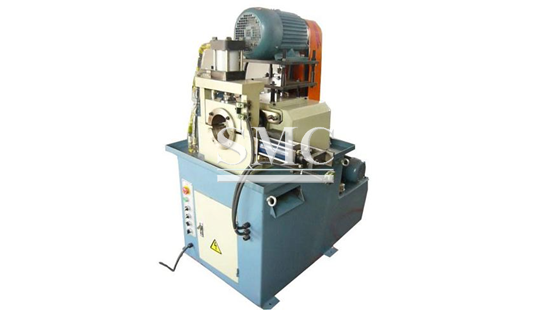

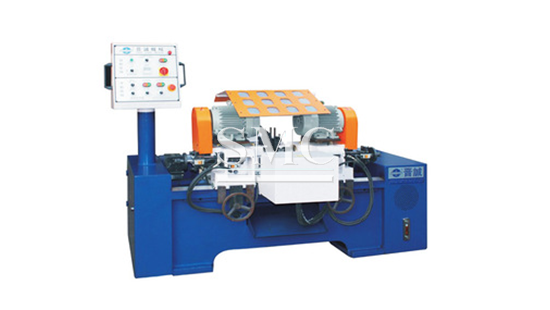

Chamfering Machine

    Type: Pneumatic type



    Machine size: 870x750x1400 mm



    Machine weight: 380 kgs

Products detail:
Chamfering machine is controlled by pneumatic. Feeding / retracting and clamping by pneumatic, loading by hand.  It has 2-step feed speed. The first step feed is high speed, then the second step feed speed is adjustable to produce clean and smooth cutting results. Changing sizes of cut are conveniently made by simply adjusting and changing cutter head and clamp. With Taiwan core tech since 1989.


Specification:

Country of Origin: China (Mainland)
Brand Name: SMC
Condition:  New
After-sales Service Provided: Engineers available to service machinery overseas
Color: Blue or customized
Special accessories: different sizes of fixtures

Speed: Adjustable

Technical data:

Type: Pneumatic type

Capacity: Pipe  Φ19 - 120 mm; Bar   Φ19 - 60 mm

Cutterhead: Φ25- 120 mm

Spindle Motor: 3 HP x

Spindle Speed:  600/800/1200/1600  Round/min

Air Pressure: 6-8 kg/cm2, 120 ml/min, 0.6-0.8 Mpa

Machine size: 870x750x1400 mm

Machine weight: 380 kgs

Automatic lubrication system

Pipe material: steel, iron, stainless steel, aluminum, bronze, non-ferrous metal, plastic and graphite fiber

Application:

Used for the pipe and bars chamfering with automatic feeding, can meet the requirements of smooth and uniform bevel edge,



Features:

1. Manual feeding, Automatic clamping the pipe/bar; also can choose the feeding equipment

2. Automatic advance and retreat  of tool;

3. It is suitable for chamfering steel pipe,Iron pipe, stainless steel pipe, aluminium pipe
