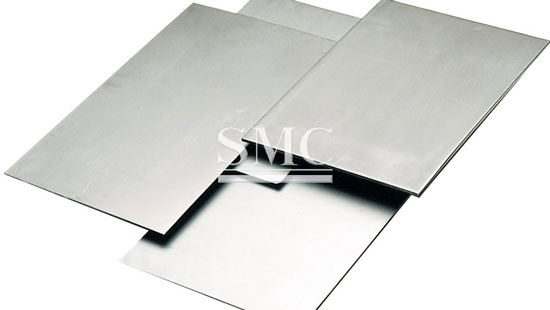

Clad Plate For Box Packaging

    Thickness: 2mm - 15mm



    Width: 100mm - 4500mm



    Length: 1000mm  - 12000mm

Specifications of Clad Plate:
The clad plate is combined and processed by the explosion welding, which is widely used in the construction and manufacturing of the pressure vessel, heat exchanger, reactor, various tanks, etc.

In order to get resistance to the corrosion, heat or wearing, the stainless steel (titanium, nickel & nickel alloy, copper & copper alloy, etc.) cladding material is explosively welded to the relatively inexpensive carbon steel. One side has sufficient strength to the high pressure and the order side has excellent resistance performance to the heat and corrosion, what is more, the clad plate can decrease the construction cost.


Materials of Clad Plate:
1) Stainless + Carbon steel
2) Copper + Aluminum
3) Copper + Stainless steel
4) Aluminum + Stainless steel
5) Titanium + Carbon steel


Production Standards:
1) Thickness of clad plate: 0.5mm - 10mm
2) Thickness of base plate: 3.5mm - 190mm
3) Width of clad plate: 100mm - 4500mm
4) Length of clad plate: 1000mm  - 12000mm

Types of forming:
1) Single side cladding
2) Two sides cladding
3) Shape of clad plate
4) Upon to customer’s request

Smart combination of properties

Clad plate is a multi-layer plate which combines a carbon or low alloy steel plate (backing or backer) with a thin layer of corrosion resistant grade (cladding or clad).

Cost effective solution

Selecting clad plate can reduce equipment weight, fabrication time and material cost.

High Performance solution

Clad plate combines the high mechanical properties of the backing and the high corrosion resistance of the cladding. Backing is supplied with Normalizing (N) or Quenching with Tempering (QT) heat treatment.

Reliable solution

Thanks to high temperature and high rolling force, the hot-rolled bond process guarantees the integral metallurgical bond between the cladding and the backing.

Our clad plates can be used for pressure vessel and for structural applications where combining fabrication procedures and corrosion resistance is of prime importance.

Our strengths

Industeel produces “Normalized” as well as “Quenched and Tempered” clad plates

Excellent in-service properties, in particular in sour service (Hydrogen Induced Cracking resistance)

Sharpened chemistry to optimise the welding and forming behaviour

Excellent toughness in Heat Affected Zone


Packaging of Clad Plate

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
