Copper & Brass Bar/Rod

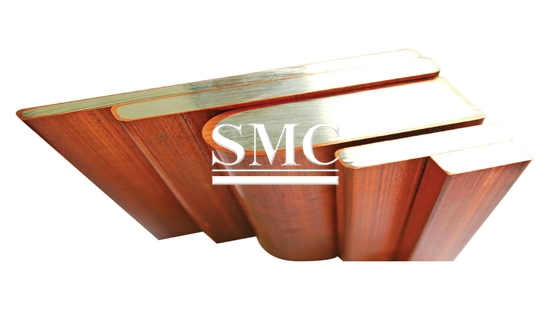

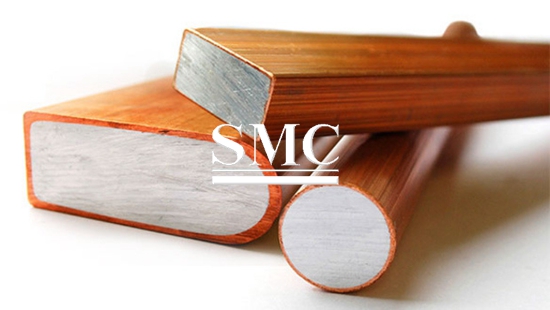

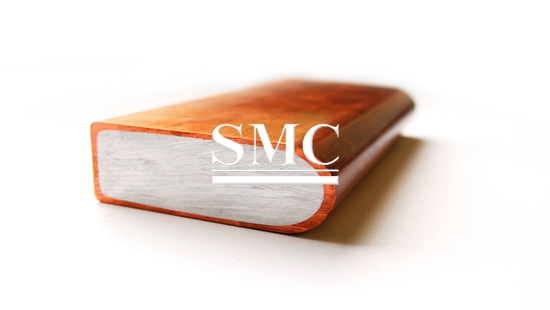

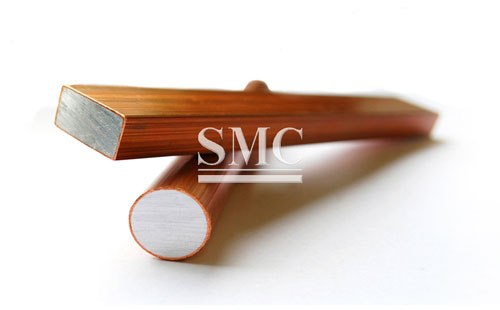

Copper Clad Aluminum Busbar(CCA)

    Width: 30mm-200mm



    Thickness: 3mm-12mm



    Volum ratio: copper20%,aluminum80%

Specifications of Copper Clad Aluminum Busbar(CCA):

1.Width:30-200mm

2.Thickness:3-12mm

3.Volum ratio:copper20%,aluminum80%

4.Standard:DL/T247

5.Grade:T2 copper -copper content ≥ 99.95% 1070 aluminum--aluminum content ≥ 99.85%

6.Temper:annealed & hard drawn


Features for Copper Clad Aluminum Busbar(CCA):
>High bonding strength
>Deep-processed:bending, drilling and stamping
>Reliable service life
>Good conductivity
>Cost-saving

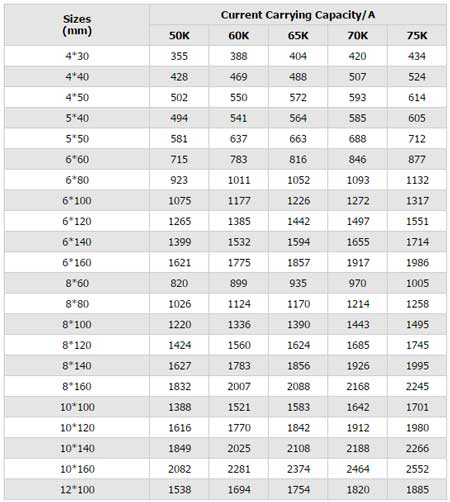

Parameter of Copper Clad Aluminum Busbar(CCA):

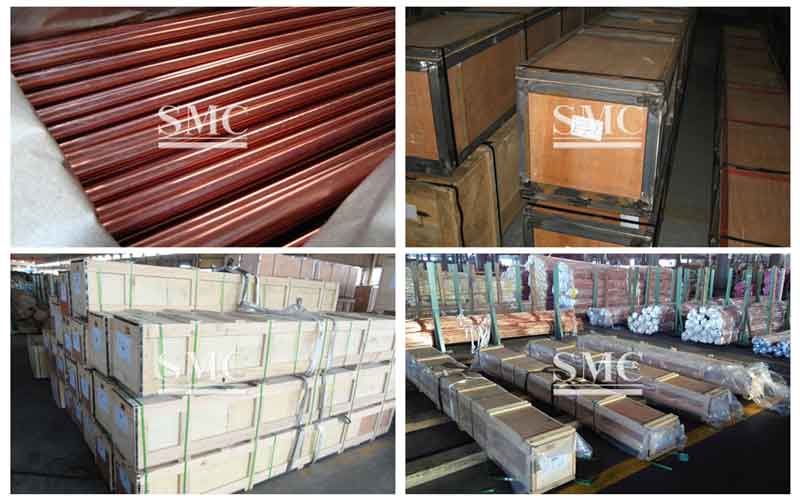

Packaging of Copper Clad Aluminum Busbar(CCA):

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization

Applications for Copper Clad Aluminum Busbar(CCA):

1 Conductive materials

   1) contact washer

   2) conductive connection plate

   3) high and low-voltage power distribution unit

2 Thermal conduction materials

   1) container plate

   2) heat resistant tableware

   3) sorts of heat radiators

3 Decoration materials

   1) curtain wall

   2) copper door

   3) etching

etc.
