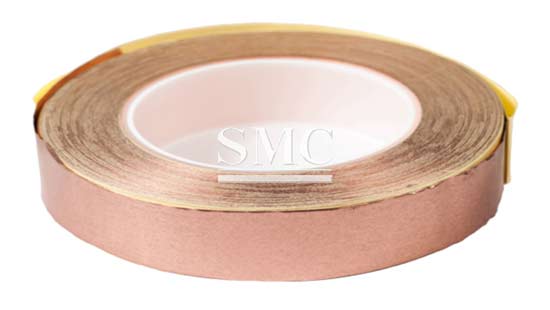

Copper Clad/Coated Steel Strip for Capacitor (CCS Strip)

    Thickness: 0.2mm - 2.5mm


    Width: no more than 580mm


    Material: C11000 (T2)

Specifications of Copper Clad/Coated Steel Strip:
1) Copper Grade: C11000 (T2)
2) Brass Grade: C27000 (H65), C22000 (H90)
3) Width: T2(copper): w≤580mm
4) Thickness: 0.2mm - 2.5mm
5) Tolerance of Thickness (Δ1):
δ≤0.5mm, Δ1=0.04mm
1.0mm≥δ>0.5mm, Δ1=0.06mm
δ>1.0mm, Δ1=0.08mm
6) Width: T2(copper): w≤580mm
                H65(Brass): w≤450mm
7) Tolerance of Width (Δ2):
w≤200mm, Δ2=0.5mm
400mm≥w>200mm, Δ2=0.8mm
w>400mm, Δ2=1.0mm
8) Inner Diameter for Coil: 508mm/250mm/100mm
9) Outside Diameter for Coil: no more than 1400mm

10) Length for Sheet: 450mm - 800mm


Copper Steel Composite Strip:

1) Clad material: brass H90/C22000/CZ101
2) Basement material: common carbon steel/Q195
3) Thickness: 0.2mm - 2.0mm
4) Width: 25mm - 470mm
5) Temper: as required
6) Applications: bullet shell, interior decoration, game coins, etc.

Chemical Composition:



Manufacturing of Copper Clad/Coated Steel Strip

We use sand paper to polish the surface of copper and steel. Then, mill imposes 130T pressure on the copper and steel to make them cohesive. Next step is the anneal procession, in which big annealing furnaces are applied. Finally, slitting machines slit large coils into the strips you want.

Packaging of Copper Clad/Coated Steel Strip

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Copper Clad/Coated Steel Strip:

1) Bullets

2) Cartridges

3) Electronic stamping

4) Electronic hardware

5) Decoration

6) Radiators

7) Drawing parts

8) Covering parts

9) Connectors

10) Heat Exchanger

11) USB Interfaces

12) Decorative Contact Chips
