Specifications of Copper Fittings:
1) Material: C1220/TP2
2) Standard: ANSI, EN, BS, DIN
3) Types:Coupling, 90°Elbow, 45°Elbow, 90°Elbow, 180°Return bend,
Reduce coupling, TEE, Reduce TEE, etc.
4) Common pressure: 2.0MPa
5) Working temperature: ≤150°C

Features of Copper Fittings:

1) Good Healthy Quality
2) Long Wearing-Life
3) Anti-Corrosion

4) Safe and Reliable Installation

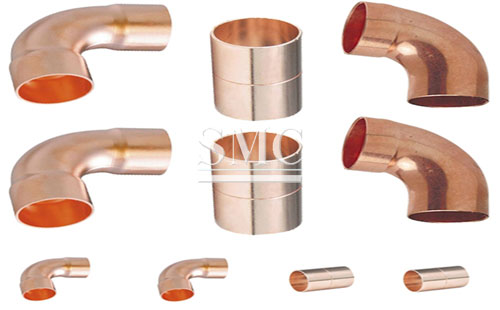

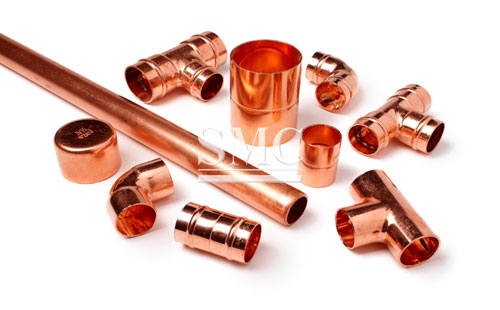

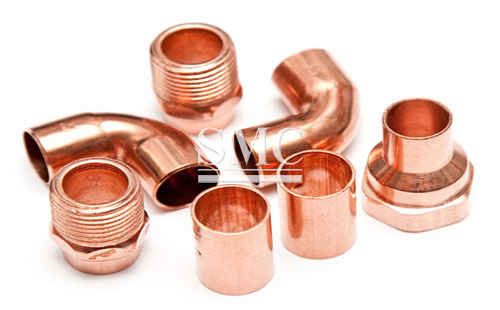

Different types of Copper Fittings:

(more shapes and specifications are accepted)
Coupling

 90° Elbow short radius (C×C and FTG×C)

45º Elbow (C×C and FTG×C)

180º Return bend long radius (C×C and FTG×C)

Reduce Coupling(C×C and FTG×C)

90º Elbow long radius (C×C and FTG×C)'

Reduce TEE (C×C)

TEE (C×C)

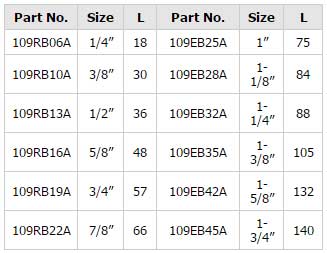

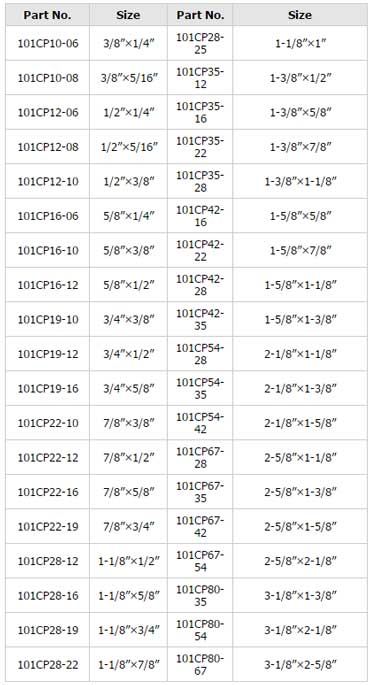

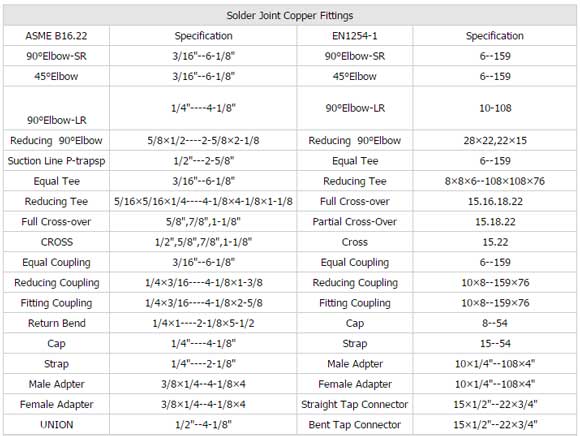

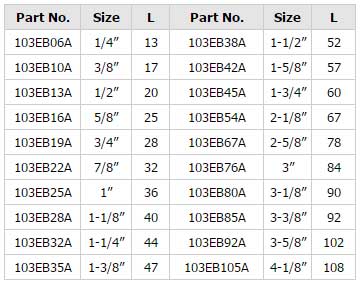

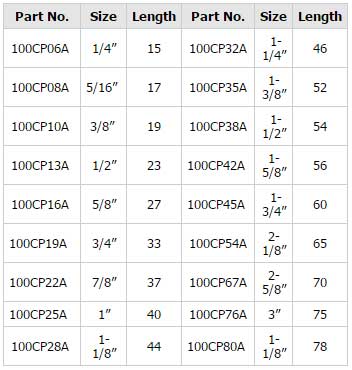

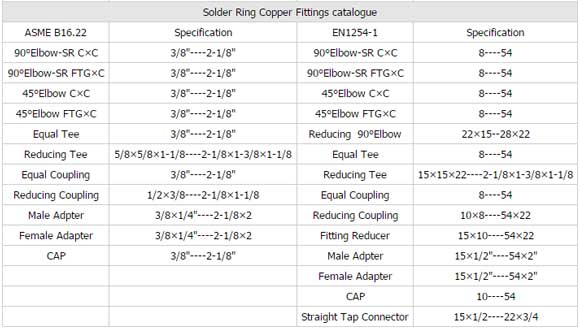

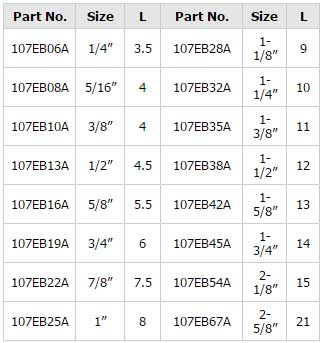

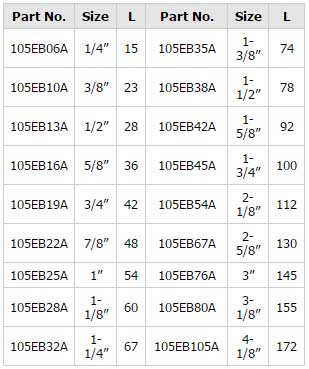

Parameters of Copper Fittings:

Packaging of Copper Fittings

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Copper Fittings:

1) Air pressure pipe

2) Seawater

3) Coldwater

4) Hot water

5) Drinking water

6) Steam

7) Oil

8) Gas

9) Medical gas, etc.

Which are no more than 150°C in temperature.
