Transformer Components

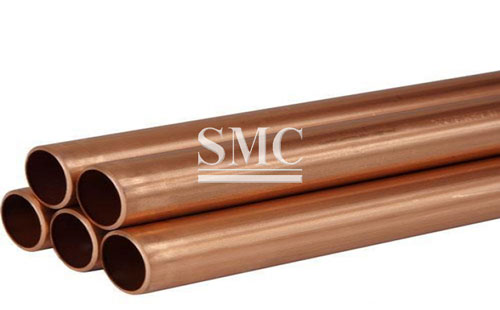

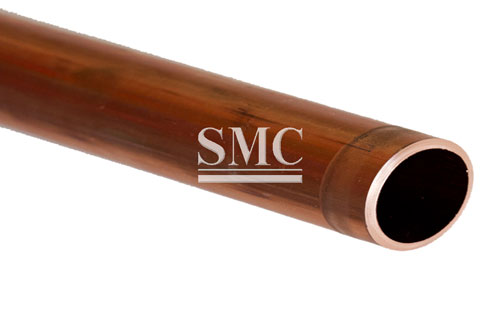

Copper Pipe / Tube--Copper Pipe, Copper Tube for Transformer Components

    Grade: C11000, T2, ETP, C12200, TRP, DHP, C2680, C27200, C27000



    OD: 6.35mm - 120mm



    WT: 0.4mm - 10mm

Transformer copper content> 99.95%. Not allowed to contain scale, oil, coating, paint and other impurities. Do not contain wool,

car, debris and thickness <1mm copper. The advantages and disadvantages of the transformer can be divided into copper

transformer and half-copper transformer, the transformer coil to determine their own loss of size, the greater the loss of their own

output power less, so the use of copper is the best.


Specifications of Copper Tube (Copper Pipe) for Transformer Components

1) OD: 6.35mm - 120mm
2) WT: 0.4mm - 10mm
3) Grade: C11000, T2, ETP, C12200, TRP, DHP, C2680, C27200, C27000, etc.
4) Chemical Composition:Cu >99.90%, P:0.015%-0.040%
5) Temper: O, 1/4H, 1/2H, H
O : HV<70; 1/4H :HV 65-85; 1/2H :HV 80-100; H :HV >100
6) Electric Conductivity at 20℃: C1100 >97% ;C12200 >80%

Manufacturing of Copper Tube (Copper Pipe) for Transformer Components

Packaging of Copper Tube (Copper Pipe) for Transformer Components

SMC Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) SMC Standard

2) Customization


Applications of Copper Tube (Copper Pipe):
1) Natural gas, liquefied petroleum (LP) gas
2) HVAC, snow melting, drain, waste, vent piping
3) Re-drawing usage
4) High conductivity use
5) Cable lugs and terminals
6) Electric connectors
7) Lighting industry
8) Air conditioner and refrigerator
9) Water tube service and distribution
10) Fire protection, solar, fuel/fuel oil


Copper tube (Copper pipe) due to it's superior strength, reliability, easy of maintenance, and excellent heat transfer

characteristics is widely used for air conditioner, refrigerators and heat exchanger, etc.


Aluminum Clad Copper Tube (ACC Tube) and Copper Clad Aluminum Tube (CCA Tube) are two types of new tubes that

were developed by SMC. They were designed to use a new energy-saving material to replace copper conductor applied in air

conditioner, refrigerator, connection tube, fittings, refrigeration tube, inner conductor of RF cable, etc.


Achieving metallurgical bonding between C11000 copper and 3003 aluminum, the ACC tube and the CCA tube fully meet the

requirements of electrical equipment. Compared to oxygen copper tube, ACC tube can help manufacturer saves more than

30% purchase cost and CCA can save more than 40% purchase cost.


We have advanced automatic production line, which can produce more than 100 kinds of CCA and ACC products. We also

accept customization non-standard specifications according customer's requirements. If you are interested in ACC tube,

CCA tube or other Copper tube, please feel free to contact us.
