Enamelled Copper Wire , PTFE Wire

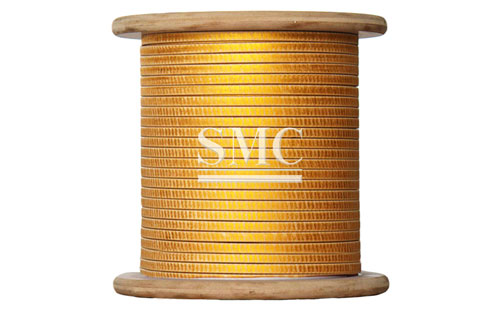

Fiber Glass Copper Wire

    Diameter: a: 1mm - 10mm, b: 1mm - 20mm



    Themal class: 155, 180, 200



    Centification: IEC, NEMA, JIS, BS, DIN, GB

Specifications of Fiber Glass Copper Wire:
1) Diameter: a: 1mm - 10mm, b: 1mm - 20mm
2) Thermal class: 155, 180, 200
3) Certification: IEC, NEMA, JIS, BS, DIN, GB
4) Glass fiber thickness: 20mm, 30mm, 40mm, 50mm

Features of Fiber Glass Copper Wire:
Ultra fine enameled copper wire:
Description of Products
Polyurethane Copper Wire Class 130
UEW/130 MW2-C
Polyurethane Copper Wire Class 155
UEW/155 MW79-C
Polyurethane Copper Wire Class 180
UEW/180 MW82-C

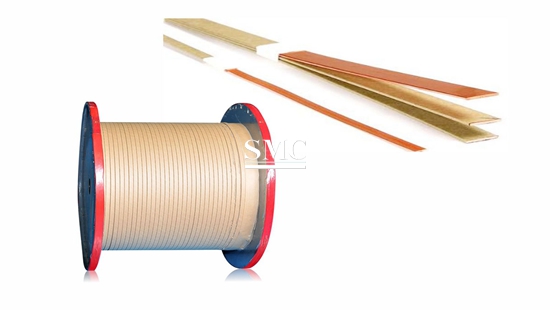

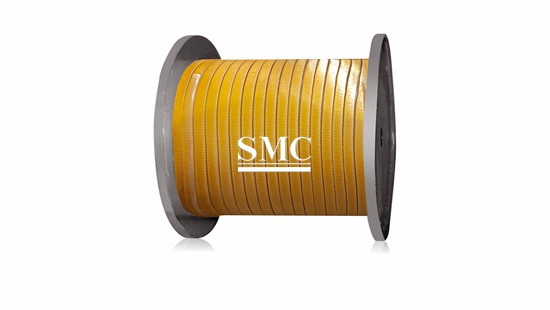

Fiber Glass Enameled Flat Copper Wire
Fiber glass enameled Flat copper wire with the thin insulating layer, excellent thermal stability, electric property and mechanical property, the enameled flat copper wire is the ideal material used for the windings of various large and medium electric machines, equipment, transformers, and various high-temperature resisting and refrigerant resisting electric equipment. It includes thermos table grades of 120, 130, 155, 180, 220.

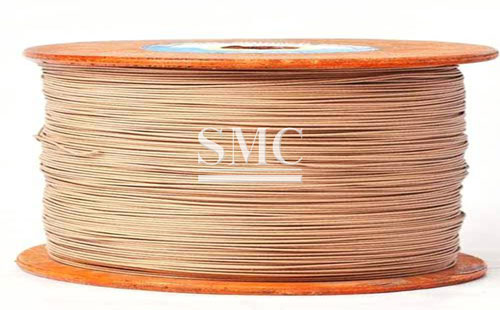

Fiber Glass Covered Round (Flat) Enameled Copper Wire
The fiber glass covered round and flat copper wire is an indispensable conductive material for making the commutate of the DC motor, exciting motor, motor amplifier as well as the special electric contact and coil ring, etc.
Fiber glass copper wire has excellent limpness and tack and resistance to wear voltage, heat shock and overloading, is applied to electrical high-or-low voltage machines and equipment and various air-immersed transformer. It include thermal table grade of: SBE/130, SBE/180, SBE/155.

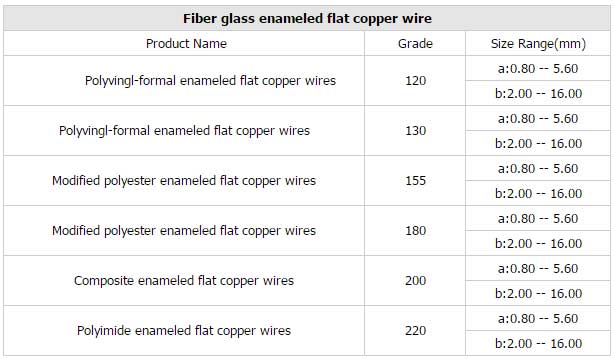

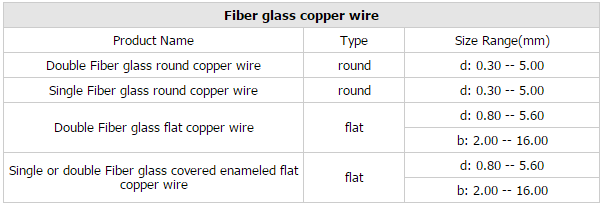

Parameters of Fiber Glass Copper Wire:

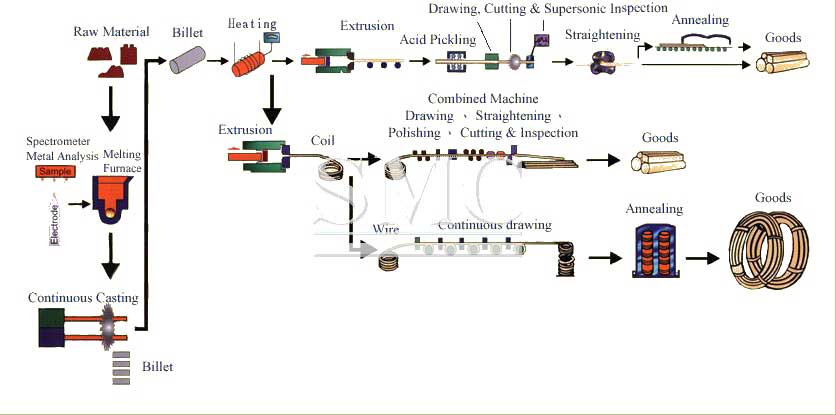

Manufacturing of Fiber Glass Copper Wire

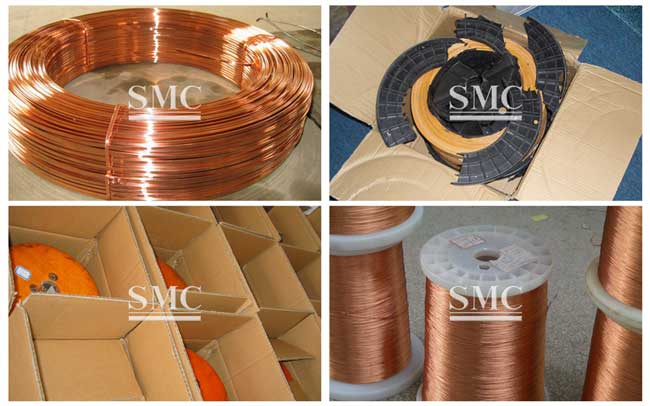

Packaging of Fiber Glass Copper Wire

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Fiber Glass Copper Wire:

1) Commutate of the DC motor

2) Exciting motor

3) Special electric contact

4) Coil ring

5) Internal wire of electronic and electric equipment

6) Lightings

7) Industrial machines

8) Electric heating products

9) Lead wires for home electric appliances

10) Sensors, etc.
