Solar Power Appliance

Full Hard Galvalume Steel Coil for Solar Heater

    Thickness: 0.13mm - 1.0mm



    Width: 750mm - 1250mm, all available



    Coating Weight: AZ50 to AZ185

Specification of Full Hard Galvalume Steel Coil:
1) Capacity: about 10,000 ton per month for galvalume steel
2) Standard: JIS3321/ASTM A792M
3) Thickness: 0.13mm - 1.0mm, all available
4) Width: 750mm - 1250mm, all available
5) Length: according to the customer's request
6) Coil ID: 508/610mm
7) Coil weight: according to the customer's request
8) Coating Weight: AZ50 to AZ185
9) Spangle: regular spangle, small spangle, big spangle

10) Steel Type & Grade:


11) Surface Treatment:

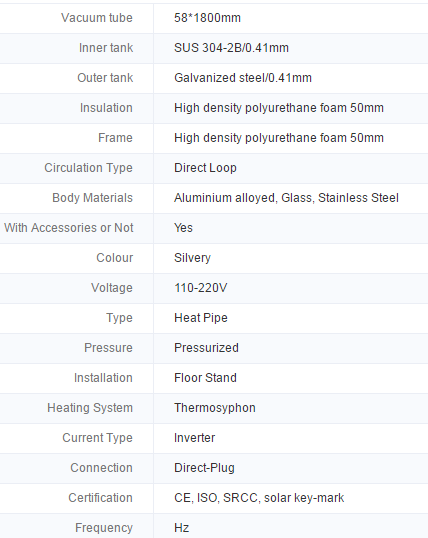

Basic Specification


Working Principle

The selective coating on the inner cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes

by aluminum fins, the liquid in the heat pipe changes into vapour which rises to the condenser. The heat then passes through the heat

exchanger and the vapour becomes liquid, returning to the base of the heat pipe. The heat conducts to the heat transfer liquid (anti-freezing

liquid or water ) via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by

the sun.


Features of Full Hard Galvalume Steel Coil:

1) Composed of 55% aluminum, 43.5% zinc and 1.5% silicon

2) Formable, weldable and paintable

3) Superior corrosion resistance in the most atmospheric conditions. This is achieved through the combination of the sacrificial protection of the zinc and the barrier protection of the aluminum.

4) Coating out-performs galvanized coating from 2-6 times than hot dip galvanized steel

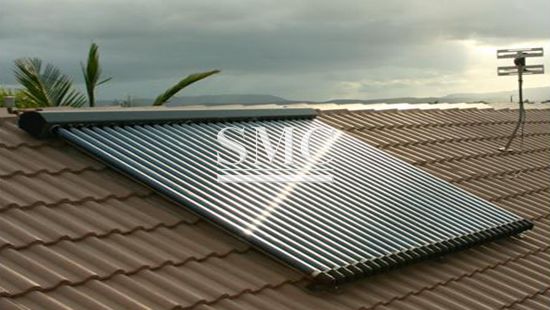

Description of Solar Heater:

1) All machine mental parts is stainless steel and galvanized steel

2) Inner tank: Φ380mm/SUS304-2B/1.2mm. Outer tank: Φ480mm/Galvanized steel/0.35mm

3) It use 50mm of high density polyurethane foam for insulation layer. Heat preservation: 72hours

4) Vacuum tube: 58x1800mm 1.6mm or 2.2mmthickness ALN-SS-CU coating

5) Copper heat pipe inside the vacuum tube, have high conduction performance

6) The bracket is in line with structural mechanics, very stable and solidly build. Dual-purpose for both flat and inclined roof.

7) No water inside the evacuated tubes, the solar water heater can still in service even with several tubes breakage

8) Can be used all year even in the cold climate area



Information of Solar Heater:

1) Name: DIYI Solar water heater

2) Type: Compact and closed system

3) Vacuum tube: high quality borosilicate glass 3.3, with the selective absorber coating

4) Absorbing coatings: Interference coating

5) External diameter of vacuum tube 58mm

6) Length of vacuum tube: 1800mm

7) Inner tank diameter/material: 360mm, 1.2mm , SUS304stainless steel

8) Outer tank diameter/material: 460mm, colorful steel 0.41mm

9) Material of coating: AL-N/AL-Cu and heat pipe inside the tube

10) Insulating layer: 50mm polyurethane

11) Safety valve setting pressure: 6 bar

12) Bracket: stainless steel, galvanized steel plate, aluminium alloy

13) Hail resistance : 40mm

Packaging of Full Hard Galvalume Steel Coil

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Full Hard Galvalume Steel Coil:

1) Construction: roofing, cladding, structural sections, composite panels, etc.

2) Electric appliance: washing machine, refrigerators, toaster, microwave, etc.

3) Others: air duct, lighting, computer casing, etc.



Advantages of Solar Heater:

1) Adopts the best conduction performance metal- heat pipe (copper)

2) Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction

3) No water inside the evacuated tubes, the solar water heater can still in service even with several tubes breakage

4) Can be used all year round in the cold climate
