Solar Power System

High-temperature Solar Collector

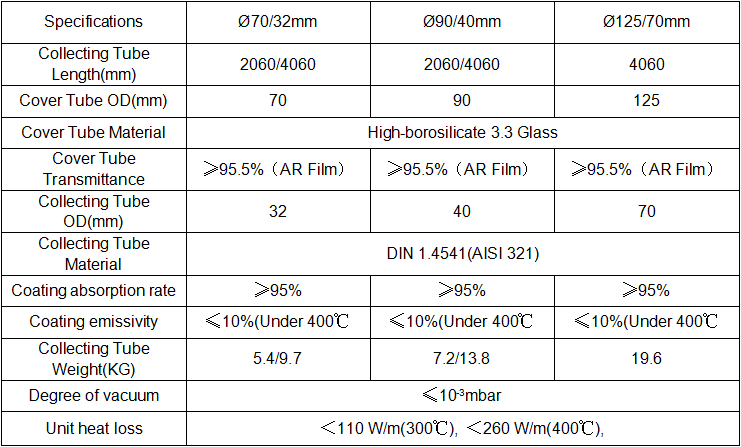

    Specification: Ø70/32mm, Ø90/40mm, Ø125/70mm

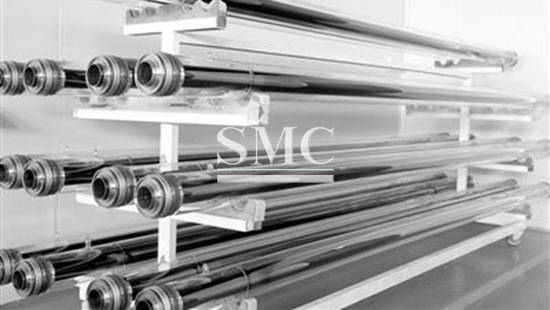

    Components: Cover tube, collecting tube

Mainly six sizes:

70/32mm(2060mm)

70/32mm(4060mm)
90/40mm(2060mm)
90/40mm(4060mm)
125/70mm(2060mm)

125/70mm(4060mm)


Components:

Cover Tube: The use of high-borosilicate glass substrate, sol-gel internal and external anti-reflective coating technology, transmittance up to ≥ 95% or more;

Collecting Tube: The use of high-performance seamless steel pipe, high temperature metal coating, film temperature above 450 ℃, high collector temperature, can run different heat transfer medium。

Usage:

Solar heating and cooling, industrial energy saving, thermal power generation



Applications:

Commonly used in parabolic trough solar thermal power, solar desalination, solar high-temperature heating and cooling, solar boilers, solar industrial drying, solar energy and other industrial fields.
