Highway Guardrail Plate for Cable Guardrail

    Two-wave(mm): 4320×310×85×3/4



    Three-wave(mm): 4320×506×85×3/4



    Anti-collision grade: A/B/SA/SB/SS

Cable guardrail, known as cable barrier, is the mainly type of flexible highway fences for keeping vehicles within correct way.

Three or four high tensile wire ropes are mounted on the post, which is able to absorb the maximum energy by flexing to cushion

the unavoidable impact. Comparing to other steel highway guardrail, this one is relatively cheaper and easy to install with high

efficiency.


Specifications of Highway Guardrail Plate:

1) Product Name: 2016 End Anchor Block for 2&3 lines cable guardrail
2) Steel Grade: Q235 steel, etc.
3) Tensile Strength: 1370MPa, 1570MPa, 1670MPa, 1770MPa ,1870MPa ,1960MPa, 2160MPa
4) Cable Structure: 3x7 18mm, 3x7 19mm
5) Applications: Highway construction, Road Safety, cable guardrail systems, highway guardrail, road barrier, highway cable barrier, highway crash barrier, roadside cable guardrail


Regular Size of Highway Guardrail Plate:

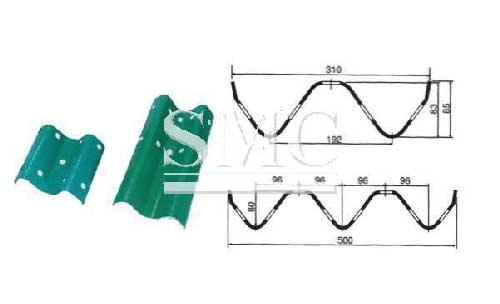

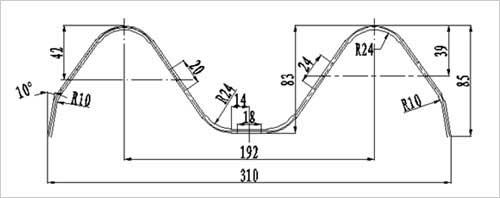

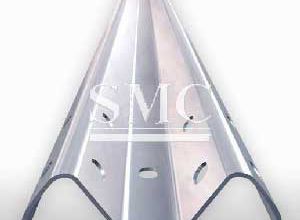

Corrugated steel plate: Two-wave: 4320mm×310mm×85mm×3/4mm

Upright column for two-wave: 114/140mm×4.5mm×height


Three-wave: 4320mm×506mm×85mm×3/4mm

Upright column for three-wave: 130mm×6mm×height, 140mm×4.5mm×height

Anti-collision grade: A/B/SA/SB/SS

Material of Highway Guardrail Plate:
Galvanized Steel & Prepainted Galvanized Steel

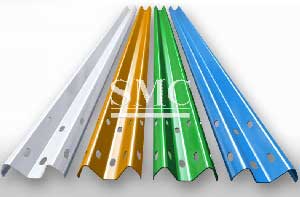

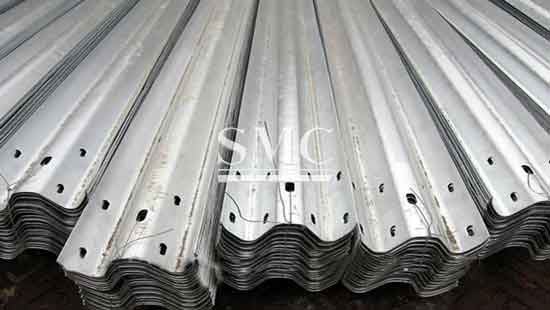

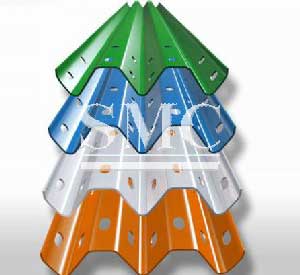

1.Two-wave Corrugated Steel        2. Three-wave Corrugated Steel       3. Prepainted Corrugated Steel

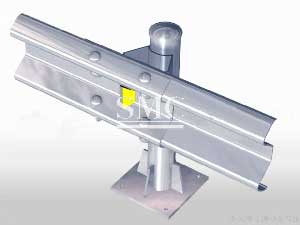

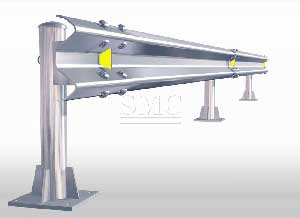

A set of road guard rail consists of: corrugated steel plate, upright column, cap of column and bracket.


Details about Cables:

The cable barriers are manufactured with 3×7 high tensile steel cables (steel wire ropes), the two most commonly used today are 18mm &19mm 3X7 steel cables. A 3x7 steel wire rope has three strands, each strand is made up of 7 identical wire ropes wound around a center. Meanwhile the wire ropes are galvanized for keeping the cable free of corrosion and rusting.

End of 3x7 cable



Cross section of 3x7 cable

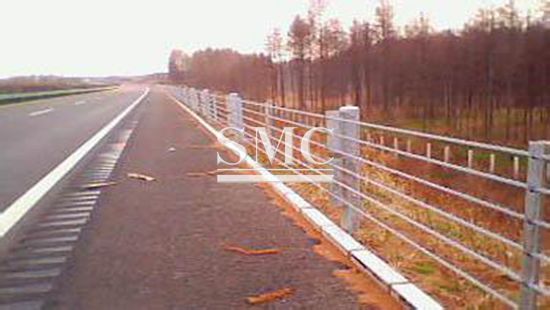

Construction site

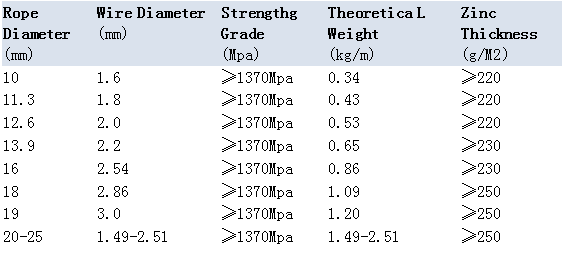

Technical parameters:

Packaging of Highway Guardrail Plate

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Construction & Lays:

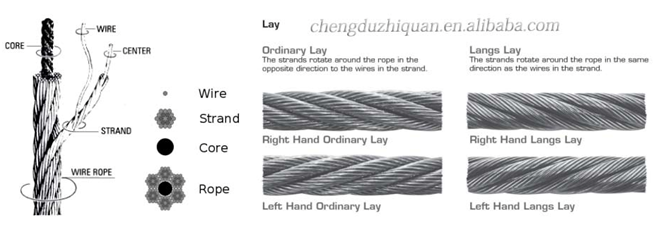

The term lay refers to the direction of the twist of the wires in a strand and to the direction that the strands are laid in the rope.

The four types of lays used in wire rope are as follows:

a) Right Hand Ordinary/Regular Lay  (RHRL)

b) Left Hand Ordinary/Regular Lay  (LHRL)

c) Right Hand Langs Lay  (RHLL)

d) Left Hand Langs Lay  (LHLL)



Main producing process: The cable barriers are manufactured with 3×7 high tensile steel cables (steel wire ropes), the two most commonly used today are 18mm &19mm 3X7 steel cables. 3x7 steel wire rope has three strands, each strand is made up of 7 identical wire ropes wound around a center. Meanwhile the wire ropes are galvanized for keeping the cable free of corrosion and rusting. When the buyers receive the cable guardrail, they just need to install it right.
