Copper & Brass Tube/Tube Coil

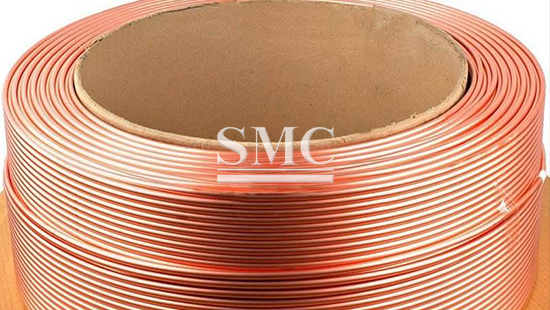

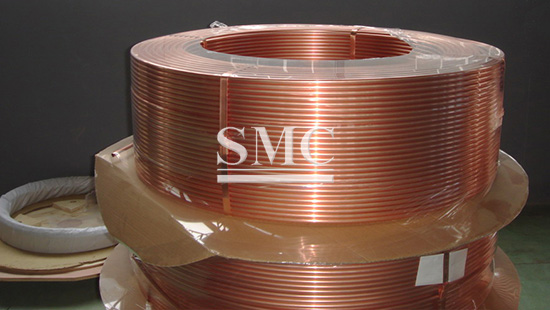

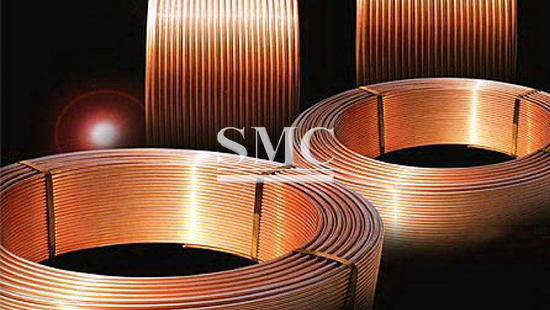

LWC Copper Tube Coil

    Grade: C12200  C10200



    Outside diameter: 4mm - 22.3mm



    Thickness: 0.3mm - 1.5mm



    Coil weight: customized

LWC Copper Tubes feature minimum copper content of 99.9% as per IS-191 and are available in Forged / Hot Rolled / Extruded as well as Cold worked finish in different dimensions and specifications. These are also available in hard, half-hard as well as soft conditions. As the tubes comprise DE-oxidized copper, it is not affected through reducing atmosphere and is well suited for welding and brazing applications.

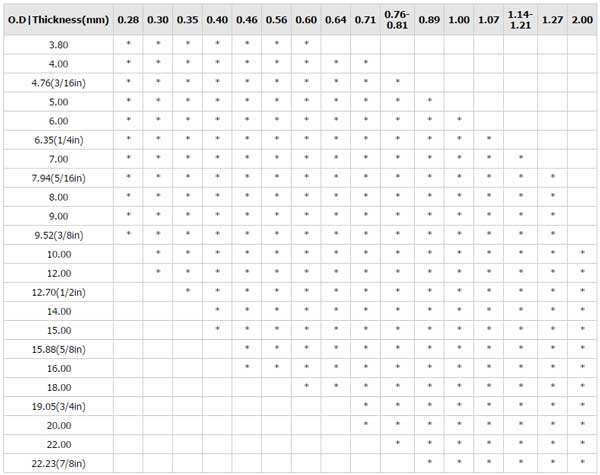

Specifications of LWC Copper Tube Coil:

1) Grade: C11000, C12200, C10200
2) Outside diameter: 4mm - 25.4mm
3) Thickness: 0.28mm - 2.0mm
4) Coil weight: 80kg - 100kg - 150kg - 200kg - 250kg - 300kg - 500kg
5) Temper: soft, half hard soft, half hard, hard
6) Standard: ASTM B-280, EN-12735, JISH-3300

7) Material: Phosphorus DE-oxidized Copper and Oxygen Free Copper



Grade of LWC copper tube coil:
1) Phosphorus Deoxidized Copper
2) Oxygen Free Copper

3) UNS C12200, C10200

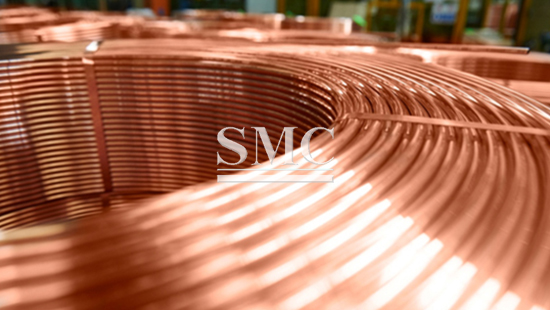

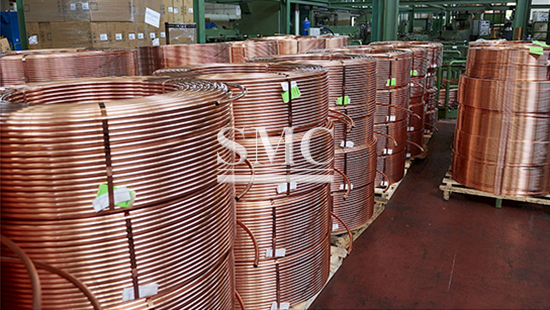

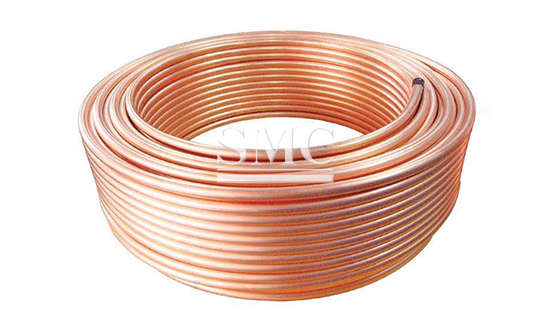

Level Wound Copper Tube Coil for reference only

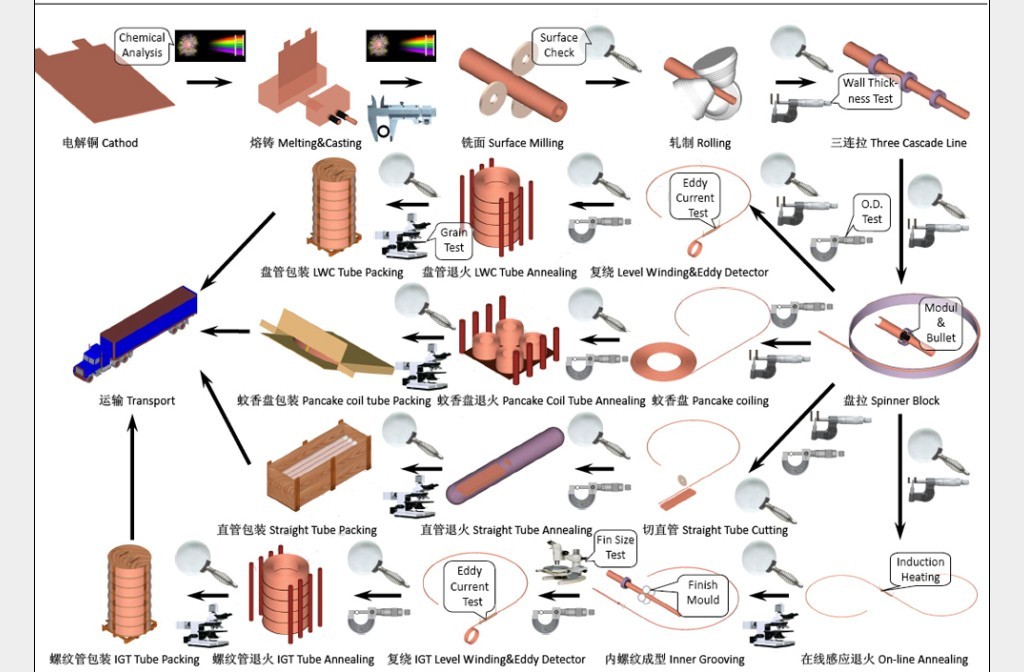

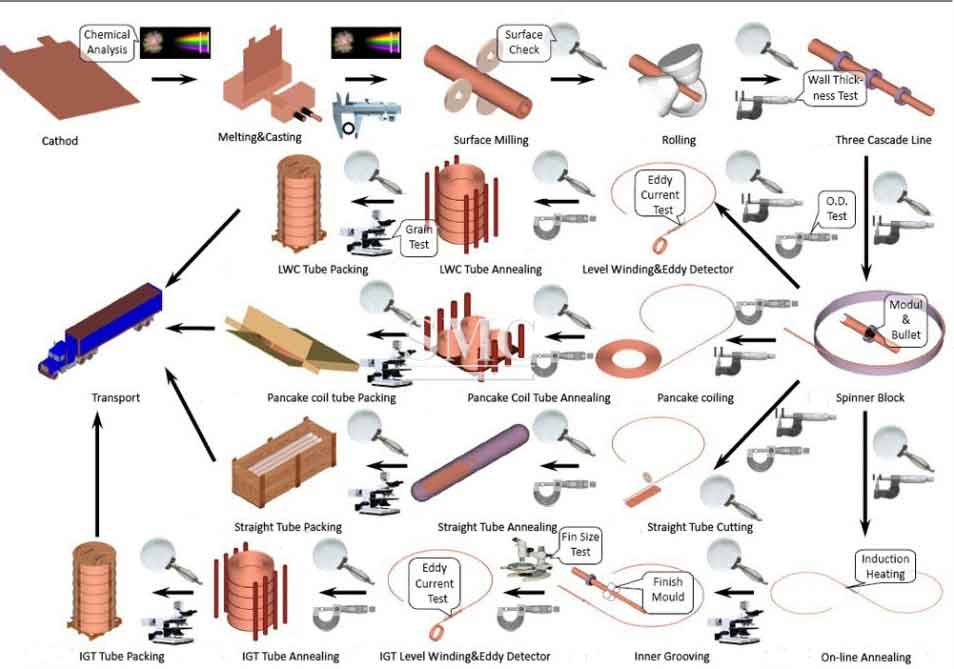

Manufacturing of LWC Copper Tube Coil

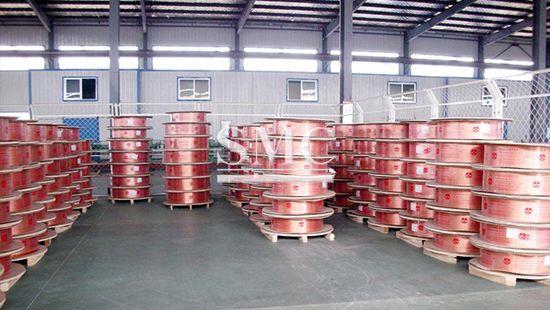

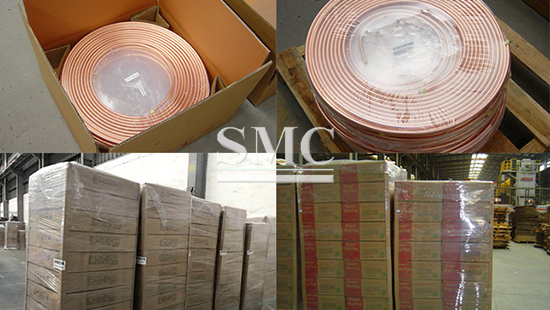

Packaging of LWC Copper Tube Coil

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of LWC Copper Tube Coil:

1) LWC Copper Tube Coil for Air conditioner and refrigerator

2) LWC Copper Tube Coil for Water tube service & distribution

3) LWC Copper Tube Coil for Handling of Fire Protection, Solar, Fuel/Fuel Oil

4) LWC Copper Tube Coil for Handling of Natural Gas, Liquefied Petroleum (LP) Gas

5) LWC Copper Tube Coil for Handling of HVAC, Drain applications

6) LWC Copper Tube Coil for Handling of Waste, Vent Piping needs

7) LWC Copper Tube Coil forRe-drawing use

8) LWC Copper Tube Coil forHeat exchange Use

9) LWC Copper Tube Coil forGas services for heating and cooking

10) LWC Copper Tube Coil forOil services for heating

11) LWC Copper Tube Coil forChilled water and refrigeration

12) LWC Copper Tube Coil for Fire sprinkler systems

13) LWC Copper Tube Coil forAir conditioning

14) LWC Copper Tube Coil for Handling of steam

15) LWC Copper Tube Coil for Medical gases

16) LWC Copper Tube Coil for Pneumatic

17) LWC Copper Tube Coil for Hydraulics
