Mooring Equipment

Marine Anchor: Hall Anchor, Japan Stockless Anchor, U.S.N. Stockless Anchor

    Material: Cast Steel



    Weight: 40 kg~46000 kg



    Type: Hall anchor, Japan stockless anchor, and U.S.N stockless anchor

Product Detail

We provide various marines anchors, including Hall anchor, Japan stockless anchor, and U.S.N stockless anchor. They are the most popular stockless anchors in the modern world.


Specification of Marine Anchor

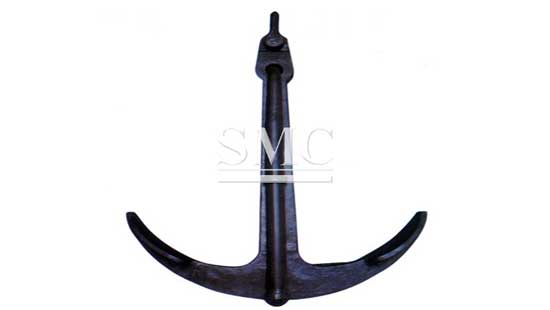

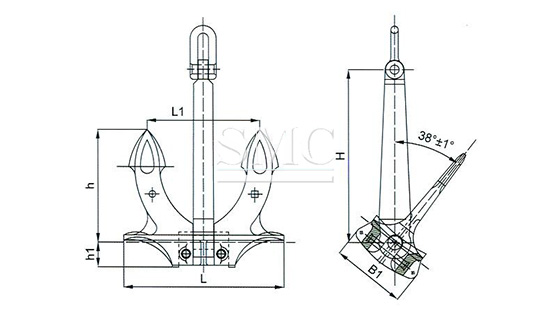

Hall Anchor
1) Nominal Weight: 40 kg~46000 kg
2) H(Type A): 557mm ~5847mm
H(Type B): 557mm ~5847mm
H(Type C): 430mm ~4777mm
3) h: 303mm~3165mm
4) h1:67mm~695mm
5) L: 430mm~4505mm
6) L1:303mm~3165mm
7) B1: 198mm~2078mm

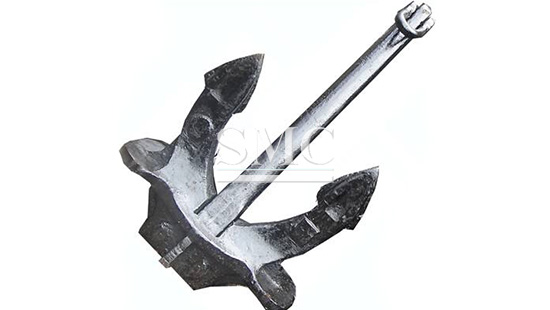

Japan Stockless Anchor
1) Nominal Weight: 180 kg~46000 kg
2) L: 650mm ~4120mm
3) L1: 459mm~2910mm
4) L2:910mm~5770mm
5) H: 111mm~700mm
6) H1:480mm~3040mm
7) B1:280mm~1770mm

U.S.N. Stockless Anchor
1) Nominal Weight: 180 kg~46000 kg
2) L: 650mm ~4120mm
3) L1: 459mm~2910mm
4) L2:910mm~5770mm
5) H: 111mm~700mm
6) H1:480mm~3040mm
7) B1:280mm~1770mm

Hall Anchor
1) Nominal Weight: 40 kg~46000 kg
2) H(Type A): 557mm ~5847mm
H(Type B): 557mm ~5847mm
H(Type C): 430mm ~4777mm
3) h: 303mm~3165mm
4) h1:67mm~695mm
5) L: 430mm~4505mm
6) L1:303mm~3165mm
7) B1: 198mm~2078mm

Japan Stockless Anchor
1) Nominal Weight: 180 kg~46000 kg
2) L: 650mm ~4120mm
3) L1: 459mm~2910mm
4) L2:910mm~5770mm
5) H: 111mm~700mm
6) H1:480mm~3040mm
7) B1:280mm~1770mm

U.S.N. Stockless Anchor
1) Nominal Weight: 180 kg~46000 kg
2) L: 650mm ~4120mm
3) L1: 459mm~2910mm
4) L2:910mm~5770mm
5) H: 111mm~700mm
6) H1:480mm~3040mm
7) B1:280mm~1770mm

The company is fully equipped with production facilities, including:



Surface Treatment

Black bitumen paint, anti-rusting paint or customized









Packaging & Delivery of Marine Anchor

Packaging material: standard wooden case

Delivery detail: in 2 months

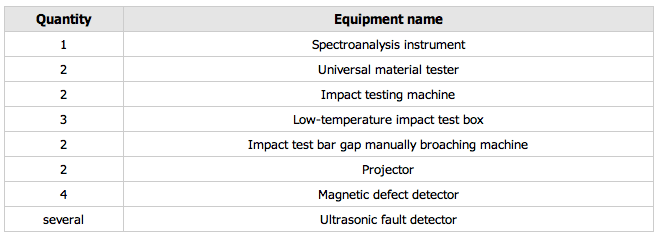

Meanwhile, the company is well-equipped with state-of-the-art testing facilities, including:





Quality of Marine Anchor

Shanghai Metal Corporation is committed to provide superior quality and make products, which are durable, latest, and with improved functionality. We apply the most advanced precision tools to improve quality of products.



Other mooring equipment

We provide other mooring equipment, like Chocks, Panama Chocks, Fairlead Roller, Single-roller fairlead and Bollard. We guarantee they are of the same best quality.
