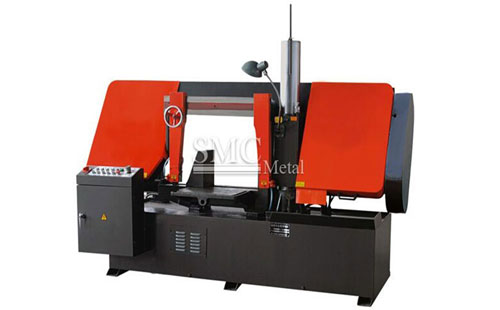

Metal Cutting Machine

Metal Cutting Saw--Metal Band Saw Machine

    Type: Double column



    Maximum Cutting Capacity: 300*500mm to 650*700mm



    N.W /G.W: 1000KGS/1050KGS to 3190KGS/3290KGS

Product Detail

SMC's core business focuses on design, manufacture, supply, installation and after sales services with our highly trained and

experienced technicians and engineers for Double column Type Metal Cutting Saw.

Specifications for Metal Cutting Saw:

1 Model: SMC4230 SMC4235 SMC4240 SMC4250 SMC4260 SMC4265

2 Maximum Cutting Capacity

1) Range: 300mm to 650mm

2) Square: 300*500mm to 650*700mm

3) Rectangle:300*500mm to 650*700mm

3 Motor Output

1) Blade: 3kw to 7.5kw

2) Hydraulic:0.75kw to 1.5kw

3) Coolant: 0.75kw to 1.5kw

4 Vise Control:hydraulic

5 N.W /G.W:1000KGS/1050KGS to 3190KGS/3290KGS

6 Packing Size(L*W*H):2150*1220*1530mm to 3400*1410*1850mm

7 Standard Accessories:

1)Bi-metal saw blades

2)Tool box

3)Manual instruction

4)Feeding table

8 Application:Cutting of Steel Tubes/Plates


Features for Metal Cutting Saw:

1) Full-auto

2) Touch screen type

3) Blade tensioning: hydraulic

4) Blade breakage protection

5) Limit switch for cut power off while the cover opened in case

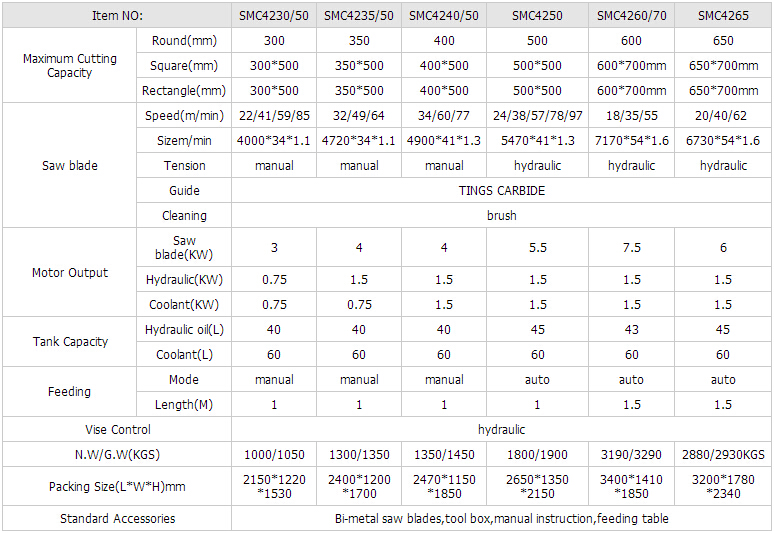

Parameter for Metal Cutting Saw:

Types for Metal Cutting Saw:

SMC4230/SMC4235/SMC4240/SMC4250

1) Double column structure,different size column

2) Hydraulic pincers clamping

3) Reasonable structure for guiding seat ensures correct guiding of the guiding arm

4) Hydraulic control of clamp,stepless adjustment

SMC4260:

1) Double column,double oil cylinder

2) Hydraulic pincers clamping

3) Reasonable structure of guiding seat ensures correct guiding of the guiding arm,extend service life of the band saw blade and increase precession

4) Hydraulically controlled sawing feeding

5) Possible for customized auto feeding

6) Possible for adding the inverter

SMC4265:

1) Double column structure,different size column

2) Hydraulic pincers clamping

3) Reasonable structure for guiding seat ensures correct guiding of the guiding arm

4) Hydraulic control of clamp,stepless adjustment

5) Possible for customized manufacture of automatic tensioning and hydraulic tensioning of saw blade

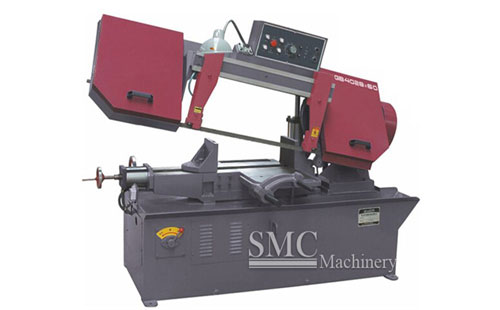

Metal Band Saw Machine #4228 & #4235 New products

#4228 & #4235  mainly used for sawing carbon structural steel, low alloy steel, high alloy steel, special alloy steel and stainless steel, acid steel and other metal materials.


Features of Metal Band Saw Machine #4228 & #4235

1.Cutting speed hydraulic control, stepless speed regulation

2. Better Guide Block Structure, long life of saw blade

3. Double column structure, smooth operation

4. Cutting stability, high precision

5. Work clamping adopts hydraulic clamping, convenient operation

6. Can be customized to three hydraulic clamping device

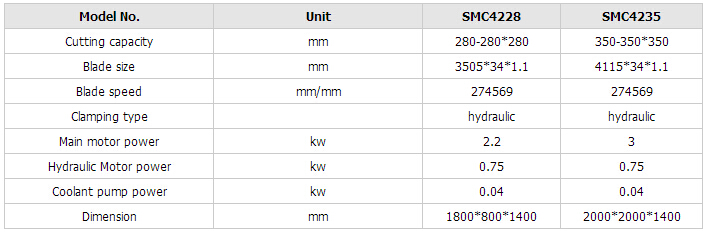

Specification of Metal Band Saw Machine #4228 & #4235



Basic safety principles for Metal Cutting Saw:

1) Wear appropriate safety glasses

2) Ensure the saw has a start/stop button within easy reach of the operator

3) Ensure that all guards are in place and working properly

4) Guard long material at both ends to prevent anyone from coming into contact with it

5) Ensure that the blade is completely stopped before removing the stock

6) Use cutting or lubricating fluid when cutting metals

7) Keep saw blades clean and sharp. Check blades regularly for wear or damage

8) Select the correct blade and saw speed for the material being cut. Follow the manufacturer's instructions

9) Use the stop gauge supplied with most cut-off saws when several pieces of the same length are required

10)Secure all work in a vise. Place the section to be cut such that the saw blade will clear the vise and table; however, do not place the section so far away from the vise that it will be unstable when being cut

11)Support long stock with a floor stand
