Heat Exchanger Pipe

Monel 400 sheet for Heat Exchanger

    Thickness: 0.5mm - 12mm / 12mm - 80mm



    Width: <1000mm / <400mm



    Standard: ASTM B127



    Grade: M400 12Cr3MoVTiB

Monel 400 is a Nickel-Copper alloy, resistant to sea water and steam at high temperatures as well as to salt and caustic solutions.

Monel 400 is characterized by good general corrosion resistance, good weldability and moderate to high strength. The alloy has been used in a variety of applications. It has excellent resistance to rapidly flowing brackish water or seawater. It is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. The alloy is slightly magnetic at room temperature. Monel 400 is widely used in the chemical, oil and marine industries.


Specifications of Monel 400 Sheet/Plate:

1) Thickness: 0.5mm-12mm / 12mm-80mm

2) Width: <1000mm / <400mm
3) Standard: ASTM B127
4) Grade: M400 12Cr3MoVTiB

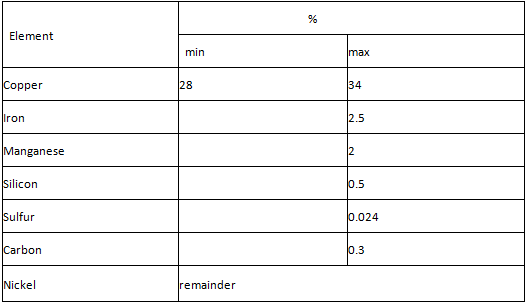

Chemical Composition of Monel 400 Sheet/Plate:


Physical properties of Monel 400 Sheet/Plate:

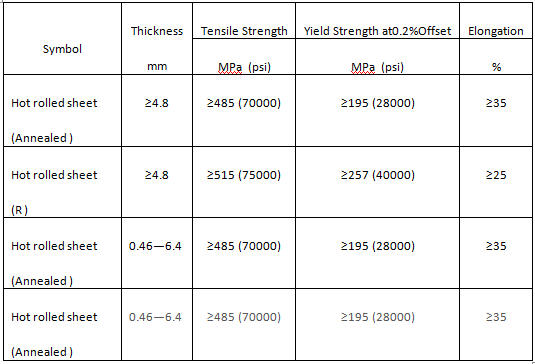

Mechanical properties of Monel 400 Sheet/Plate:



Technical information:

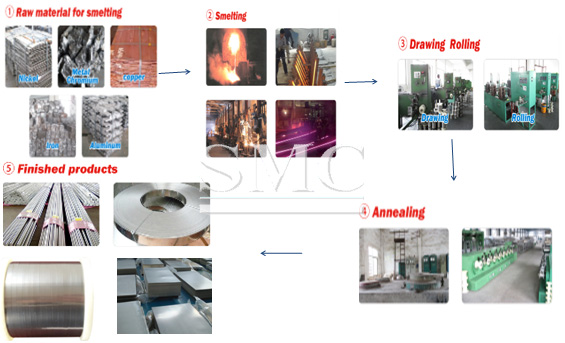

Processing method of Monel 400 Sheet/Plate

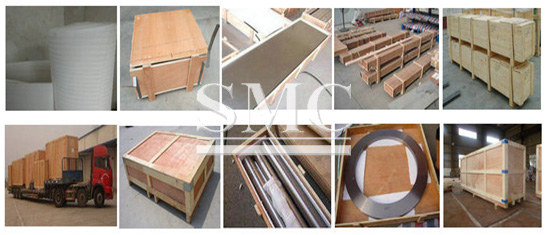

Packaging of Monel 400 Sheet/Plate

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Monel 400 Sheet/Plate:

1) Marine

2) Petrochemical Industry

3) Separation equipment

4) Nuclear

5) Nuclear power engineering equipment, etc.


Advantages of Monel 400 Sheet/Plate:

Monel 400 has good corrosion resistance. Part of the small size of the product mechanical properties are better than the American Standard UNS N04400 index. Application considerations: good mechanical properties, common annealing (stress) machine state materials; special attention should be paid to the shrinkage of machined parts. Welding is used in annealing state, welding, argon arc welding or industry in general welding method welding; if there are conditions, after welding to eliminate stress. The use of explosive welding composite plate, composite surface should be thoroughly cleaned.
