Transformer Components

Non Grain Oriented Silicon Steel for Power Transformer- CRNGO - Cold Rolled Non Grain Oriented

    Thickness: 0.35mm - 0.65mm


    Width: 40mm - 1290mm


    ID: 508mm

Shanghai Metal Corporation is proud to supply high quality Silicon Steel.

We are one of China's leading steel mill manufacturers,

and we promise our customers reliable quality,

quick delivery and excellent post-sales service.


Specifications Non Grain Oriented Silicon Steel:

1) Thickness: 0.35mm, 0.50mm

2) Width: 40mm - 1290mm

3) Inner Diameter: 508mm

4) Coating: Insulation coating of T2, T4, HW, C5 and C6

5) Standard: GB/T2521-1996

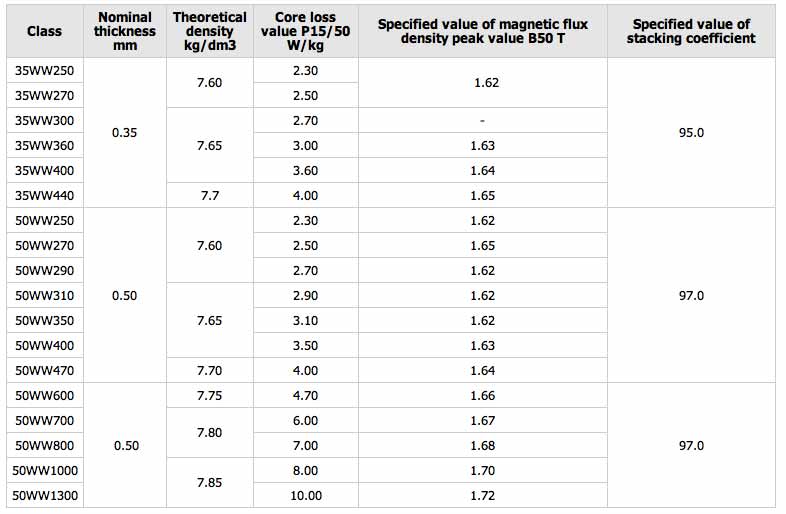

Dimensions of Non Grain Oriented Silicon Steel:

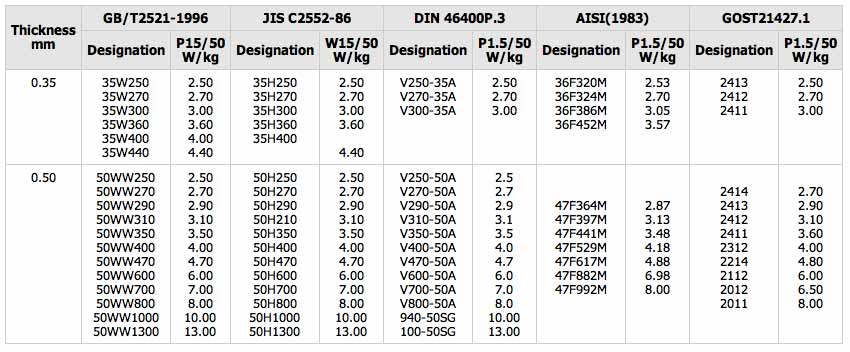

Reference table of Chinese and Foreign Standard:

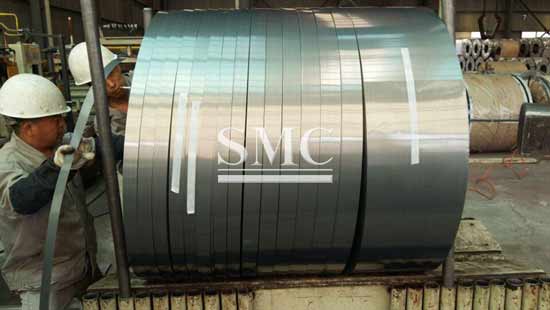

Packaging of Non Grain Oriented Silicon Steel

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Non Grain Oriented Silicon Steel:

1) Electrical equipment of medium and small industrial electric motors

2) Current regulators

3) Compressors for household appliances

4) Power transformers

5) Welding machine transformers


Features of Non Grain Oriented Silicon Steel:

1) Low core loss and high magnetic flux density

2) High dimension accuracy, high surface quality and high stacking coefficient

3) Insulation film on surface, sound insulate on properties and process ability
