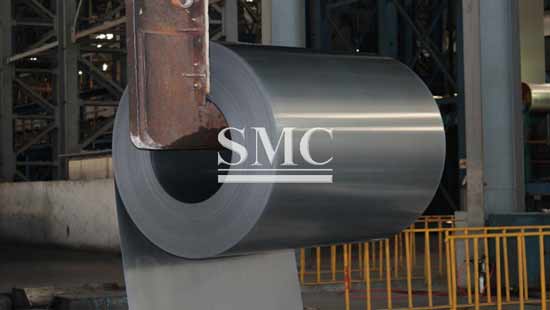

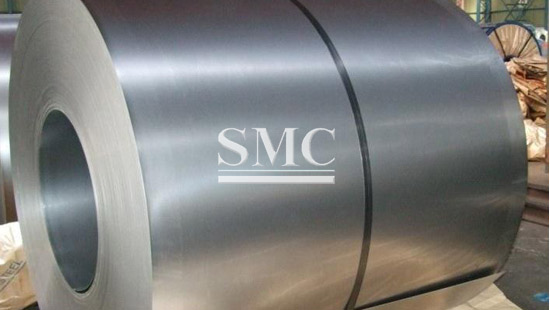

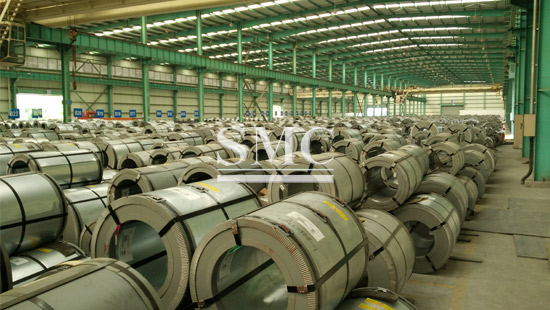

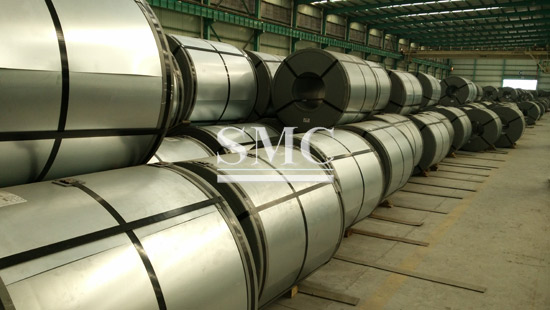

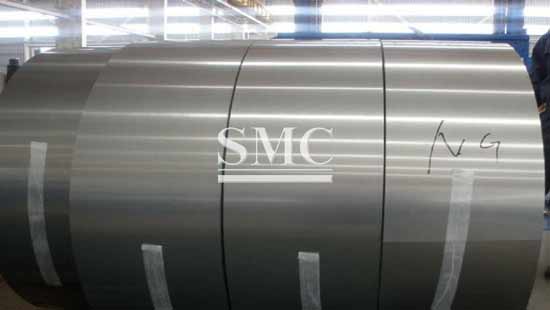

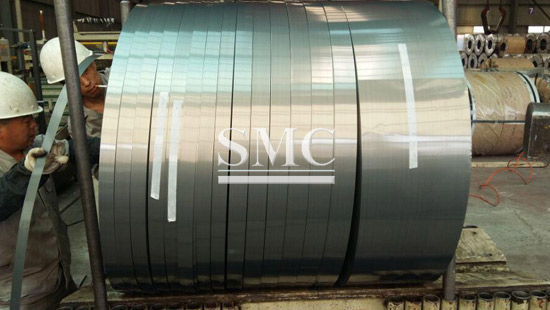

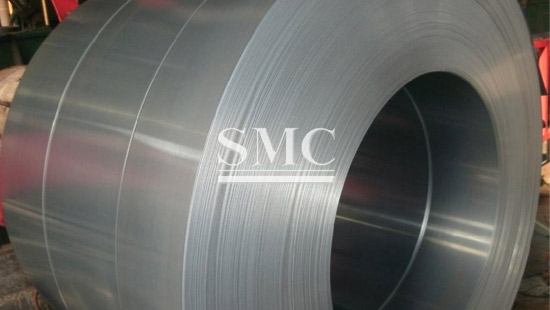

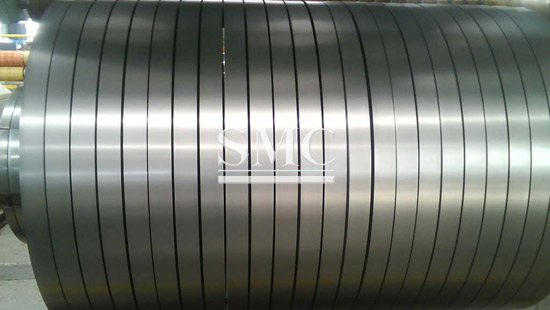

Non Grain Oriented Silicon Steel - CRNGO - Cold Rolled Non Grain Oriented Steel
Thickness: 0.35-0.65mm
Width: 40-1290mm
ID: 508mm
Shanghai Metal Corporation is proud to supply high quality Silicon Steel. We are one of China's leading steel mill manufacturers, and we promise our customers reliable quality, quick delivery and excellent post-sales service.
If you want to know more about Silicon Steel or Silicon Steel price please feel free to contact us, we will reply you within 24 hours
Grade
Thickness mm
Density Kg/dm
Iron Loss（W/Kg）
Induction
50Hz
60Hz
1.0T
1.5T
1.0T
1.5T
2500A/m
5000A/m
35WW230
0.35
7.6
0.78
2.05
1.05
2.65
1.56
1.65
35WW25O
0.89
2.22
1.13
2.8
1.57
1.66
35WW270
0.95
2.4
1.2
2.9
1.57
1.66
35WW3OO
7.65
1.07
2.6
1.34
3.16
1.59
1.67
35WW360
1.21
2.75
1.5
3.31
1.59
1.67
35WW400
1.21
3.I8
1.51
3.4
1.59
1.68
35WW440
7.7
130
3.75
1.61
3.6
1.63
1.71
5OWW27O
0.5
7.6
0.98
2.4
1.27
3.05
1.58
1.67
50WW290
1.06
2.6
1.38
3.22
1.58
1.67
50WW310
1.18
2.75
1.52
3.49
1.58
1.67
5OWW35O
7.65
1.2
2.95
1.53
3.53
1.6
1.68
50WW400
1.28
3.I5
1.61
3.66
1.6
1.68
50WW470
7.7
1.41
3.25
2.05
4.5
1.64
1.72
50WW600
7.75
1.76
3-95
2.42
5.3
1.61
1.69
5OWW7OO
1.87
4.3
2.95
6.4
1.61
1.69
5OWW8OO
7.8
2.18
4.85
3.64
7.68
1.63
1.71
50WWI000
7.85
2.49
5.6
3.92
8.22
1.66
1.74
50WW1300
2.52
5.9
4.27
8.92
1.67
1.75
Dimension of Non-oriented Silicon Steel:
|
Class |
Nominal thickness mm |
Theoretical density kg/dm3 |
Core loss value P15/50 W/kg |
Specified value of magnetic flux density peak value B50 T |
|
35WW250 |
0.35 |
7.60 |
2.30 |
1.62 |
|
35WW270 |
2.50 |
|||
|
35WW300 |
7.65 |
2.70 |
- |
|
|
35WW360 |
3.00 |
1.63 |
||
|
35WW400 |
3.60 |
1.64 |
||
|
35WW440 |
7.7 |
4.00 |
1.65 |
|
|
50WW250 |
0.50 |
7.60 |
2.30 |
1.62 |
|
50WW270 |
2.50 |
1.65 |
||
|
50WW290 |
2.70 |
1.62 |
||
|
50WW310 |
7.65 |
2.90 |
1.62 |
|
|
50WW350 |
3.10 |
1.62 |
||
|
50WW400 |
3.50 |
1.63 |
||
|
50WW470 |
7.70 |
4.00 |
1.64 |
|
|
50WW600 |
0.50 |
7.75 |
4.70 |
1.66 |
|
50WW700 |
7.80 |
6.00 |
1.67 |
|
|
50WW800 |
7.00 |
1.68 |
||
|
50WW1000 |
7.85 |
8.00 |
1.70 |
|
|
50WW1300 |
10.00 |
1.72 |
Reference table of Chinese and Foreign Standard:
|
Thickness mm |
GB/T2521-1996 |
JIS C2552-86 |
DIN 46400P.3 |
AISI(1983) |
GOST21427.1 |
|||||
|
Designation |
P15/50 W/kg |
Designation |
W15/50 W/kg |
Designation |
P1.5/50 W/kg |
Designation |
P1.5/50 W/kg |
Designation |
P1.5/50 W/kg |
|
|
0.35 |
35W250 |
2.50 |
35H250 |
2.50 |
V250-35A |
2.50 |
36F320M |
2.53 |
2413 |
2.50 |
|
35W270 |
2.70 |
35H270 |
2.70 |
V270-35A |
2.70 |
36F324M |
2.70 |
2412 |
2.70 |
|
|
35W300 |
3.00 |
35H300 |
3.00 |
V300-35A |
3.00 |
36F386M |
3.05 |
2411 |
3.00 |
|
|
35W360 |
3.60 |
35H360 |
3.60 |
|
|
36F452M |
3.57 |
|
|
|
|
35W400 |
4.00 |
35H400 |
|
|
|
|
|
|
|
|
|
35W440 |
4.40 |
|
4.40 |
|
|
|
|
|
|
|
|
0.50 |
50WW250 |
2.50 |
50H250 |
2.50 |
V250-50A |
2.50 |
|
|
|
|
|
50WW270 |
2.70 |
50H270 |
2.70 |
V270-50A |
2.70 |
|
|
2414 |
2.70 |
|
|
50WW290 |
2.90 |
50H290 |
2.90 |
V290-50A |
2.90 |
47F364M |
2.87 |
2413 |
2.90 |
|
|
50WW310 |
3.10 |
50H210 |
3.10 |
V310-50A |
3.10 |
47F397M |
3.13 |
2412 |
3.10 |
|
|
50WW350 |
3.50 |
50H350 |
3.50 |
V350-50A |
3.50 |
47F441M |
3.48 |
2411 |
3.60 |
|
|
50WW400 |
4.00 |
50H400 |
4.00 |
V400-50A |
4.00 |
47F529M |
4.18 |
2312 |
4.00 |
|
|
50WW470 |
4.70 |
50H470 |
4.70 |
V470-50A |
4.70 |
47F617M |
4.88 |
2214 |
4.80 |
|
|
50WW600 |
6.00 |
50H600 |
6.00 |
V600-50A |
6.00 |
47F882M |
6.98 |
2112 |
6.00 |
|
|
50WW700 |
7.00 |
50H700 |
7.00 |
V700-50A |
7.00 |
47F992M |
8.00 |
2012 |
6.50 |
|
|
50WW800 |
8.00 |
50H800 |
8.00 |
V800-50A |
8.00 |
|
|
2011 |
8.00 |
|
|
50WW1000 |
10.00 |
50H1000 |
10.00 |
940-50SG |
10.00 |
|
|
|
|
|
|
50WW1300 |
13.00 |
50H1300 |
13.00 |
100-50SG |
13.00 |
|
|
|
|
|

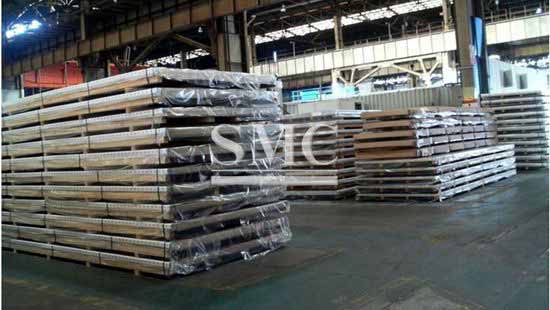

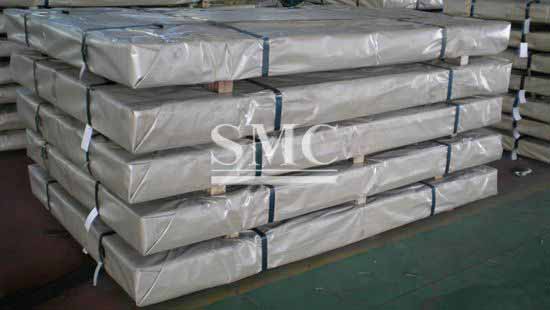

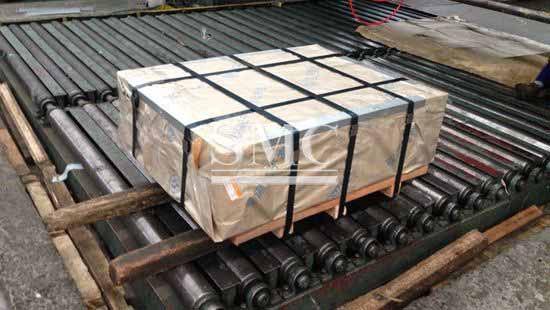

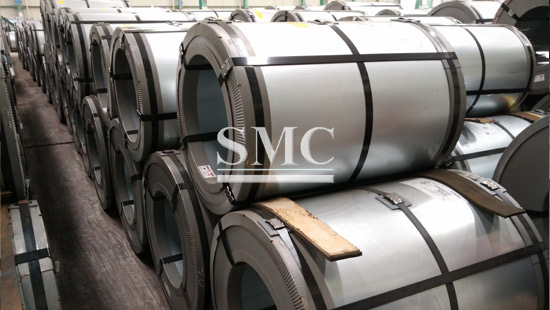

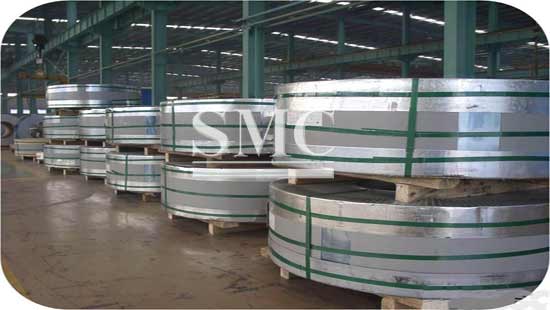

Packaging of Non-oriented Silicon Steel:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Service
To meet the entirety of our customers business needs, Shanghai Metal Corporation offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery. SMC prides itself on achieving superior results and satisfying customer needs. In this, we earnestly strive to fulfill our role as trustworthy and reliable supplier of business services throughout the entire world.
Our Value-Added Manufacturing Services not only save our customer time from having to out-source, but also spare them the cost of dealing with several disparate shops and deadlines.
Applications of Non-oriented Silicon Steel:
- Electrical equipment of medium & Small industrial electric motors,
- Compressors for household appliances
- Power transformers
- Welding machine transformers
- Current regulators
