Boat and Mooring Accessories

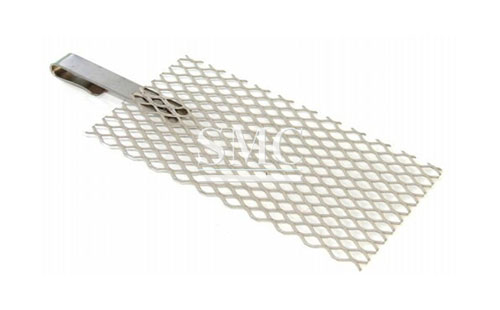

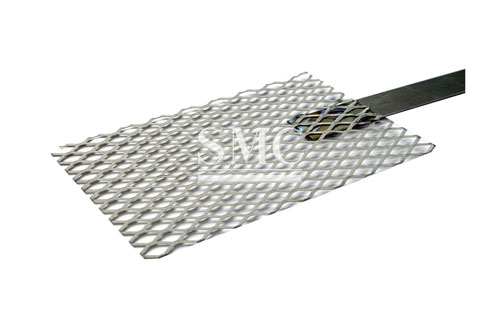

Platinum Coated Titanium Mesh for Boat and Mooring Accessories

    Thickness: 1.2mm - 2.0mm



    Pt coating: 0.5Um - 2.5Um



    Width: 50mm - 1200mm



    Hole shape: Round/Square

Product Detail

Specifications of Platinum Coated Titanium Mesh:
1) Material: Gr1 titanium as substrate, platinum as coating
2) Standard: ASTM B265, F67, F136
3) Thickness: 1.2mm - 2.0mm
4) Pt coating: 0.5Um - 2.5Um
5) Width: 50mm - 1200mm
6) Hole shape: Round/Square/Hexagonal

7)Technics: Punching, pulling, anneal (leveling), acid-washing, coating


Features of Platinum Coated Titanium Mesh:
1) Effective, environmental and quick method of electroplating
2) High current efficiency
3) High anti-corrosion property
4) Long working life
5) Keep the operating voltage stably
6) Small size & light weight
7) Repetitive titanium matrix, etc.

Packing of Platinum Coated Titanium Mesh

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Platinum Coated Titanium Mesh:

1) Electroplating Industries

a) Gold plating

b) Electro Dyalysis

c) Electrolytic Cells

d) Rhodium Plating

e) Sensing Elements

f) Electrogalvanizing

g) Electrochlorination

h) Hard Chrome Plating

i) Waste water treatment

j) Precious Metal Recovery

2) Cathodic Protection Applications

a) Sea water intakes

b) Heat exchanger & Condensers

c) Jetties & Tanks

d) Water Heaters
