Heat Exchanger Pipe

Stainless Steel Tube Coil/Coil Tubing for Heat Exchangers

    Grade: 301, 321, 304, 304L, 316, 316L


    Outside Diameter: 6mm - 23mm


    Wall Thickness: 0.4mm - 1.5mm

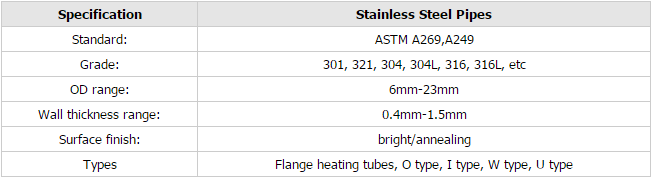

Specifications of Stainless Steel Tube Coil/Coil Tubing for Heat Exchangers:



Types of Stainless Steel Tube Coil/Coil Tubing for Heat Exchangers:

1) Flange heating tubes
2) O type
3) I type
4) W type
5) U type

Size of Stainless Steel Tube Coil/Coil Tubing for Heat Exchangers:

The outside path admission deviation that solder take care of includes the elliptical park a cent Ⅰ , Ⅱ two class, see the table 3, table 4.

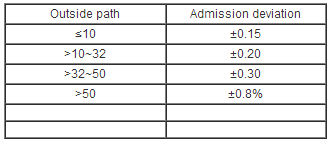

Outside path in class deviation mm table 3

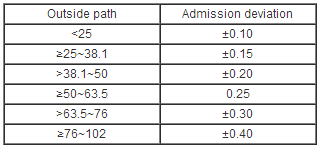

Outside path in Ⅱ class deviation mm table 4




The thick the deviation of admission( do not include the weld sew) in wall of the weld tube is for ruling the wall thick 10% of ±,

but minimum admission deviation is the 0.02 mms of ±.

The weld takes care of of settle Chinese foot length as 3 ms~9 ms, general settle the Chinese foot with the 6 ms.
The weld takes care of of settle the Chinese foot length in usually length, its the deviation of admission is the 5 mms of ±.
Adopt partial the degree of flinch in a the tube of weldfor keeping the Chinese foot measurement should not very in 2.0 mms.

Manufacturing Process of Stainless Steel Tube Coil/Coil Tubing for Heat Exchangers

The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.

Packaging of Stainless Steel Tube Coil/Coil Tubing for Heat Exchangers

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Stainless Steel Tube Coil/Coil Tubing for Heat Exchangers:

1) Heat exchangers

2) Beer cooler

3) Laser evaporator

4) Heating reactor

5) Electronic boiler

6) Electronic oven

7) Chemical equipment

8) Pharmaceutical machinery

9) Kitchen equipment

10) Solar energy equipment

11) Air conditioner
