Material: Carbon Steel, Alloy Steel



    Operation: Manual, Pneumatic, etc



    Size: 1/4’’- 4’’

  • 1. Material: Carbon Steel, Alloy Steel, Stainless Steel

    2. Standard: GB12237-89、API608、API 6D、JPI 7S-48、BS5351、DIN3357

    3. Inside nominal diameter: DN15-250mm 1/2"-10"

    4. Material: WCB, CF3, CF3M, CF8, CF8M

    5. Connection: ASME, DIN, BS

    6. Operation: Manual, pneumatic, hydraulic

    7. Medium: Water, gas, oil, etc.

    8. Flange Size: JB/T74-90、GB9112-9131、HGJ44-76、SH3406、ANSI B16.5、JIS B2212-2214、DIN2543



  • 9. Test Standards: API598, API 6D,JISB2003, ISO5208,BS 6755,DIN3230,EN12266

    10. Design & Manufacture: API, BS, DIN

    11. Application: Industrial Usage, Water Industrial Usage, Household Usage

    12. Size: 1/4’’-4’’

    13. Temperature range: -20 – 232-350 degree

    14. Outer packing: Carton or as customer’s requests

    15. Inner packing: Plastic bag or as customer’s requests

    16. Working pressure: 1000 PSI



  • 1. Petroleum

    2. Electric power

    3. Chemical industry

    4. Papermaking

    5. Aircraft industry

    6. Atomic energy

    7. Pharmacy

    8. Water conservation

    9. Steel



  • 1. Low flow resistance

    2. Simple structure, small volume, light weight

    3. Compact and reliable, the sealing surface of current ball valve adopted a kind of plastic material with great leakage, which also widely used in the vacuum system.

    4. Easy operation, quick open and close, and easy control of remote distance

    5. Convenient maintenance, like remove and replace

    6. Wide range of application

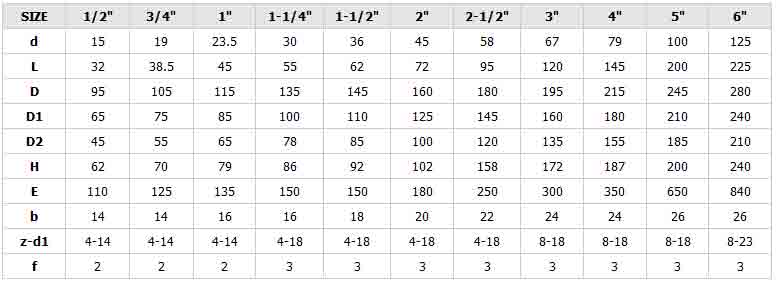

Parameter of Ball Valve:

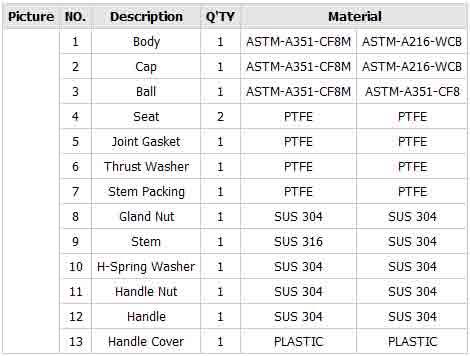

Take two piece stainless steel ball valve as an example:

Manufacturing & Packaging of Valve:

SMC provides standard seaworthy packaging to customers, with shipping mark and Shanghai Metal Corporation label on the packages for easy identification of the product I.D. and quality information. Great care is taken to avoid any damage which might be caused during storage or transportation. Our dedicated logistic department can provide any documentary certificates, shipping order, and goods insurance.



Inner packing: Plastic bag or as customer’s requests

Outer packing: Carton or as customer’s requests
