IV Cannula Needle With Injection Port

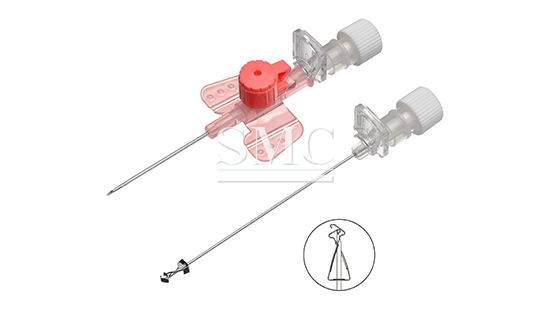

The intravenous indwelling needle is composed of a stainless steel core, a soft outer sleeve and a plastic needle seat. During puncture, the outer sleeve and the needle core are inserted into the blood vessel together. When the sleeve is sent into the blood vessel, the needle core is withdrawn, and only the soft outer sleeve is left in the blood vessel for infusion.

The intravenous cannula needle with an injection port is a medical device mainly used for intravenous injection of fluids, drugs or blood products. They have an additional function of an injection port, which allows additional injections or administration without reinsertion. As an additional function, the injection port allows easy injection of drugs or liquids through the cannula without multiple punctures. The port is usually connected to a syringe or intravenous infusion tube and can be accessed multiple times.

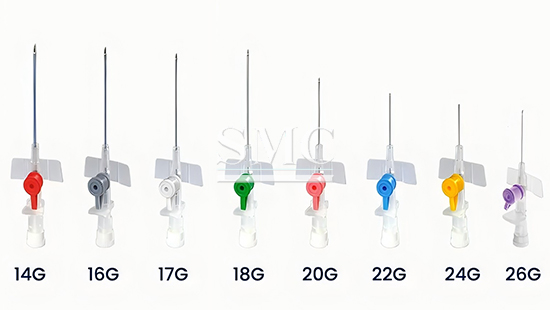

Specifications

18G Y-type green: designed for rapid/large-dose infusion, routine surgery or blood transfusion, specifications 1.31mm*29mm, flow rate up to 85ml/min.

20G Y-type pink: suitable for routine surgery or blood transfusion, the first choice for routine adult infusion, specifications 1.10mm*29mm, flow rate 48ml/min.

22G Y-type blue: for routine adult and pediatric infusion, especially suitable for small and fragile veins, specifications 0.90mm*25mm, flow rate 33ml/min.

24G Y-type yellow: specially designed for routine pediatric intravenous infusion of small and fragile veins, specifications 0.72mm*19mm, flow rate 19ml/min.

26G Y-type purple: the preferred model for neonatal infusion, specifications 0.60mm*15mm, flow rate only 15ml/min.

Choosing the right indwelling needle model is the key to ensuring patient safety and treatment effect. Understanding the characteristics and scope of application of various models will help doctors make more informed decisions.

Advantages

1. Protect blood vessels, intravenous indwelling needles have good flexibility, little stimulation to blood vessels, and rarely have catheter folding and catheter tip damage.

2. It can be indwelled for a long time, reducing vascular damage and mental pain caused by repeated punctures.

3. Some indwelling needles have connectors, which can provide patients with multiple treatment channels.

4. Reduce the workload of nursing staff in venipuncture.
