Thickness: 6mm - 120mm

Width: 1000mm - 3000mm

Grade: 20MnHR

Product Detail | Technical Information | Packaging | More

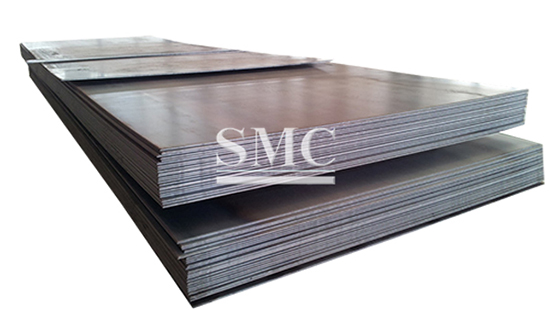

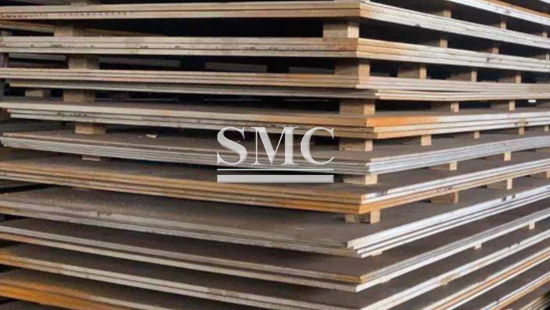

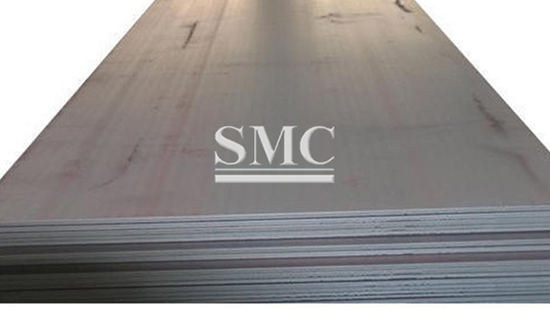

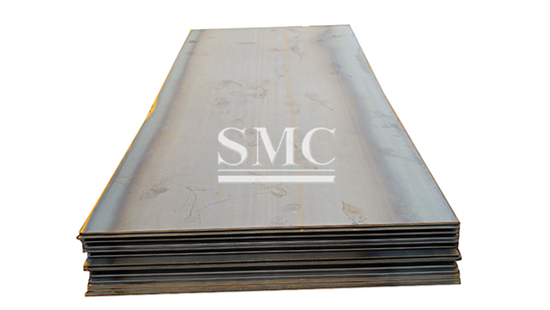

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of 20MnHR Low Temperature Steel Plate for Nuclear with high quality and reasonable price.

The 20MnHR low temperature steel plate has excellent properties such as high strength, toughness, fatigue resistance, and impact resistance.It is commonly used in the manufacturing industry of nuclear power plants, for example; Nuclear capacitor equipment, nuclear rolling furnace equipment, rotary furnace equipment, drying machine equipment, nuclear reactor equipment, rolling bar equipment, ultra supercritical equipment, container equipment, etc.

If you want to know more about 20MnHR Low Temperature Steel Plate for Nuclear price please feel free to contact us, we will reply you within 24 hours

Standard: GB 30814-2014 & EJ/T1103-1999

Length: 6000mm~12000mm or customized

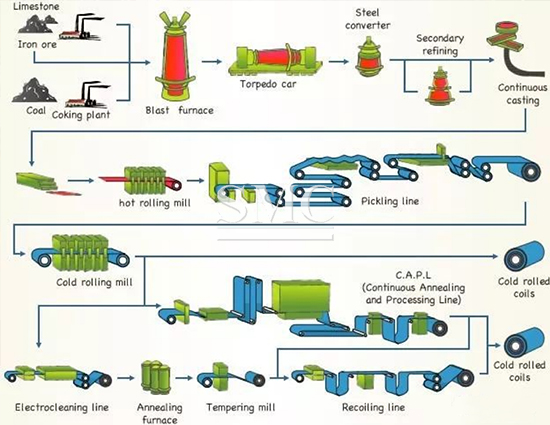

Manufacturing technique: EAF + LF/VD

Ultrasonic Test : Gr.1, Gr.2, Gr3

Delivery condition : hot rolled, normalized, normalized + tempered or normalized + quenched

1. High pressure water pipe

2. Nuclear reactor pressure vessel

3. Liquefied petroleum gas cylinder

4. Spiral case

Technical Information of 20MnHR low temperature steel plate for nuclear:

Grade	Chemical composition
Grade	%C	%Si	%Mn	%P	%S	%Mo	%Cr	%Ni	%Cu
20MnHR	≤0.22	0.20~0.55	1.00~1.60	≤0.017	≤0.015	≤0.10	≤0.25	≤0.30	≤0.30

Grade	Mechanical property
	delivery condition	Thick/mm	Y.S/Mpa	T.S/Mpa	EL. /%	AVK		180° bend
20MnHR	Normalized	6~25	≥335	510-620	≥22	-40℃	≥47J/cm2	d=3a
		＞25-30	≥345		≥22
		＞30-50	≥335		≥21
		＞50-80	≥335		≥20
		＞80-120	≥325		≥20

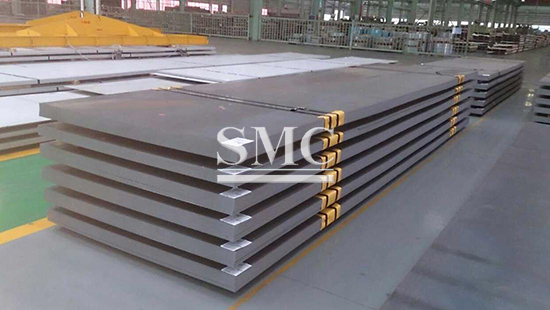

Packaging of 20MnHR low temperature steel plate for nuclear:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

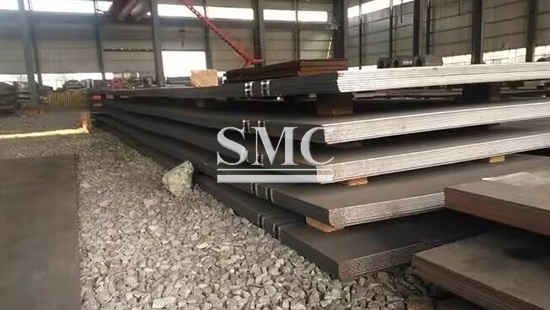

Notes:

1. Before welding, the surface of the steel plate needs to be cleaned thoroughly to ensure welding quality. Because there may be impurities such as oil stains and dirt on the surface of the steel plate, which can affect the welding quality. So it is necessary to use detergent or other cleaning agents to clean the surface of the steel plate.

2. When welding 20MnHR steel plates, it is necessary to choose the appropriate welding method. Generally speaking, commonly used welding methods include manual arc welding, argon arc welding, and submerged arc welding. Different welding methods have different effects on welding materials, so it is necessary to choose the appropriate welding method according to the specific situation.

3. Choosing the appropriate welding electrode is also very important. When welding 20MnHR steel plates, it is necessary to choose electrodes with good heat resistance and pressure resistance. Only by selecting the correct electrode can welding quality be guaranteed.

4. When welding 20MnHR steel plates, it is necessary to ensure that the welding temperature does not exceed the hot deformation temperature of the steel. Because if the welding temperature is too high, it can cause deformation or cracking of the steel plate, thereby affecting the welding quality.
