Refrigerated/Reefer Container

40HC Reefer Container/Refrigerated Container

    Condition: Only Sell New Containers



    Size: 20GP/20HC/40GP/40HC

Product Detail

Shanghai Metal Corporation is a leading 20GP Reefer/Refrigerated Container manufacturer and supplier. A reefer/Refrigerated container is a group of high-efficiency, insulated and cold-cooled heat exchange equipment. It is often used in the cryogenic separation process. For example, in the cryogenic separation process of petroleum cracking gas, a reefer container operating at about -100 to -140 °C is used. It consists of a compact high-efficiency plate heat exchanger and a gas-liquid separator. Because the low temperature is extremely easy to disperse cold, and extremely strict heat insulation is required, the heat exchanger and the separator are packaged in a box shape by a heat insulating material, which is called a reefer/refrigerated container. If you want to know more about our container products or 20GP Reefer Container price please feel free to contact us, we will reply you within 24 hours.


Dimensions and Capacities of 40 Feet HC Reefer Containers:

40ft HC Reefer Container

Dimension

Millimeter

Feet

External

Length

12,192

20

Width

2,438

8

Height

2,896

8.6

Internal

Length

11,590 (0,-15)

17.9

Width

2,290 (0,-10)

7.5

Height

2,557.5 (0,-10)

7.47

Door
Opening

Width

2,294 (0, -5)

7.53

Height at sill

2,569 (0, -5)

7.43

Cargo access height

2,505.5 (0, -10)

7.3

Weight

Kilogram

Pound

Max Gross Weight

35,000

77,160

Tare Weight (Excluding Ref. Unit)

4,100

9,040

Maximum Payload

30,480

67,200

Internal Capacity

Cube Meter

Cube Feet

67.9

2,400

Insulation

Item

Thickness (mm)

Density (kg/m3)

Side

63

45-50

Door

74

50-55

Roof

80

40-45

Floor

82-106

45-50

Corner

40

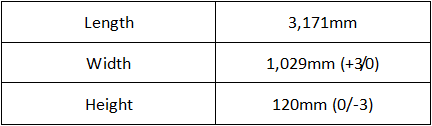

Forklift pocket Dimensions:
