Grade: C2800;C2680;C2700;C2200;C2100

Round brass wire Diameter: 0.3mm~12mm

Temper: O, 1/8H, 1/4H, 1/2H, H

Product Detail | Technical Information | Packaging | More

Product Detail1

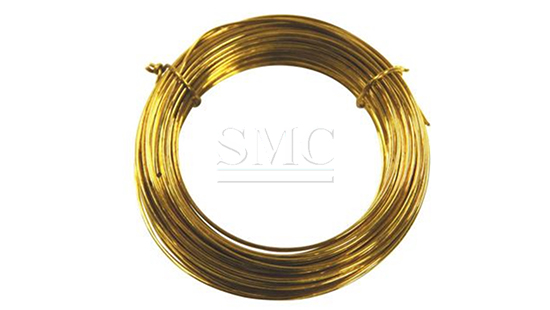

Shanghai Metal Corporation is a leading round brass wire manufacturer and supplier.

Round brass wire is made of 62%–68% copper-zinc alloy, available in C2800, C2680, C2700, C2200, C2100 grades. The diameter ranges from 0.3mm to 12mm, and tempers include O, 1/8H, 1/4H, 1/2H, H. It combines high strength, hardness and wear resistance with strong chemical stability and excellent machinability, while retaining good plasticity for forming, drawing and cutting operations. Compared with pure copper, brass wire achieves better wear resistance and structural strength for load-bearing conductive or heat-conductive components, and avoids the brittleness of high-zinc brass. It is widely used in electrical terminals and connectors, hardware fasteners (screws, nuts, rivets), spring components, welding rods, heat exchanger and condenser parts, cryogenic pipeline fittings, subsea transportation pipeline accessories, as well as manufacturing of sheets, bars, rods, pipes and pressure-resistant casting parts. We also supply matching aluminum and stainless steel wire products for diversified industrial needs.

If you want to know more about our Enamelled Copper Wire or round brass wire price please feel free to contact us, we will reply you within 24 hours.

1. Material: Cu-Zn brass, grades C2800(60%Cu), C2680(65%Cu), C2700(70%Cu), C2200(90%Cu), C2100(95%Cu), impurities within specs.

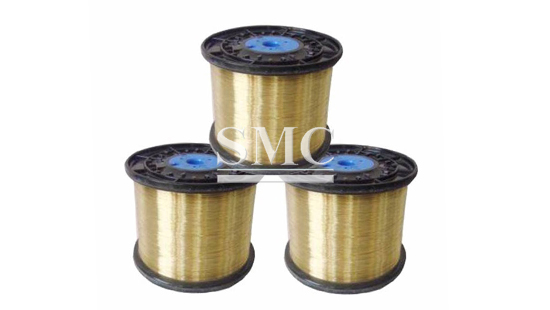

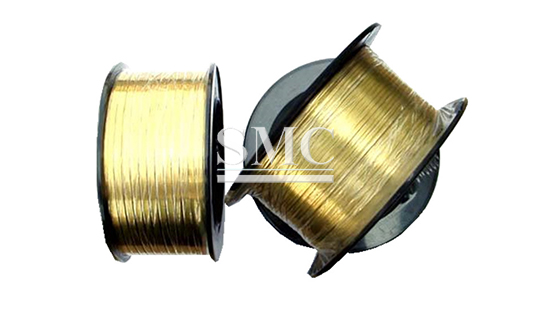

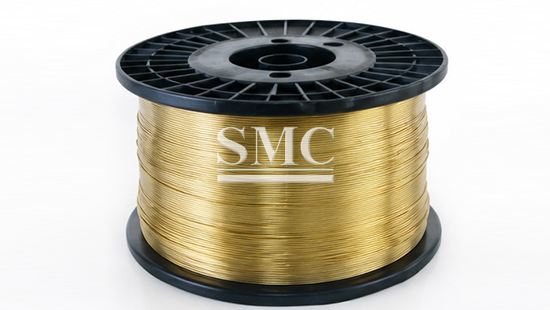

2. Structure: Solid single round brass wire on spools, uniform cross-section; diameter decides tensile & bending properties.

3. Function: The wire withstands tension, bending and cutting for power conduction and force transmission; spools enable smooth automatic feeding; wire surface offers corrosion resistance and stable electrical contact.

4. Tempers: O(soft for bending/deep drawing); 1/8H–1/2H(medium for stamping); H(hard for springs & load parts).

5. Grade features: C2800 for turning/fasteners; C2680 for terminals/stamping; C2700 for deep drawing; C2200/C2100 for low-temp & underwater anti-corrosion.

1. Tunable mechanical properties Strength and plasticity can be adjusted by selecting different brass grades and tempers, suitable for bending, stamping, turning and deep drawing for various industrial parts.

2. Precise dimension control Manufactured by automatic wire drawing machines. Diameter tolerance is controlled within standard ranges to fit automated machining and continuous feeding.

3. Stable batch quality Adopts continuous on-line furnace testing and complete chemical and physical inspection, to keep consistent alloy composition, uniform tensile strength and smooth wire surface among batches.

4. Multiple brass grade options C2800, C2680, C2700, C2200, C2100 are available, covering needs for machinability, ductility or corrosion resistance.

1. Electronic Hardware & Electrical Components: For terminals, connectors, rivets & screws. Recommended: C2680, 1/8H~1/2H.

2. Cable & Telecommunication Devices: For cable/telecom conductive & structural parts. Recommended: C2700 (high ductility).

3. Petroleum & Chemical Equipment: For moderately corrosion-resistant parts. Recommended: C2200/C2100 (high Cu).

4. Industrial Filtration & Printing Industry: For mesh and machinery fittings. Recommended: C2680 or C2700.

5. Decorative & Craft Components: For bent decorative frames & metalwork. Recommended: O temper C2700 for easy forming.

Technical Information of Brass Wire

1. Basic Specification
Product Name	Round Brass Wire
Product Form	Solid single-strand round wire, coiled on spools
Diameter Range	0.3mm ~ 12mm
Material Type	Copper-zinc binary alloy
Copper Content Range	62% ~ 95% (varies by grade)
Available Tempers	O, 1/8H, 1/4H, 1/2H, H
Standard Spool Weight	3kg, 5kg, 7kg, 15kg, 20kg (customizable)

2. Temper Characteristics
Temper	Key Properties	Suitable Process
O (Soft)	Maximum plasticity, easy forming	Deep drawing, bending, complex shaping
1/8H	Slightly increased strength, good ductility	Light stamping, rivets
1/4H	Balanced hardness and plasticity	General stamping, terminals
1/2H	Higher strength, moderate formability	Heavier stamping, connectors
H (Full Hard)	High tensile strength, low ductility	Springs, load-bearing small parts

Production process

Packaging of Brass Wire:

Standard Packaging:

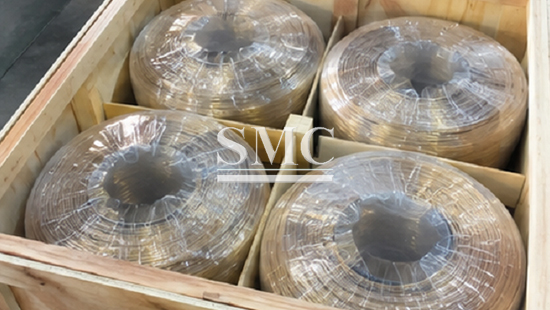

Each roll of brass wire is first wrapped in a moisture- and dust-proof protective film, then packed into a sealed export-grade wooden crate for international shipping, effectively preventing moisture damage, impact, and deformation during long-distance transport.

Shipping:

We support Full Container Load (FCL) and Less than Container Load (LCL) shipping by sea and air, as well as express delivery services, depending on order quantity and destination. Available trade terms include EXW, FOB, CIF, and others; additional terms can be provided upon request. Freight charges are calculated based on the cargo’s volume, gross weight, destination, and selected shipping method.

Delivery Time:

Samples: 10 business days

Standard Orders: 15–25 business days

Custom Orders: 35–40 business days

Q1: How long does sample preparation take?

A: Usually 10 working days after confirming specifications and receiving sample fee.

Q2: What information do you need for a custom quotation?

A: Please provide material grade, wire diameter, temper, required quantity, spool packaging weight, and special processing requirements.

Q3: What factors should I consider when choosing brass wire?

A: Consider material grade, hardness temper, wire diameter, ductility, machinability, working environment and application scenarios.

Q4: What is the difference between different brass tempers?

A: Soft O temper provides maximum plasticity for bending and deep drawing; medium tempers balance strength and plasticity for stamping; full-hard H temper offers high tensile strength for load-bearing parts.

Q5: What is the difference between different brass grades?

A: High-zinc grades feature high hardness and good machinability; medium grades have balanced comprehensive performance; high-copper grades provide excellent corrosion resistance and ductility.

Q6: What quality standards does the product meet?

A: We produce in accordance with international industrial standards, with complete material test reports, chemical composition certificates and dimensional inspection reports available.
