Copper Foil/Foil Cable

Color Hot Melt Mylar

    Thickness: 35U

    Width: 1MM, 1.5MM, 1.7MM, 2MM, 2.5MM, 3MM, 3.5MM, 4MM and other specifications.

    Elongation: 35%MIN

    Breaking force: 220GF% (MIN)

Product Detail

Shanghai Metal Corporation is a leading color hot melt mylar manufacturer and supplier.

Color hot melt mylar is a kind of insulation material used widely in Cable and Wire

Color hot melt mylar is consisted of 3 parts mainly: Copper Foil, Polyester Film and EAA Film. The Copper Foil provides conductivity and electromagnetic insulation better than Aluminum. And Polyester Film provides electrical insulation and high mechanical strength. EAA has good viscosity to PE material when it reaches about 90 ℃. So we called it Hotmelt Self-adhesive.

If you want to know more about our color hot melt mylar price please feel free to contact us, we will reply you within 24 hours.

  • 1. Thickness: 35U

    2. Width: 1MM, 1.5MM, 1.7MM, 2MM, 2.5MM, 3MM, 3.5MM, 4MM and other specifications.

    3. Elongation: ≥35%MIN

    4. Breaking force: ≥220GF% (MIN)

    5. Operating temperature: 120℃-300℃

    6. Packing method: small shaft and piece

    7. Roll length: ranging from 1500M to 5300M.

    8. Storage method: below 25 degrees, humidity 60%, room temperature for three months.

  • 1. Good insulation

    2. Reduce network attenuation

    3. Meet environmental protection requirements

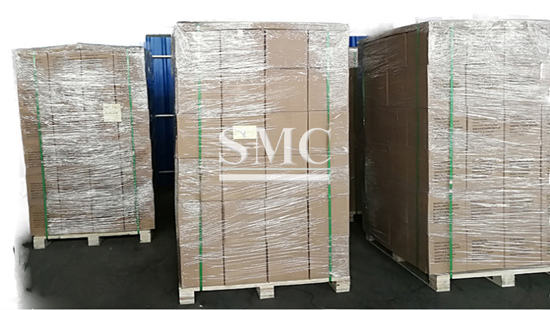

Packaging of Color Hot Melt Mylar

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard


2) Customization
