Size: 0.01~8mm

Conductivity: ≥55%

Copper Content: 34~40%

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Copper Clad Aluminum Magnesium wire with high quality and reasonable price.

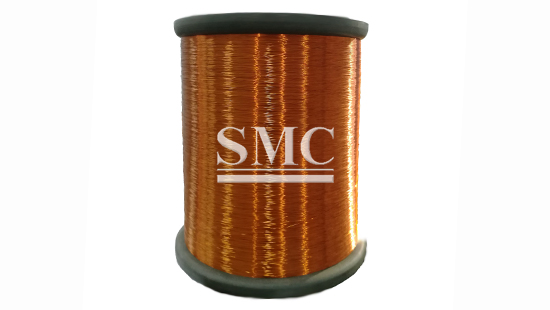

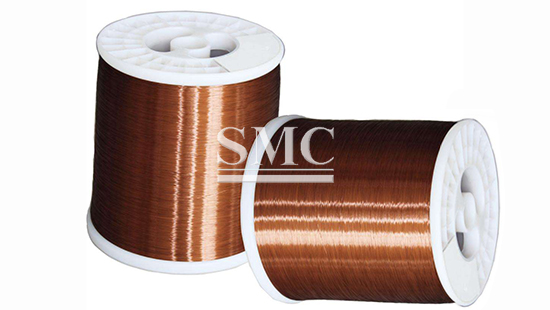

Copper Clad Aluminum Magnesium wire is made by covering a coating of copper on the surface of aluminum magnesium wire by hot dip method, our CCAM wire with the state-of-the-art cladding and welding crafts guarantee the high density and conductivity of our 99.9% purity copper cladding, while our metallurgical bonding technique assures that the Copper cladding is evenly distributed around the Aluminum Magnesium coil along the wire for excellent concentricity. Mechanical properties accord with US ASTM B56693 Standard.

Our CCAM wire is using high strength of Aluminum Magnesium core, less weight but boasts higher intensity of 150-250Mpa, and the density is only 3.63g/cm3. CCAM wire can take 30% cost reduction. Now the output of our CCAM wire is 800 Tons per month.

If you want to know more about Copper Clad Aluminum Magnesium wire price please feel free to contact us, we will reply you within 24 hours.

1)Resistivity: 0.030859 Ωmm²/m @20℃

2)Elongation: ≥1%

3)Tensile Strength:>150Mpa

4)Hardness: H, O

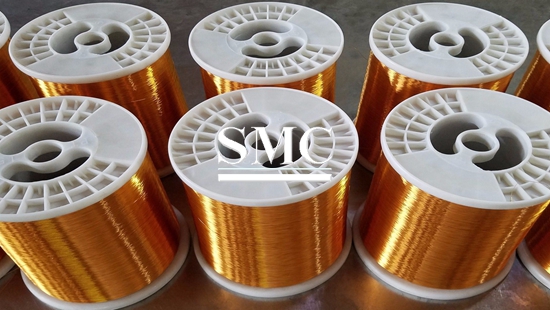

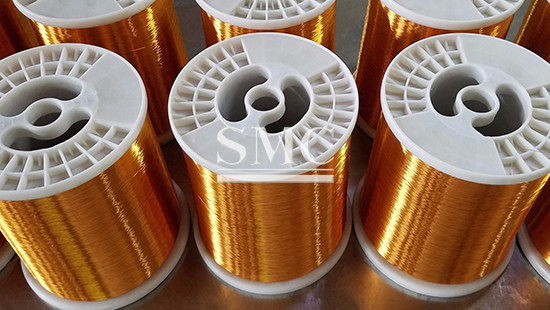

5)Packing: Plastic spool size: DIN130mm, DIN160mm, DIN180mm, DIN200mm, DIN250mm, DIN400mm

1. Inner conductor of terminal CATV coaxial cable

2. Conductive cord of user communication cable for double conductor telephones.

3. Conductive cord of field wires

4. Overhead-contact systems for railway and Light Rail Transit

5. Earthing pole for electrical power industry

1. Shiny & Uniformity

2. Excellent electrical conductivity

3. High tensile strength

4. Excellent welding and Good corrosion resistance

5. Light Specific gravity

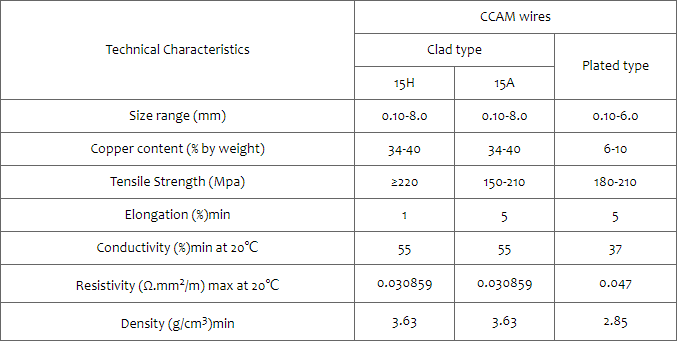

SPEC

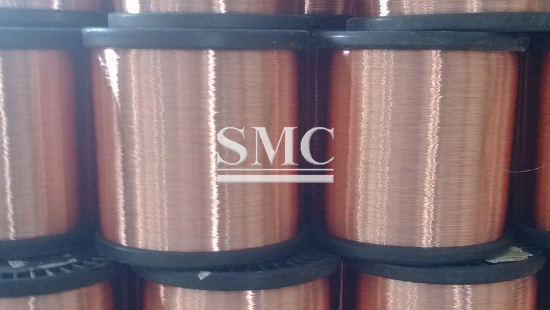

Normal package:
DIN130mm, DIN160mm, DIN180mm, DIN200mm, DIN250mm,DIN400mm, DIN780mm
