Thickness: 0.2mm - 3.2mm

Color: black, yellow, natural, etc.

Types: single sided , double sided

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a leading CCL manufacturer and supplier.

Copper Clad Laminate is base material of PCB which mechanically supports and electrically connects electronic coponents or electrical components.

Using conductive tracks, pads and other features etched from one or more sheet layers of copper laminated onto and/or between sheet layers of a non-conductive substrate. Components are generally soldered onto the PCB to both electrically connect and mechanically fasten them to it.

Alternatives to PCBs include wire wrap and point-to-point construction, both once popular but now rarely used. PCBs require additional design effort to lay out the circuit, but manufacturing and assembly can be automated. Specialized CAD software is available to do much of the work of layout. Mass-producing circuits with PCBs is cheaper and faster than with other wiring methods, as components are mounted and wired in one operation.

If you want to know more about our Copper Clad Laminate or Copper Sheet product price please feel free to contact us, we will reply you within 24 hours.

1) Thickness: 0.2mm - 3.2mm, or custom

2) Color: black, yellow, natural, etc.

3) Types: single sided, double sided

4) Applications: widely used in military, aerospace, automotive and consumer electronics, etc.

1) High tear strength

2) High peel strength

3) High thermal resistance

4) High flexural endurance

5) Wide processing latitude

6) Low moisture absorption

7) Excellent dielectric thickness tolerance

8) Excellent dimensional stability

9) High modulus for reliable COF wire bonding

Resin Mixing

Glass Fabric Loading

Treating

Pre-preg Rewinding

Bonding Sheet Ply-Up

Build-up

Lamination

1) Computer devices: soft disk driver, power supply device, CPU board/span>

2) Lighting: road lighting, LED outer wall lighting, LED stage lighting

3) Telecommunication devices: filter circuit, automobile telephone high frequency booster of mobile telephone, transmitting circuit.

4) Electronic devices in automobile: igniting device, voltage regulator, auto safety control system, electromagnetic wave shield material

5) Power supply: switch, switch regulator, transformer, large power, base board of solar cell

6) Electronic control: transistor base, radiator, switch board, insulating heat conductive board in semiconductor, motor control device, etc.

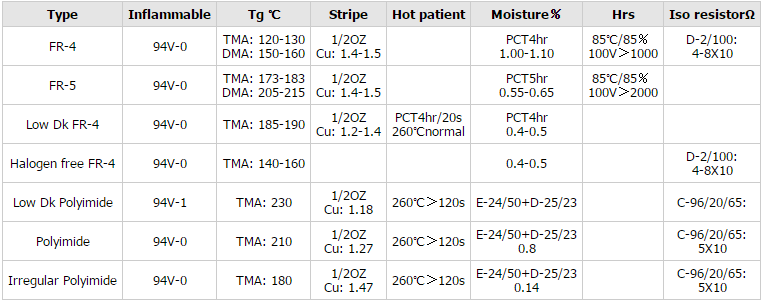

Parameters of Copper Clad Laminate:

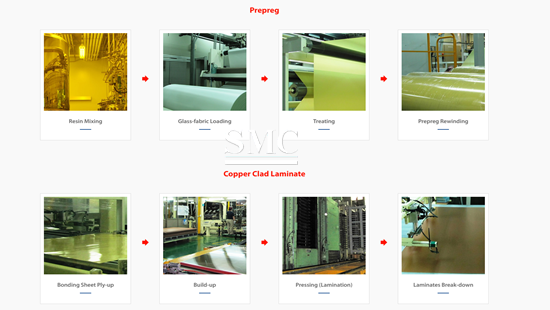

Manufacturing of Copper Clad Laminate

Packaging of Copper Clad Laminate

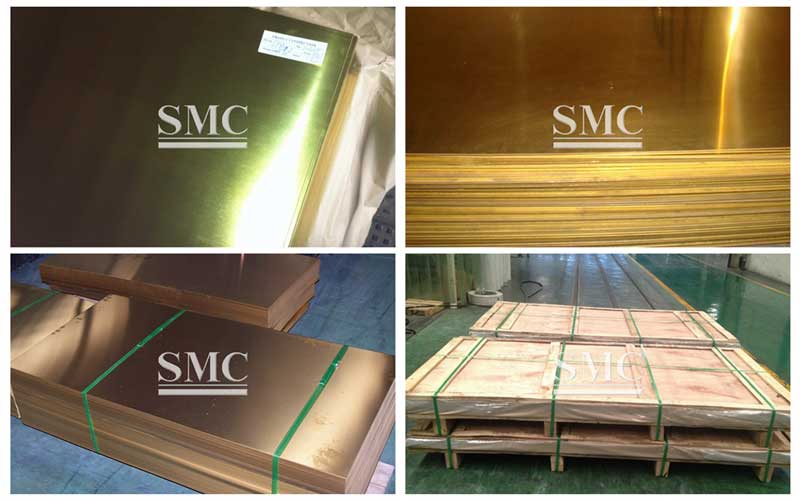

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Copper Clad Laminate:

1) Computer devices: soft disk driver, power supply device, CPU board

2) Lighting: road lighting, LED outer wall lighting, LED stage lighting

3) Telecommunication devices: filter circuit, automobile telephone

high frequency booster of mobile telephone, transmitting circuit.

4) Electronic devices in automobile: igniting device, voltage regulator,

auto safety control system, electromagnetic wave shield material

5) Power supply: switch, switch regulator, transformer, large power,

base board of solar cell

6) Electronic control: transistor base, radiator, switch board,

insulating heat conductive board in semiconductor, motor control device, etc.
