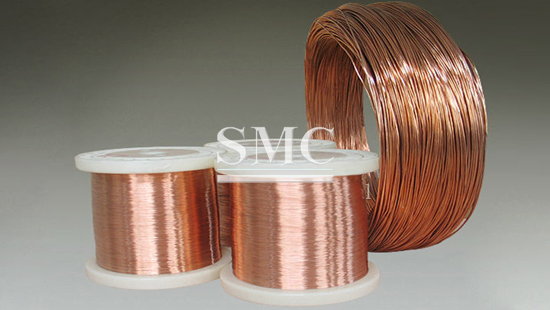

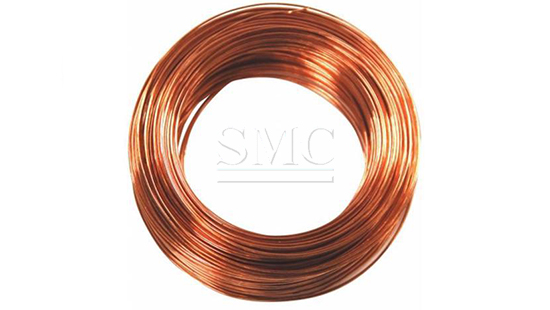

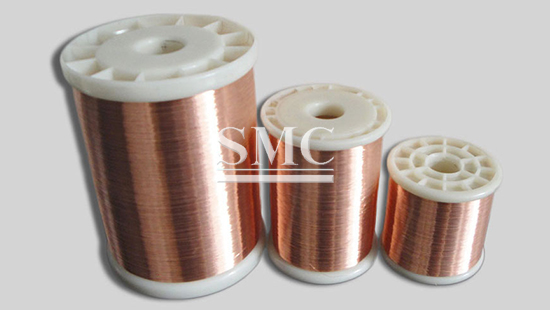

Copper Manganese Nickel Wire
Grade: 6J12,6J13
Diameter: 0.15-12.0mm
Shanghai Metal Corporation is a leading Copper Manganese Nickel Wire manufacturer and supplier.
Copper Manganese Nickel Wire used for electrical and controlled resistance applications. These alloys have very low temperature coefficient of resistance, and offer uniform electrical resistance over long periods of time. Additionally, they have very low thermal electromotive force against copper. These alloys have good workability, can be soldered, as well as welded.
If you want to know more about our copper products or Copper Manganese Nickel Wire price please feel free to contact us, we will reply you within 24 hours.
-
1. Diameter: 0.15-12.0mm
2. Production Standard:6J12............6145-2010
6J13............6145-2010
4. Alloy:6J12 Ni(2%~4%) Mn(10%~12%) Cu(balance)
6J13 Ni(2%~4%) Mn(11%~13%) Cu(balance)
-
-
-
1) Very low temperature coefficient of resistance
2) Offer uniform electrical resistance over long periods of time
3) Very low thermal electromotive force against copper
4) Good workability, can be soldered, as well as welded.
5) Higher thermal property
6) Good resistance to refrigerant and freon
-
1)Annealing Oven
2)Enamel Applicator
3)Curing Oven
4)Lubrication
5)Laser O.D. Control
6)Tension Control
7)Spooling
-
-
-
1) Heat Emelemt
2) Heat Treatment
3) Transformer
4) Heating Cable
Technical Information of Copper Manganese Nickel Wire:
1）Specification:
Diameter: 0.15-12.0mm
2）Material & Production Standard
1.6J12............6145-2010
2.6J13............6145-2010
3）Chemical Composition
1.6J12 Ni(2%~4%) Mn(10%~12%) Cu(balance)
2.6J13 Ni(2%~4%) Mn(11%~13%) Cu(balance)
4) Mechanical Property
Tensile Strength (N/mm2) Elongation(%)
Min Max Min Max
1.6J12 350 450 15 30
1.6J13 350 450 15 30

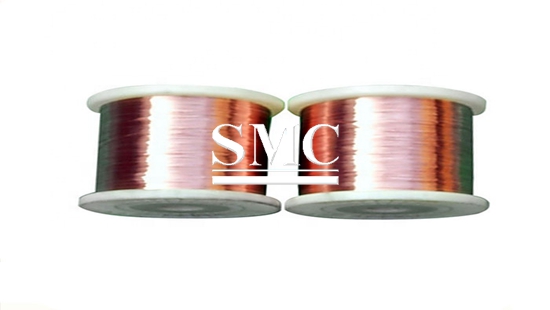

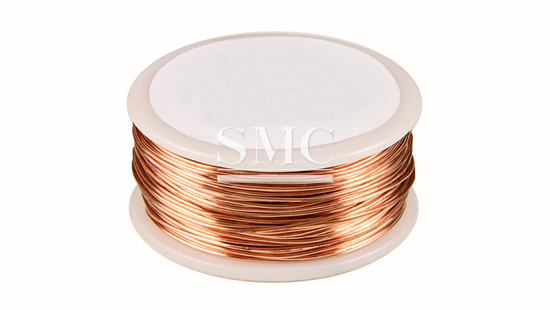

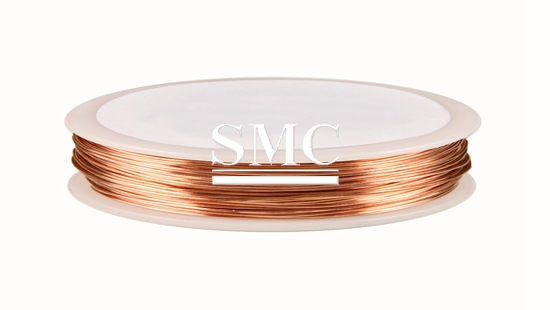

Packaging of Copper Manganese Nickel Wire:
Spool+ carton+wodden pallet/case
Advantage of Copper Manganese Nickel Wire:
1. Very low temperature coefficient of resistance
2. Offer uniform electrical resistance over long periods of time

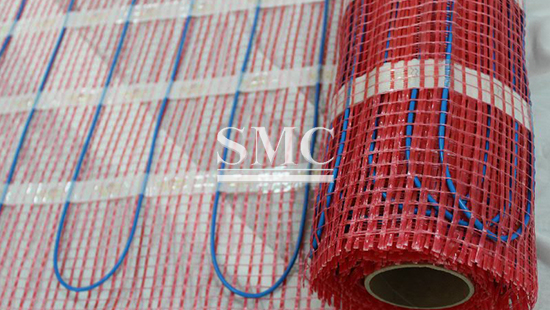

Application of Copper Manganese Nickel Wire:

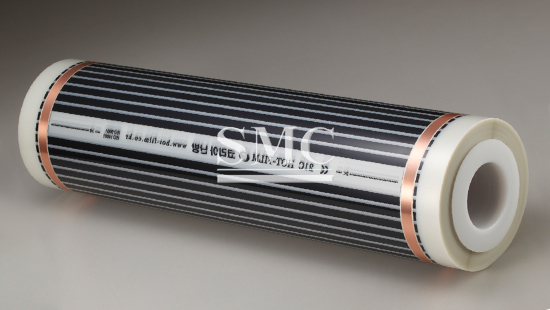

Heat Emelemt:
Heat Treatment:
Transformer:

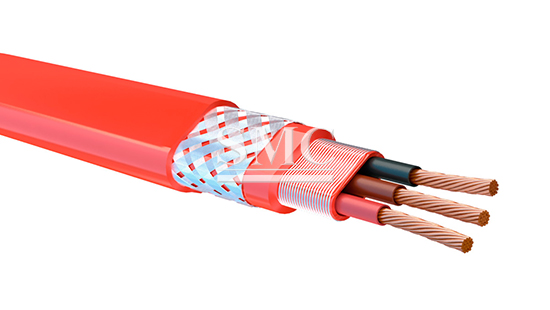

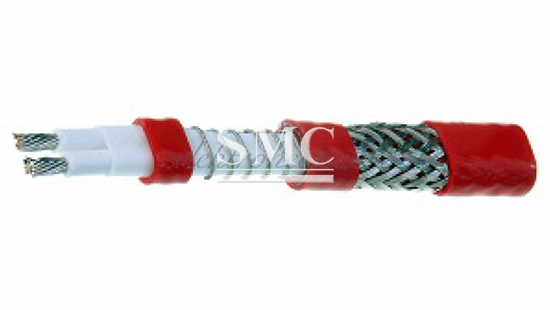

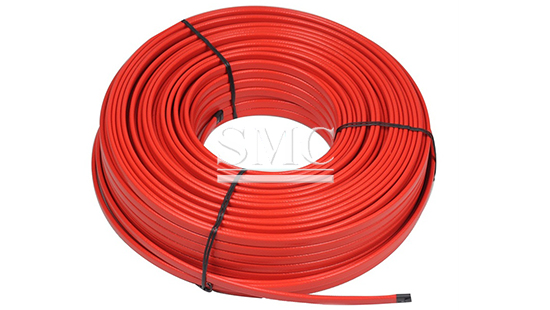

Heating Cable:
Feature of Copper Manganese Nickel Wire:
They have very low thermal electromotive force against copper. These alloys have good workability, can be soldered, as well as welded.

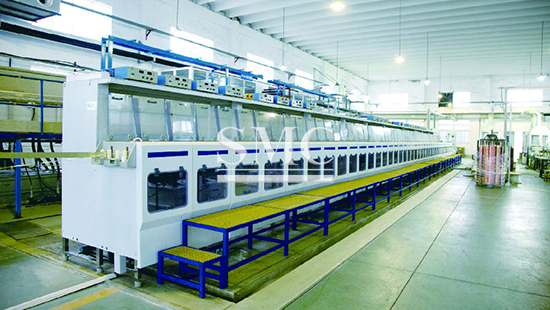

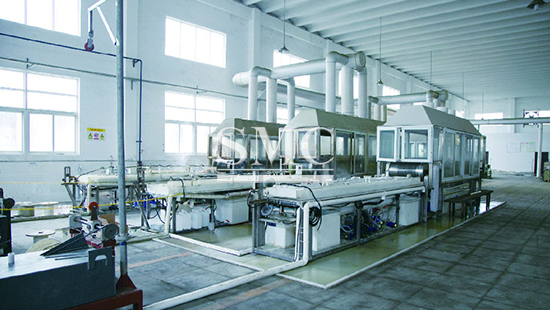

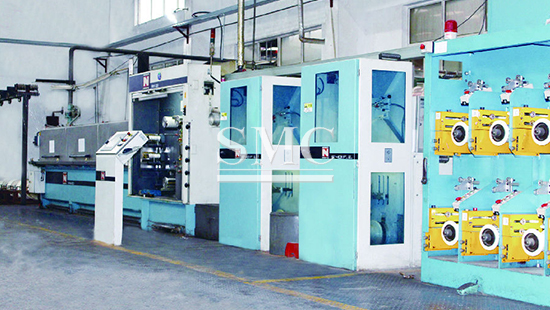

Production Line of Copper Manganese Nickel Wire:
