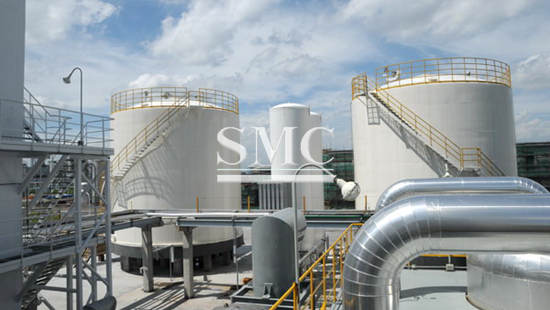

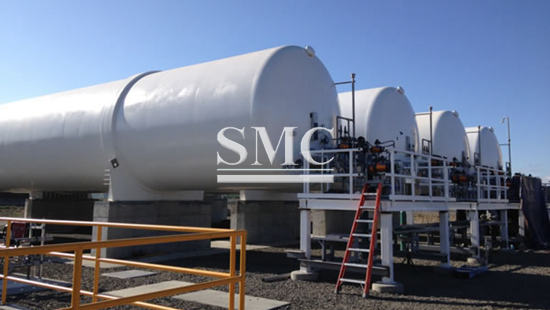

Cryogenic Storage Tank

    Working pressure: 0.8 MPa



    Overall dimension: Φ2500×6950mm

Structural features:

Compact structure, small footprint. Storage tank, supercharger to form a closed system, without any additional energy in the case of outward supply of liquid or gas to ensure the discharge of liquid or gas purity. With the pressure regulator, the user adjust the valve as needed T, you can discharge the need for pressure of the liquid, the pressure is stable, easy to operate. The tank is provided with a tank filling tank, which can be fed to the carburetor and tanker. Tank insulation materials Pearlescent sand and adsorbent are specially treated so that the tank has a long vacuum life, while the tank with a metal thermocouple regulation, when required to measure the degree of sandwich vacuum.

15CBM 0.8Mpa Vertical cryogenic tank
1.Loading medium: Lo2,Ln2,LAr
2.Total Volume: 16.5m³
Effective Volume: 15.0 m3
3.Working pressure: 0.8 MPa
4.Overall dimension: Φ2500×6950mm
5.Outer cylinder design temperature: 60℃
Inner cylinder design temperature: -196℃
6.Shell material: Outer jacket: Q245-R; Inner: S30408.
7.Insulation: Vacuum powder insulation
8.Tare weight: About 6415KG
9.Filling rate: 0.95

Packaging of Cryogenic Storage Tank:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization

Cryogenic liquid storage and transportation equipment is widely used in industrial, agricultural, national defense and scientific research, and high-purity low-temperature storage and transportation equipment is mainly used in the electronics industry, cryogenic storage and transportation equipment is increasingly widely used, mainly because it is with the traditional cylinder gas than the advantages of transport, convenience, energy saving, safe and reliable, to ensure purity, to adapt to the broad, etc., China's low-temperature liquid equipment is high quality, variety, large capacity in the direction of development.
