ISO Standard Container

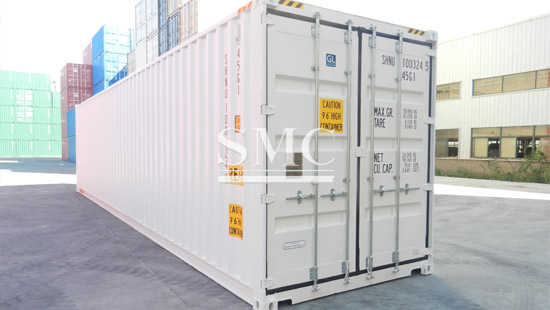

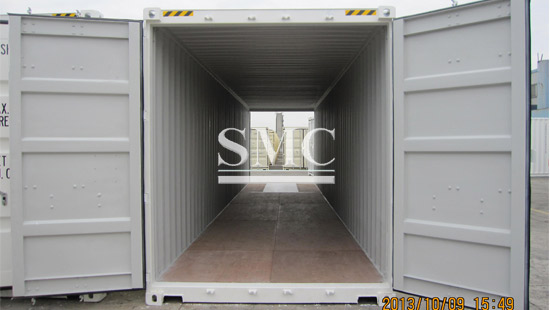

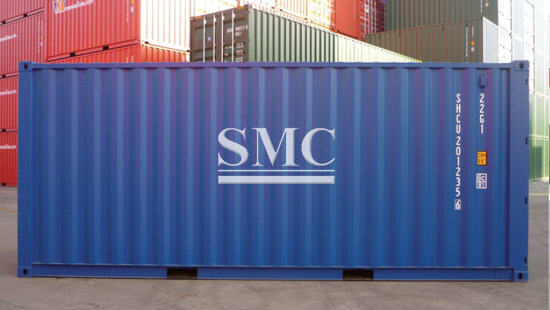

Double Door Container (20’DD/20’HCDD/40’DD/40’HCDD)

    Condition: Brand New



    Size: 20’DD/20’HCDD/40’DD/40’HCDD

Product Detail

DOUBLE DOOR CONTAINER is based on general purpose container, it opens at both ends and is strong, durable, and easy to repair. It conforms to ISO standard and is used for the road, rail and sea transportation.

If you want to know more about our container products or double door container price please feel free to contact us, we will reply you within 24 hours.


Dimensions and Capacities of 20 Feet and 20 Feet High Cube Double Door Containers

20ft Double Door Container

20ft High Cube Double Door Container

Dimension

Millimeter

Feet

Millimeter

Feet

External

Length

6,058

20'

6,058

20'

Width

2,438

8'

2,438

8'

Height

2,591

8'6"

2,896

9'6"

Internal

Length

5,844

19'2"

5,844

19'2"

Width

2,352

7'8.6"

2,352

7'8.6"

Height

2,391

7'10"

2,698

8'10"

Door
Opening

Width

2,340

7'8"

2,340

7'8"

Height

2,280

7'5.8"

2,585

8'5.8"

Weight

Kilogram

Pound

Kilogram

Pound

Max Gross Weight

30,480

67,200

30,480

67,200

Tare Weight

2,340

5,160

2,480

5,470

Maximum Payload

28,140

62,040

28,000

61,730

Internal Capacity

Cube Meter

Cube Feet

Cube Meter

Cube Feet

32.8

1,160

37.1

1,310

Allowable Stacking Weight1.8G

216,000

476,190

216,000

476,190

Dimensions and Capacities of 40 Feet and 40 Feet High Cube Double Door Containers:

40ft Double Door Container

40ft High Cube Double Door Container

Dimension

Millimeter

Feet

Millimeter

Feet

External

Length

12,192

40'

12,192

40'

Width

2,438

8'

2,438

8'

Height

2,591

8'6"

2,896

9'6"

Internal

Length

11,978

39'3.6"

11,978

39'3.6"

Width

2,352

7'8.6"

2,352

7'8.6"

Height

2,391

7'10"

2,698

8'10"

Door
Opening

Width

2,340

7'8"

2,340

7'8"

Height

2,280

7'5.8"

2,585

8'5.8"

Weight

Kilogram

Pound

Kilogram

Pound

Max Gross Weight

30,480

67,200

30,480

67,200

Tare Weight

4,050

8,930

4,200

9,260

Maximum Payload

26,430

58,270

26,280

57,940

Internal Capacity

Cube Meter

Cube Feet

Cube Meter

Cube Feet

67.4

2,380

75.9

2,680

Allowable Stacking Weight1.8G

216,000

476,190

216,000

476,190




General



1. Operational Environment

The container is designed and manufactured for the carriage of general cargo by marine, road, and rail. It is designed to maintain its structural and weather tight integrity within a temperature range of -30 degree C to 80 degree C.



2. ISO/TC

All to meet series 1 freight containers set forth.

ISO 830 Freight containers-Terminology.

ISO 668 Series 1 freight containers-Classification, external dimensions and ratings.

ISO 6346 Freight containers-Coding, identification and marking.

ISO 1161 Series 1 freight containers-Corner fittings-specification.

ISO 1496-1 Series 1 freight containers-Specification and testing-



3. T.I.R. Requirements and Certifications

The container shall comply with the customs convention of containers, 1972 and all subsequent revisions to date and will be identified with appropriate approval plates and markings.



4. Timber Component Treatment and Certification

All exposed timber components are treated with an Australian government approved insecticide and the container will be such identified with appropriate immunization plate.



5. CSC Requirements

The container will comply with the rules set forth in the International Convention for Safe Containers and will be so identified with a plate.



6. Classification Society

The container will be certified by Classification Society’s in design and individually during its production.



7. Transportation

The container will be constructed to be suitable for transportation in normal operating conditions by

modes of:

A. Marine - on deck or in cell guided by vertical or diagonal lashings

B. Rail - on flat or container car secured at its bottom corner fittings

C. Road - on flat or chassis secured at its bottom corner fittings



Warranty



1. Guarantee

The guarantee period will commence the day after the certification is issued by the classification society.



2. Paint Guarantee

The application of paint will be guaranteed against corrosion and paint failure for a period of three (3) years. The guarantee is for all faults affecting more than 10% of the painted surfaces and will assure partial or total re-painting of the containers. Normal wear/tear, or corrosion caused by acid, alkali or results of damages by abrasion, impact or accident are excluded.

Note: Corrosion is defined as rusting which exceeds RE3 (European scale of degree of rusting) on at least ten (10) percent of the total container surface coated with the concerned coating system.



3. Other Guarantee

This container will be guaranteed against any defects or omissions in constructions, workmanship and materials for a period of Twenty-four (24) months. In the event of defects, SMC will replace, correct or install to make the container satisfactory to this specification and its intended service at SMC's expense. Any damages caused by mis-handling, mis-securing, mis-loading, impact and any natures of accidents are excluded.
