Size: DN100-DN2600

Standard: ISO2531,GB/T13295

Usage: Widely used in connecting various pipelines to convey gas, water, oil and so on

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading Ductile Iron Double-socket Tapers manufacturer and supplier.

Ductile iron pipe fittings are made of magnesium or rare earth magnesium combined with gold spheroidizing agent, which is added into molten iron before pouring to spheroidize graphite to reduce stress concentration, so the pipe fittings have high strength, good toughness, high elongation, impact resistance, corrosion resistance and good sealing, as well as convenient installation of flexible interface, strong seismic resistance and low labor intensity.

If you want to know more about our Ductile Iron Double-socket Tapers, please feel free to contact us, we will reply you within 24 hours.

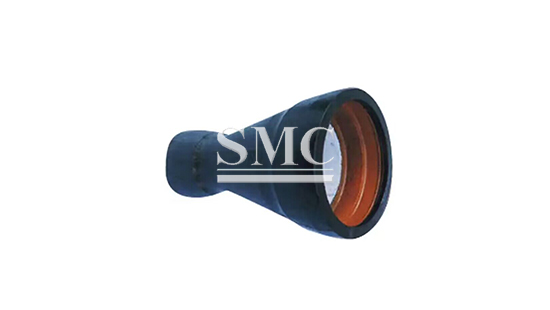

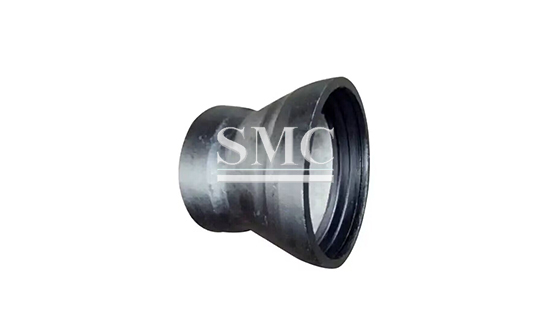

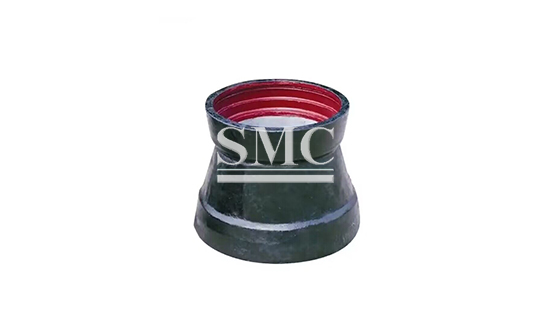

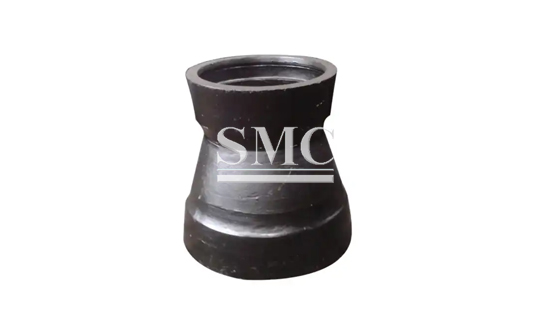

1.Type: concentric taper/eccentric taper

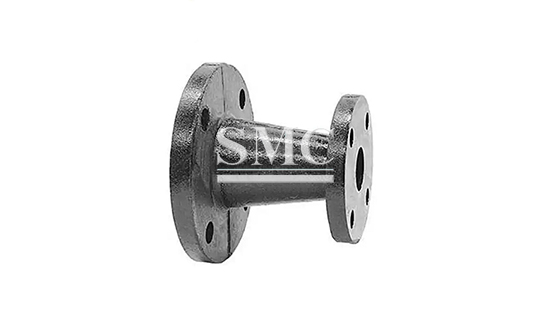

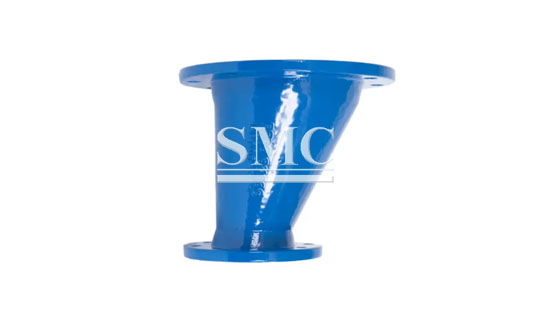

2.Connecting way: double-socket taper, double-flanged taper

3.Tensile strength≥310Mpa:

4.Elongation≥10%

5.Hardness≤150HB

6.Testing pressure:2.5Mpa

7.Working pressure: 1.6Mpa

8.Surface treatment: Hot dipped galvanized , electric galvanized, baked galvanized, black

9.Edges: Banded, beaded or plain, with ribs or without ribs

10.Color: red, blue, black

1.With high strength, good toughness, high elongation.

2.The product has a long service life and can be installed easily.

3.Strong corrosion resistance.

4.Good sealing.

1.Connect ductile iron pipes from the water source to waterworks or house.

2. It can be involved in the entire water cycle process including drinking water, raw water; Wastewater, or reclaimed water; Surface or underground water filtration; Seawater desalination, water treatment and storage.

Technical Information of Ductile Iron Double-socket Tapers:

DN/mm	e1/mm	DN/mm	e2/mm	L/mm	Total Weight(kg)		Standard
DN/mm	e1/mm	DN/mm	e2/mm	L/mm	T type	K type	Standard
100	7.2	80	7	90	8.5	12.3	ISO2531
150	7.8	80	7	190	13.5	17.5	ISO2531
200	8.4	80	7	290	20.5	23	ISO2531
250	9	80	7	390	28.5	31	ISO2531
300	9.6	80	7	490	39	42.9	ISO2531
350	10.2	80	7	220	63.6	74.5	ISO2531
400	10.8	80	7	700	64	71.4	ISO2531
450	11.4	80	7	800	87.9	88.5	ISO2531
500	12	80	7	900	101	109.8	ISO2531
600	13.2	80	7	1100	152	153	ISO2531
700	14.4	200	8.4	1080	215.9	212.9	ISO2531
800	15.6	400	10.8	880	285	277.9	ISO2531
900	16.8	400	10.8	1080	387.4	366.6	ISO2531
1000	18	600	13.2	880	476	445	ISO2531
1100	19.2	600	13.2	1080	588.5	558.4	ISO2531
1200	20.4	600	13.2	1280	745	691.8	ISO2531
1400	22.8	600	13.2	960	844.4	704.6	ISO2531
1600	25.2	800	15.6	960	1207	978.7	ISO2531
1800	27.6	1000	18	960	1547	1301	ISO2531
2000	30	1000	18	1160	/	1696	ISO2531
2200	32.4	1000	18	1360	/	2243	ISO2531
2400	34.8	1000	18	1460	/	2780	ISO2531
2600	37.2	1000	18	1560	/	3177	ISO2531

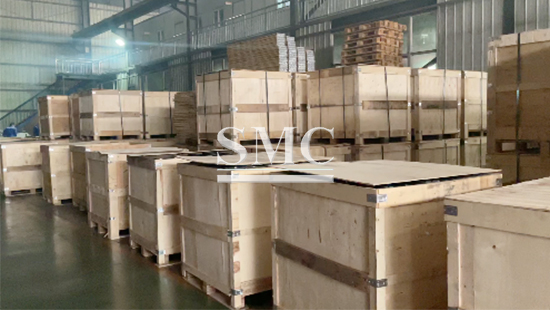

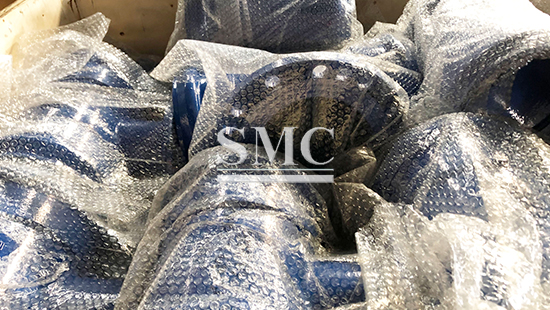

Packaging of Ductile Iron Double-socket Tapers:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization
