Diameter: 6mm~60mm

Structure: 6*19+FC/IWRC, 7*7+FC/IWRC, 7*19+FC/IWRC

Material: Galvanized steel

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of AFour Legs Wire Rope Sling with high quality and reasonable price.

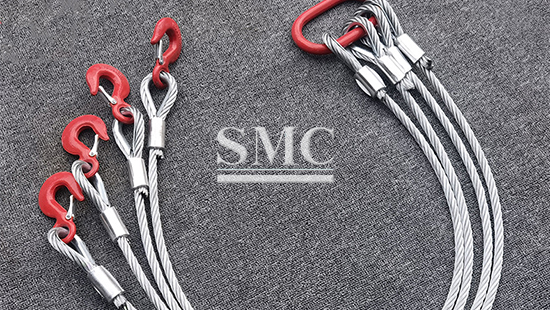

Four legs wire rope sling is a rope that is using galvanized steel wire rope as raw material. It consists of four limbs (steel wire ropes), namely two parallel arranged left limbs and two parallel arranged right limbs, which play a balance and support role in the entire sling system.

If you want to know more about Four Legs Wire Rope Sling price please feel free to contact us, we will reply you within 24 hours

Core: FC, IWRC

Tensile strength: 1670Mpa, 1770Mpa,1960Mpa, 2160Mpa

Standard: GB/T16762-2020

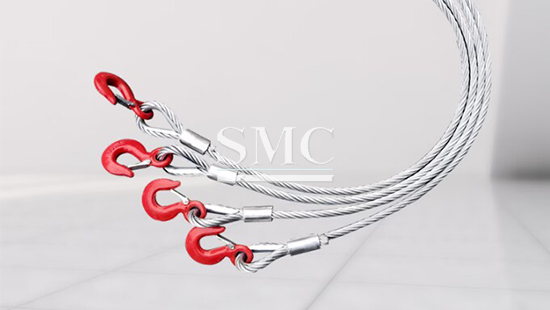

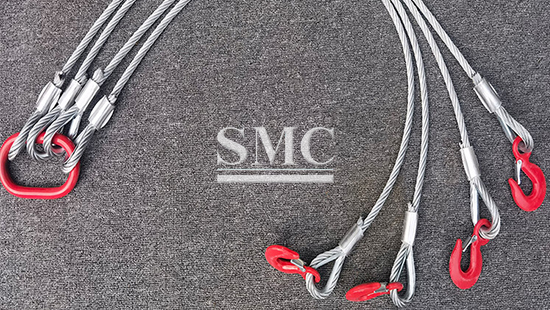

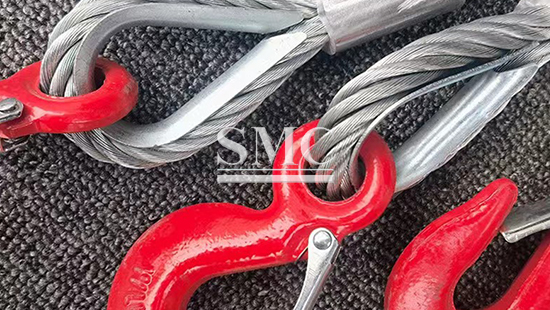

1. Four legs wire rope sling one side is lifting ring another side is hook.

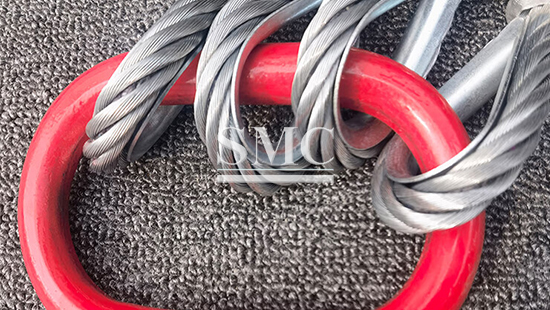

2. Four legs wire rope sling both ends of the steel wire rope are lifting ring.

1.Elevator

2.Architecture

3.Machine-made industry

4.Household products

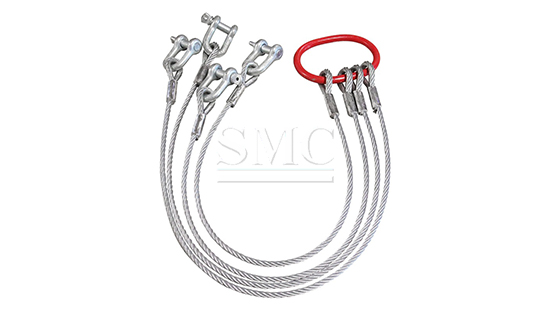

Technical Information of Four Legs Wire Rope Sling:

Sizes&Types	Diameter	Breaking load		Length	Main liting ring	AxBxd(mm)		Hook
Sizes&Types	mm	0~90°	90~120°	m	T	Main ring	Subring	T
SH06-013	6	0.73	0.52	0.5~10	3.8	7012016	519513	1.12
SH08-013	8	1.29	0.92	0.5~10	3.8	7012016	519513	1.12
SH09-013	9	1.63	1.17	0.5~10	3.8	7012016	519513	1.12
SH10-013	10	2.01	1.44	1~10	3.8	7012016	519513	1.12
SH11-013	11	2.44	1.74	1~10	3.8	7012016	519513	2
SH12-013	12	2.9	2.07	1~10	3.8	7012016	519513	2
SH13-013	13	3.4	2.43	1~10	3.8	7012016	519513	2
SH14-013	14	3.93	2.81	1~10	7.6	9017022	8015020	2
SH16-013	16	5.17	3.69	1~10	7.6	9017022	8015020	3.15
SH18-013	18	6.52	4.66	1~10	7.6	9017022	8015020	3.15
SH20-013	20	8.06	5.76	1~10	12.7	11021028	9017022	5.3
SH22-013	22	9.76	6.97	1~10	12.7	11021028	9017022	5.3
SH24-013	24	11.61	8.29	1~10	12.7	11021028	9017022	8
SH26-013	26	13.62	9.73	1~10	15.2	14027032	10019025	8
SH28-013	28	15.78	11.27	1~10	25	14027038	14027032	8
SH30-013	30	18.13	12.95	1~10	25	14027038	14027032	12.5
SH32-013	32	20.64	14.74	1~10	25	14027038	14027032	12.5
SH36-013	36	26.11	18.65	1.5~10	34	17032045	14027038	15
SH40-013	40	32.21	23.01	1.5~10	34	17032045	14027038	21.2
SH44-013	44	38.96	27.83	1.5~10	40	20038050	14027038	21.2

Packaging of Four Legs Wire Rope Sling:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

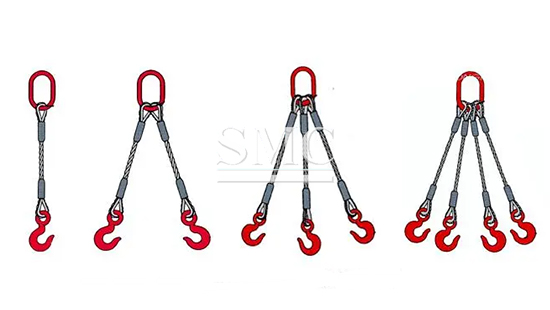

Notes:

1. The angle between the legs of the steel wire rope sling is flat and greater than 120 °;

2. Do not drag or drop wire rope slings from a height;

3. Steel wire rope slings with a storage period of more than 20 years must be sampled and subjected to tensile testing as required, and can only be used after passing the test;

4. Take effective measures to avoid bending or load collision of steel wire ropes at sharp corners.
