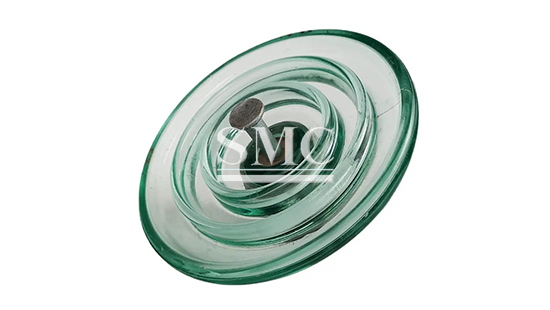

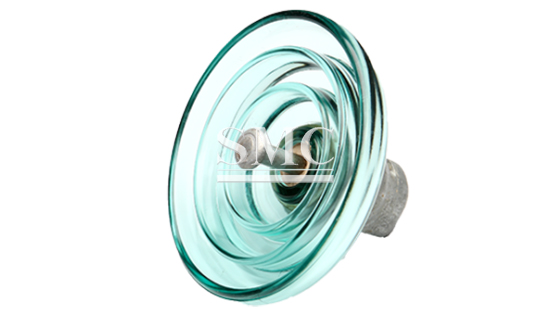

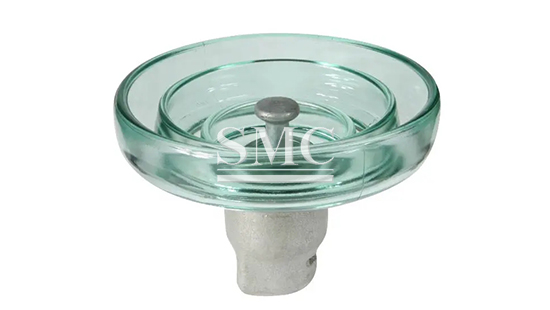

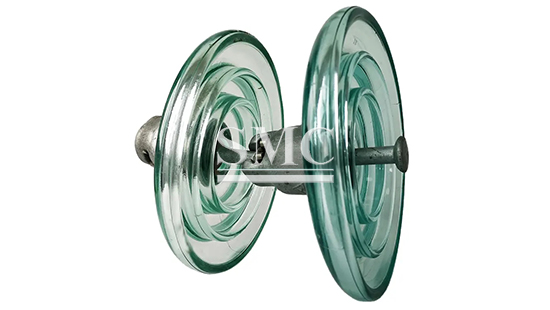

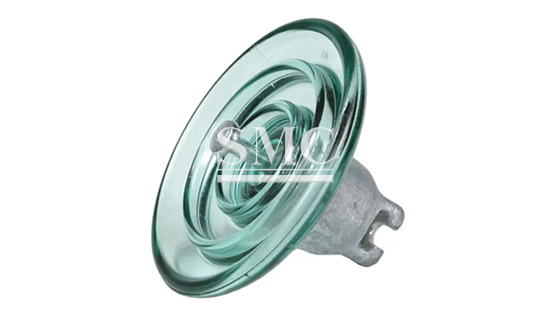

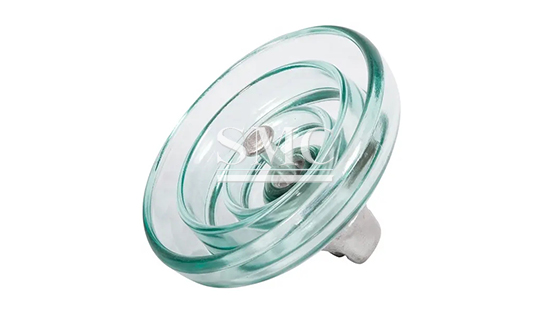

Glass Insulator
Material: glass
Application: high voltage
Shanghai metal corporation is a leading glass insulator manufacturer and supplier.

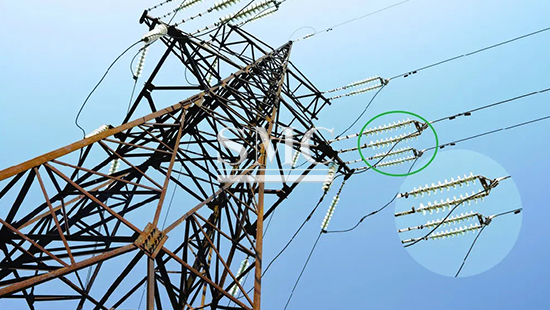

Glass disc insulators are used for insulating and fixing wires in high voltage overhead transmission and distribution lines. Different types of glass disc insulators are used on different voltage levels. LXP stands for glass disc insulators. 1, 2, 3, 4 is the design sequence number. The number 70, 100, 120, 160, 210, 240, 300, 420, 550 is the rated electromechanical failure load (KN).
If you want to know more about our glass insulator price pls feel free to contact us, we will reply you within 24 hours.
|
Model Number |
IEC Type |

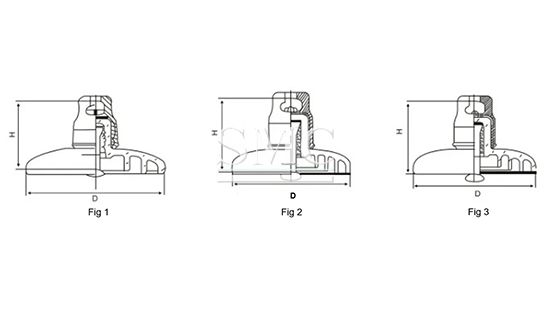

Fig |
H |
D |
Creepage Distange |
Rated E&M |
Power Frequency |
Net Weight |
|
LXP1/70 |
U70BL/146 |
1 |
146 |
255 |
320 |
70 |
130 |
3.6 |
|
LXP2/70 |
U70BS/127 |
1 |
127 |
255 |
320 |
70 |
130 |
3.5 |
|
LXP/100 |
U100BL/146 |
1 |
146 |
255 |
320 |
100 |
130 |
4.0 |
|
LXP2/100 |
U100BS/127 |
1 |
127 |
255 |
320 |
100 |
130 |
4.0 |
|
LXP/120 |
U120B/146 |
1 |
146 |
255 |
320 |
120 |
130 |
4.2 |
|
LXP2/120 |
U120BL/127 |
1 |
127 |
255 |
320 |
120 |
130 |
4.0 |
|
LXP/160 |
U160BL/170 |
1 |
170 |
280 |
400 |
160 |
130 |
6.5 |
|
LXP2/160 |
U160B/155 |
1 |
155 |
280 |
450 |
160 |
130 |
6.3 |
|
LXP3/160 |
U160BS/155 |
1 |
155 |
280 |
400 |
160 |
130 |
6.3 |
|
LXP4/160 |
U160BS/146 |
1 |
146 |
280 |
400 |
160 |
130 |
6.3 |
|
LXP1/210 |
U210B/170 |
1 |
170 |
280 |
460 |
210 |
130 |
6.9 |
|
LXP2/210 |
U210BL/170 |
1 |
170 |
280 |
400 |
210 |
130 |
6.9 |
|
LXP/240 |
U240B/170 |
2 |
170 |
280 |
400 |
240 |
130 |
6.9 |
|
LXP2/240 |
U240B/170 |
2 |
170 |
280 |
460 |
240 |
130 |
6.9 |
|
LXP/300 |
U300B/195 |
3 |
195 |
320 |
485 |
300 |
130 |
10.6 |
|
LXP/420 |
U420/205 |
3 |
205 |
360 |
550 |
420 |
130 |
16.0 |
|
LXP/550 |
U550B/240 |
3 |
240 |
380 |
620 |
550 |
130 |
21.5 |
