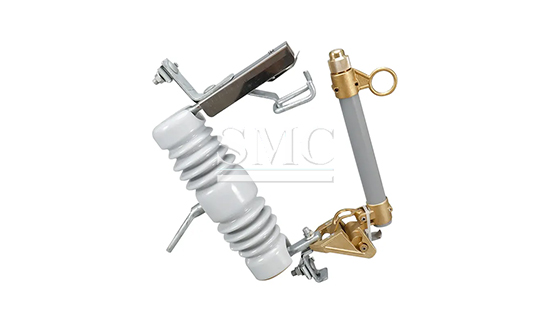

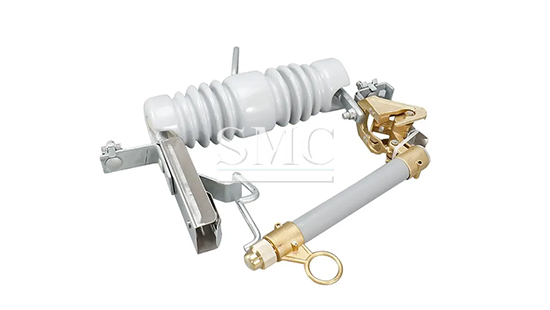

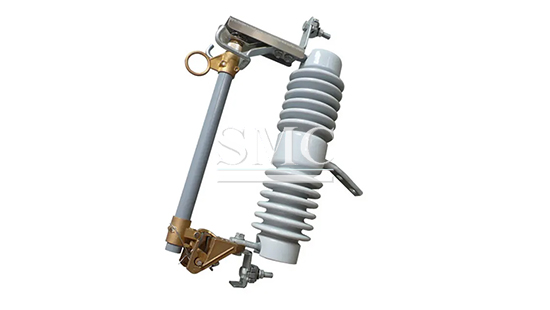

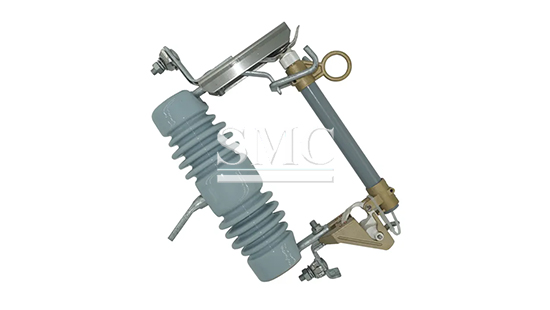

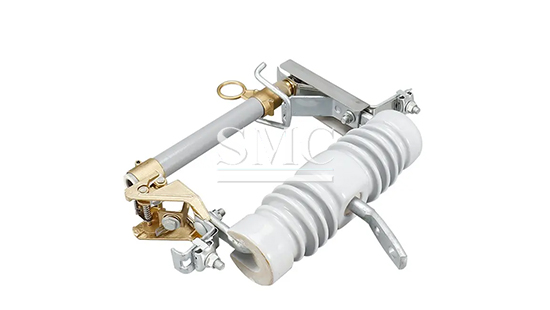

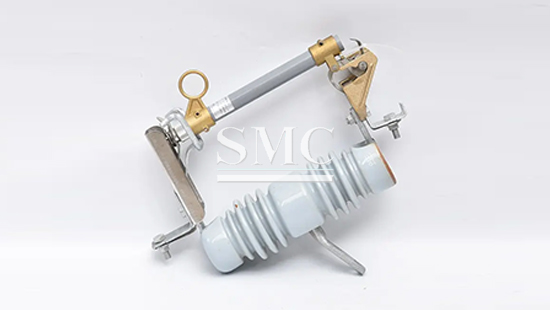

High Voltage Drop Out Fuse
Breaking Capacity: High
Rated voltage: 11KV-36KV
Fuse tube material: Fiber glass
Colour: White
Safety Standards: IEC
Shanghai Metal Corporation is a High voltage drop out fuse manufacturer and supplier.
SMC is a company specializing in the production of high and low voltage switch power transmission and distribution equipment and high, low voltage electrical components, one of the professional production enterprises, the production of all fully insulated and fully sealed inflatable cabinet, intelligent solid insulation ring main unit, outdoor high voltage cable branch box, box-type substation, etc. Product quality is stable, reliable, It is deeply trusted and approved by the customers.
If you want to know more about our electrical products or high voltage drop out fuse price please feel free to contact us, we will reply you within 24 hours.
Technical Information of High Voltage Drop Out Fuse:
|
Type |
Rated Voltage |
Rated Current(A) |
Breaking Current(A) |
Impulse Voltage |
Power-frequency withstand voltage(KV) |
Creepage Distance |
Weight |
Dimension |
|
(kv) |
(BIL)(KV) |
(mm) |
(kgs) |
(cm) |
||||
|
YK1-11 |
11-15 |
100 |
8000 |
110 |
40 |
240 |
6.5 |
|
|
11-15 |
200 |
10000 |
110 |
40 |
240 |
6.5 |
40*36*11.5 |
|
|
YK1-15 |
15-27 |
100 |
8000 |
125 |
45 |
320 |
8.5 |
|
|
15-27 |
200 |
10000 |
125 |
45 |
320 |
8.5 |
50*32*12.5 |
|
|
YK1-24 |
24-27 |
100 |
8000 |
150 |
65 |
510 |
10 |
|
|
24-27 |
200 |
10000 |
150 |
65 |
510 |
10 |
50*38*16 |
|
|
YK1-33 |
33-36 |
100 |
8000 |
170 |
70 |
660 |
13 |
|
|
33-36 |
200 |
10000 |
170 |
70 |
660 |
13 |
64*35*18 |
|
Type |
Rated Voltage(kv) |
Rated Current(A) |
Breaking Current |
Impulse Voltage |
Power-frequency withstand voltage(KV) |
Creepage Distance |
Weight |
Dimension |
|
(A) |
(BIL)(KV) |
(mm) |
(kgs) |
(cm) |
||||
|
HYK1-15 |
11-15 |
100 |
8000 |
110 |
40 |
320 |
5 |
|
|
11-15 |
200 |
10000 |
110 |
40 |
320 |
5 |
40*36*11.5 |
|
|
HYK1-24 |
24-27 |
100 |
8000 |
150 |
65 |
540 |
6 |
|
|
24-27 |
200 |
10000 |
150 |
65 |
540 |
6 |
50*38*16 |
|
|
HYK1-33 |
33-36 |
100 |
8000 |
170 |
70 |
720 |
7 |
|
|
33-36 |
200 |
10000 |
170 |
70 |
720 |
7 |
64*34*16 |
|
|
YK3-15 |
11-15 |
300 |
8000 |
110 |
40 |
240 |
6.5 |
|
|
11-15 |
400 |
1000 |
110 |
40 |
240 |
6.5 |
40*36*11 |
|
Name |
Parameter |
|||
|
Type |
IFC-12 |
|||
|
Rated Voltage(kv) |
12 |
|||
|
Rated Frequency(HZ) |
50 |
|||
|
Fuse-base rated current(A) |
50 /100 |
|||
|
Fuse-rated current(A) |
6, 10, 15, 20, 25, 30, 40, 50, 65, 75, 80, 100 |
|||
|
Rated breaking current(KA) |
12.5 |
|||
|
Mechanical stability(Times) |
500 |
|||
|
Insulation class |
B |
|||
|
Insulating property |
name |
Power-frequency withstand voltage(KV) |
Power-frequency withstand (wet)(KV) |
Lightning impulse(KV) |
|
To Ground |
42 |
30 |
75 |
|
|
Fracture |
48 |
36 |
85 |
|
Packaging of High Voltage Drop Out Fuse:
Shanghai Metal Products are packed and labeled acording to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
