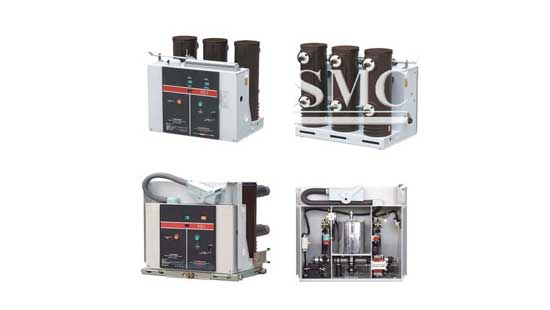

High Voltage Vacuum Circuit Breaker

    Rated current:630A/1250A/1600A



    Rated voltage:12KV


    Brand Name: as per customer request

Brand Name:as per customer request
Model Number:VS1-12
Type: Vacuum
Poles Number:3
Rated current:630A/1250A/1600A
Rated voltage:12KV

VS1-12 Series side-mounted vacuum circuit breaker is an indoor switchgear mainly used in three-phase12KV AC50Hz power system,

it’s used as protective and control unit. Due to the special advantage of vacuum circuit breaker, Due to the special advantage of

vacuum circuit breaker, it’s especially suitable for places requiring frequent operation under rated operating current or multi-time

short-circuit breaking.VS1-12 side-mounted vacuum circuit breaker is an indoor switchgear is fixedly installed, and is mainly used for

fixed type switch cabinet. It can be used independently or used for ring main unit, box substation and various non-standard power system.

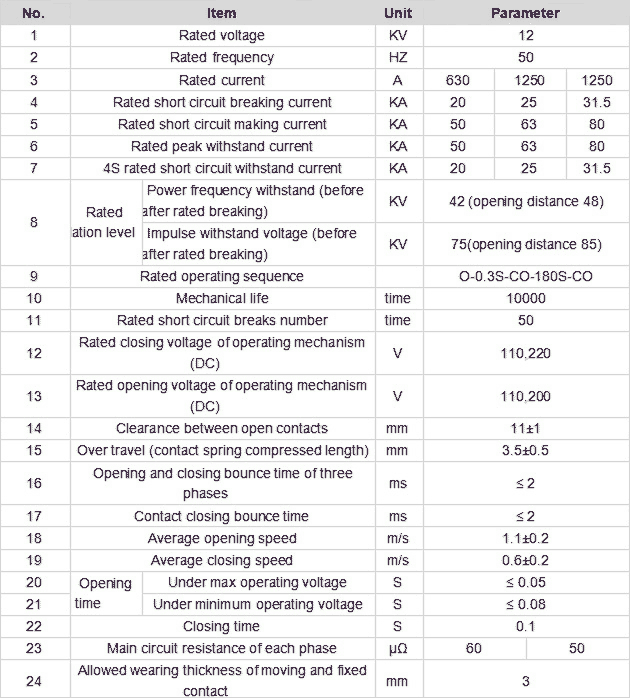

Main Technical Parameters:

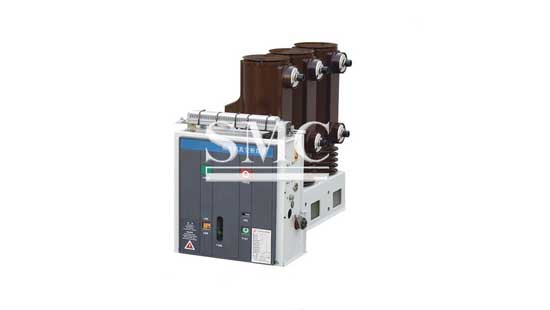

Packaging of High Voltage Vacuum Circuit Breaker:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization
