Flexible Insulated Copper Busbar
Conductor Material：C1100 Copper
Insulation Material：PVC, TPE
Color：Red, Black
Single Foil Thickness：0.8mm, 1.0mm
Shanghai Metal Corporation is a leading Flexible Insulated Copper Busbar manufacturer and supplier.

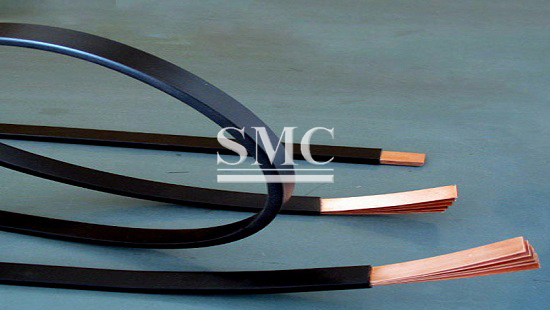

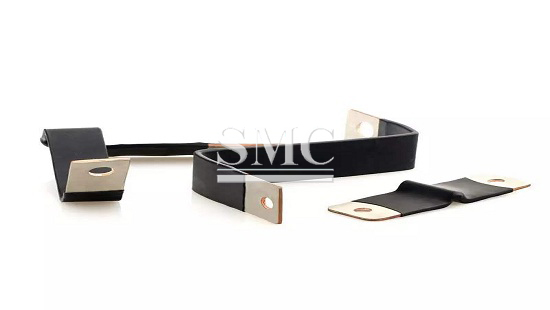

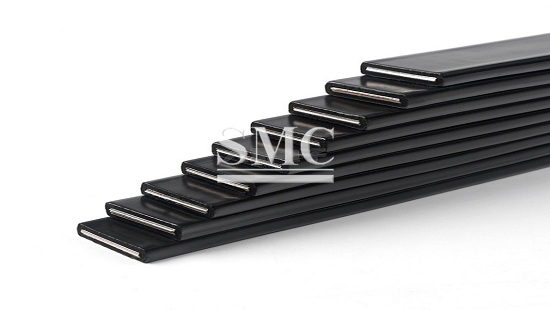

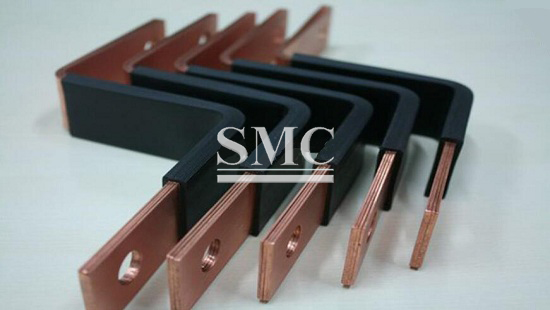

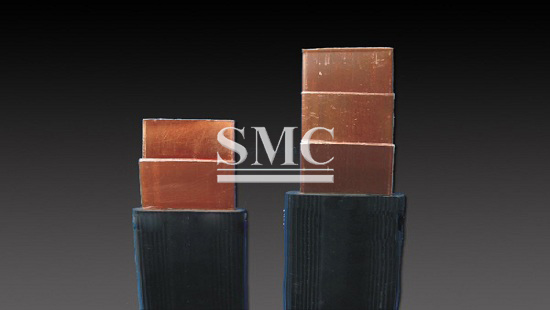

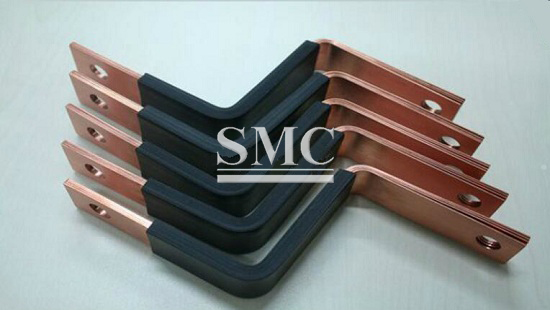

Insulated soft busbar, also known as laminated insulated soft busbar, flexible busbar, are made of multilayer highly flexible flat thin copper conductor, and the outer layer is made of an insulating layer covered by an extrusion method.
If you want to know more about our Flexible Insulated Copper Busbars price please feel free to contact us, we will reply you within 24 hours.
-
1. Conductor
T2 soft copper tape. Divided into bare copper and tinned copper. Copper strip sizes are 9×0.8, 16×0.8, 20×1, 24×1, 32×1, 40×1, 50×1, 63×1, 80×1, 100×1, and the number of layers is from 2 to 12 pieces.
2. Insulation layer
Specialty polyvinyl chloride (PVC) and thermoplastic elastomer (TPE).
3. Production standards
GB/T5023 insulated cable standard and UL758 electronic wire standard.
-
-

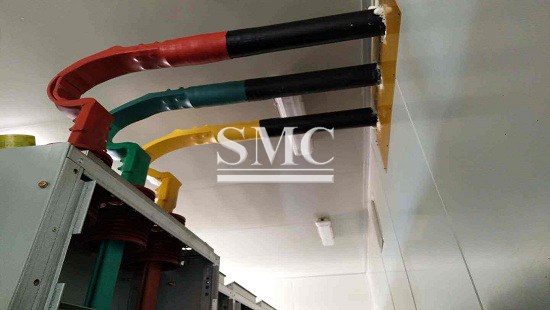

Due to the excellent characteristics of soft busbar, it has become the first choice for electrical wiring, and will gradually replace the application of cables in electrical wiring. The main application areas are:
1. Energy and Electricity
2. Transportation
3. Industrial buildings
4. Power Distribution System
5. Machinery Heavy Industry
-
|
The current-carrying capacity of the insulated soft busbar is related to the cross-sectional area and temperature of the busbar. The following table shows the maximum current-carrying capacity at an ambient temperature of 35 degrees Celsius and the temperature of 85 degrees Celsius after the busbar is energized. |
|||
|
Specification |
Cross-sectional area |
Safe carrying capacity |
Maximum current carrying capacity |
|
16*0.8*2 |
25.6 |
125A |
200A |
|
16*0.8*3 |
38.4 |
160A |
240A |
|
16*0.8*4 |
51.2 |
195A |
300A |
|
16*0.8*6 |
76.8 |
225A |
360A |
|
16*0.8*8 |
102.4 |
265A |
430A |
|
16*0.8*10 |
128 |
300A |
480A |
|
20*1*2 |
40 |
170A |
270A |
|
20*1*3 |
60 |
230A |
360A |
|
20*1*4 |
80 |
270A |
440A |
|
20*1*5 |
100 |
300A |
490A |
|
20*1*6 |
120 |
330A |
530A |
|
20*1*8 |
160 |
400A |
620A |
|
2O*1*10 |
200 |
420A |
650A |
|
24*1*2 |
48 |
200A |
320A |
|
24*1*3 |
72 |
250A |
410A |
|
24*1*4 |
96 |
280A |
460A |
|
24*1*5 |
120 |
330A |
530A |
|
24*1*6 |
144 |
360A |
570A |
|
24*1*8 |
192 |
420A |
670A |
|
24*1*10 |
240 |
500A |
790A |
|
32*1*2 |
64 |
230A |
360A |
|
32*1*3 |
96 |
280A |
460A |
|
32*1*4 |
128 |
320A |
520A |
|
32*1*5 |
160 |
390A |
610A |
|
32*1*6 |
192 |
440A |
700A |
|
32*1*8 |
256 |
510A |
820A |
|
32*1*10 |
320 |
600A |
930A |
|
40*1*2 |
80 |
240A |
380A |
|
40*1*3 |
120 |
330A |
540A |
|
40*1*4 |
160 |
400A |
630A |
|
40*1*5 |
200 |
450A |
710A |
|
40*1*6 |
240 |
480A |
750A |
|
40*1*8 |
320 |
600A |
920A |
|
40*1*10 |
400 |
670A |
1030A |
|
50*1*3 |
150 |
400A |
650A |
|
50*1*4 |
200 |
490A |
790A |
|
50*1*5 |
250 |
540A |
880A |
|
50*1*6 |
300 |
590A |
950A |
|
50*1*8 |
400 |
680A |
1130A |
|
50*1*10 |
500 |
750A |
1300A |
|
63*1*5 |
315 |
650A |
1000A |
|
63*1*6 |
378 |
690A |
1100A |
|
63*1*8 |
504 |
840A |
1350A |
|
63*1*10 |
630 |
920A |
1450A |
|
80*1*5 |
400 |
700A |
1230A |
|
80*1*6 |
480 |
780A |
1360A |
|
80*1*8 |
640 |
950A |
1570A |
|
80*1*10 |
800 |
1090A |
1730A |
|
100*1*5 |
500 |
860A |
1400A |
|
100*1*6 |
600 |
950A |
1530A |
|
100*1*8 |
800 |
1100A |
1760A |
|
100*1*10 |
1000 |
1220A |
1920A |
|
100*1*12 |
1200 |
1300A |
2010A |
