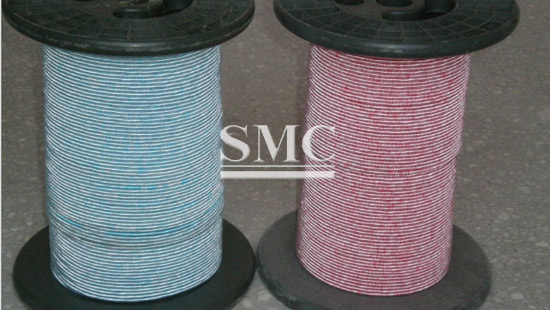

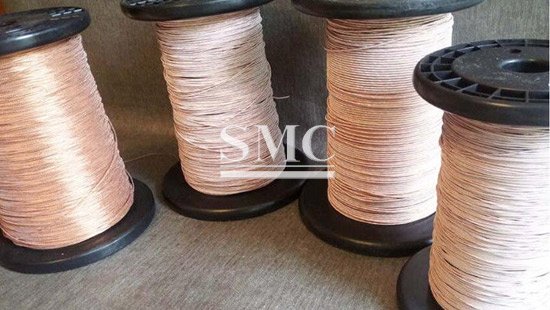

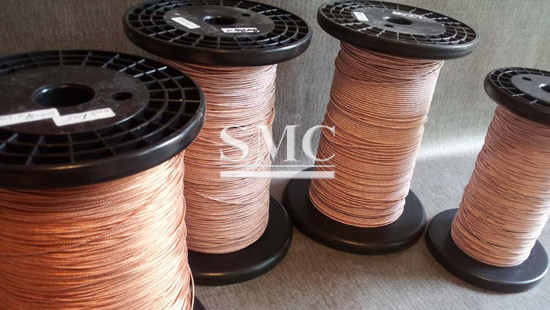

Litz wire
.jpg)
Conductor Material: Copper
Insulation Material: Enameled
Conductor Type: Stranded
1. Conductor Material: Copper
2. Insulation Material: Enameled
3.Conductor Type: Stranded

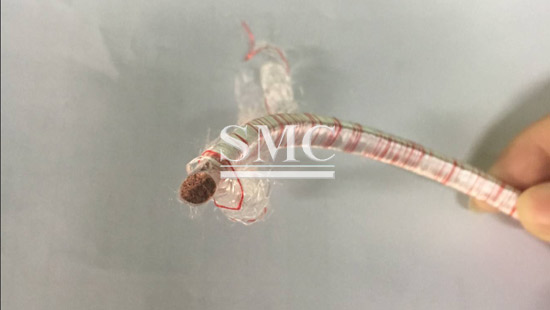

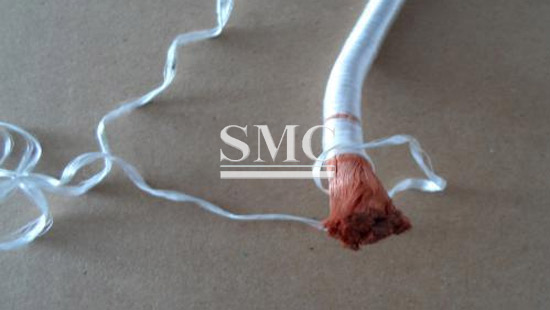

4.Type: Insulated(with polyester yarn or with Taping standard Polyester (PET))
5. Typical applications are: high frequency inductors, transformers, frequency converters, fuel cells, madas, communications and IT equipment, ultrasonic equipment, sonar equipment, television, radio equipment and so on
Technical information of Litz Wire:
1. USTC: <250*0.1mm silk coated 155°C 1000V
2. USDC: ≥250*0.1mm silk coated 155°C 1000V
3. USAC: 4*0.1 ~ 22000*0.1mm silk coated (double) 155°C 1000V
4. USEC: 250*0.1 ~ 22000*0.1mm silk winding+braiding 155°C 1000V
5. USGC: 100*0.1 ~ 22000*0.1mm silk coated(white+red) 155°C 2500V
6. USPI: >100*0.1 PI Film 230°C 3000V
We still can do USPI-Z, 2USPI, USGB, USGC*2, 2UEW etc.
Production flow chart of Litz Wire:

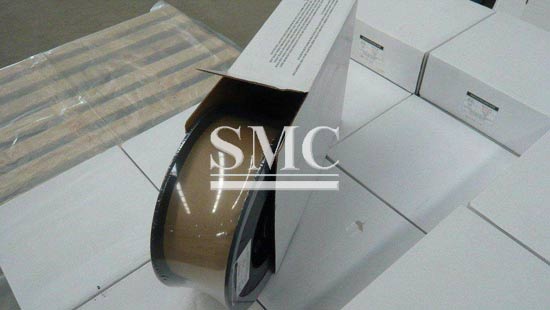

Packaging of Litz Wire:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests.
Great care is taken to avoid any damage which might be caused during storage or transportation.
In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
3)Packing: 3-4kgs/reel, carton.

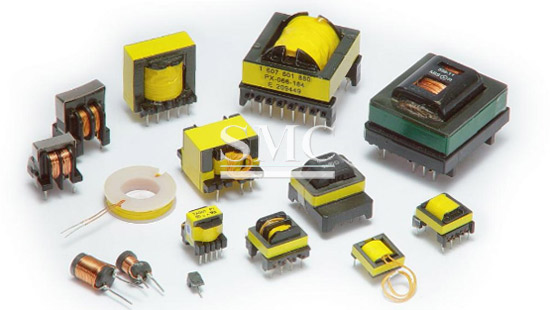

Applications of Litz Wire:
high frequency inductors, transformers, frequency converters, fuel cells, madas, communications and IT equipment, ultrasonic equipment, sonar equipment, television, radio equipment and so on
