High Carbon, Special Steel

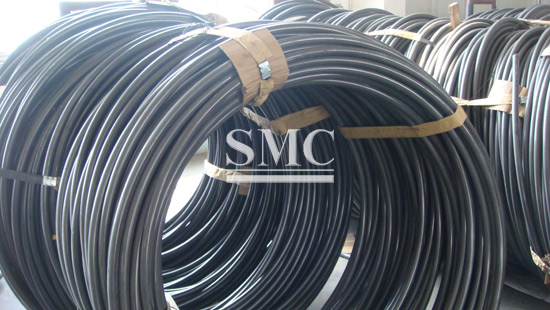

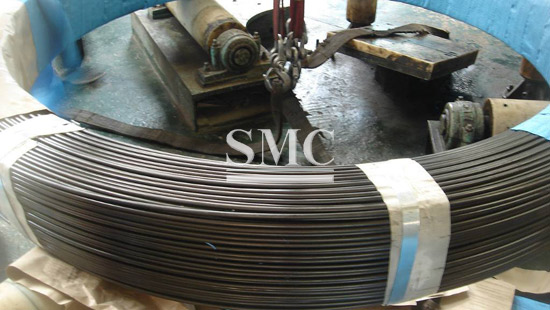

Oil Hardened and Tempered Spring Steel Wire

Steel grade: 55CrSi, VDSiCr, FDSiCr,60Si2Mn,65MN,SAE9254V.etc

Size: 1.4-16mm

Surface: Black+Oiled

Product Detail | Technical Information | Packaging | More

Product Detail

Oil Tempered Spring wire is produced by taking usually a silicon-chrome steel and hardening inline to tensiles of around 2000MPa. Oil tempered wire is widely used in the automotive industry for different applications but predominantly suspension springs and valve springs. oil tempered wires are classified as different grades according to the fatigue stress/kinetic requirements of the spring. For example, valve springs will be exposed to high levels of kinetic movement so that requires VD quality material. The specification for VD requires all wire to be final Eddy Current Tested to ensure that any inclusions in the wire are found and highlighted to the spring manufacturer. The number of inclusions found in the wire can be greatly reduced by shaving the wire rod prior to drawing. This is where around 20-40 microns of material is removed from the outer surface of the wire, therefore physically removing inclusions. Wire can then be further processed to super clean.

Shanghai Metal Corporation is a professional manufacturer and supplier of Oil Hardened and Tempered Spring Steel

Wire with high quality and reasonable price. If you want to know more about Oil Hardened and Tempered Spring

Steel Wire products or Oil Hardened and Tempered Spring Steel Wire price please feel free to contact us, we will reply

you within 24 hours.

Details of Oil Hardened and Tempered Spring Steel Wire:

Steel grade: 55CrSi, VDSiCr, FDSiCr,60Si2Mn,65MN,SAE9254V.etc.
Size: 1.4-16mm
Surface: Black+Oiled .
Coil weight: 2000 kg
Usage: For making screw springs,railway springs,OTMB springs and so on
Package: Waterproof membrane + PVC +steel truss or depends on customer's requirment
Wire rod process flow:Bllets RHF-Water descaling-Rolling Laying head Conti ol cooling Finishing,Packing,Warehousing.

Chemical Composition (mass fraction) %

Code	C	Si	Mn	P max.	S max.	Cr	V	Cu max.
FDC	0.60-0.75	0.10-0.35	0.50-1.20	0.030	0.030			0.20
TDC				0.020	0.025			0.12
VDC
FDSiMn	0.56-0.64	1.50-2.00	0.60-0.90	0.035	0.035			0.25
TDSiMn
FDCrSi	0.5-0.6	1.20-1.60	0.50-0.90	0.030	0.030	0.50-0.80		0.20
TDCrSi				0.025	0.025			0.12
VDCrSi

Mechanical and technological properties and quality requirments for wire grades FDC, FDCrV, FDSiCr and FDSiCrV

Nominal wire diameter	Permissible deviations	Tensile strength Rm /MPa
/mm	/mm	FDCb	FDCrVb	FDSiCrb	FDSiCrVb
0.80	±0.015	1860-2060	1960-2160	2100-2300	2280-2430
1.00	±0.020	1810-2010	1900-2100	2070-2260	2280-2430
1.30		1790-1970	1870-2070	2060-2250	2260-2410
1.40		1760-1940	1840-2030	2040-2220	2260-2410
1.60	±0.025	1720-1890	1790-1970	2000-2180	2210-2360
2.00		1670-1820	1750-1900	1970-2140	2160-2310
2.50		1640-1790	1720-1870	1950-2120	2110-2260
2.70	±0.030	1620-1770	1700-1850	1930-2100	2110-2260
3.00		1600-1750	1680-1830	1910-2080	2110-2260
3.20		1580-1730	1660-1810	1900-2060	2110-2260
3.50		1550-1700	1620-1770	1870-2030	2060-2210
4.00	±0.035	1540-1690	1610-1760	1860-2020	2060-2210
4.20		1520-1670	1590-1740	1850-2000	2060-2210
4.50		1510-1660	1580-1730	1840-1990	2010-2160
4.70		1500-1650	1560-1710	1830-1980	2010-2160
5.00		1470-1620	1540-1690	1800-1950	2010-2160
5.60	±0.040	1460-1610	1520-1670	1780-1930	1960-2110
6.00		1440-1590	1510-1660	1760-1910	1960-2110
6.50		1430-1580	1500-1650	1740-1890	1960-2110
7.00	±0.045	1400-1550	1480-1630	1710-1860	1910-2050
8.00	±0.045	1380-1530	1470-1620	1700-1850	1890-2030
8.50	±0.050	1360-1510	1450-1600	1660-1810	1870-2010
10.00	±0.070	1320-1470	1430-1580	1620-1770	1830-1970
12.00	±0.080	1280-1430	1420-1570	1580-1730	1790-1930
14.00	±0.080	1270-1420	1410-1560	1570-1720	1780-1920
15.00	±0.090	1250-1400	1400-1550	1550-1700	1760-1900
b 1 Mpa =1 N/mm2

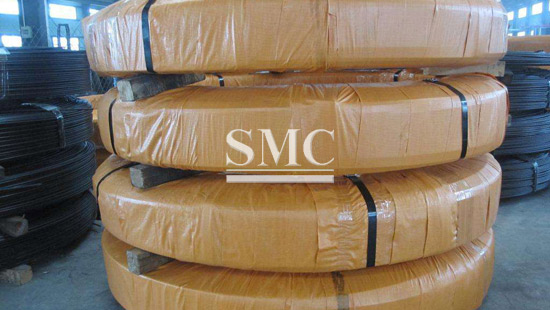

Packaging of Oil Hardened and Tempered Spring Steel Wire:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

Service

To meet the entirety of our customers business needs, Shanghai Metal Corporation offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery. Shanghai Metal Corporation prides itself on achieving superior results and satisfying customer needs. In this, we earnestly strive to fulfill our role as trustworthy and reliable supplier of business services throughout the entire world.

Our Value-Added Manufacturing Services not only save our customer time from having to out-source, but also spare them the cost of dealing with several disparate shops and deadlines.

Oil Tempered Spring wire for suspension applications where the fatigue stresses are not as high use a FD or TD class of material. For FD class of material, eddy current test is not essential and is often not specified by spring manufacturers, as the risk for failure in static applications is not as high as for springs with high kinetic stresses. It is vital that high quality wire rod is used for oil tempered wires as the number of inclusions from poorer quality rod manufacturers can be high, therefore increasing the risk of a spring failure.

Another application for oil tempered wire is for clutch springs. This is classed as medium to high fatigue stress and TD is usually specified for this application. TD is final ECT reducing the chance of inclusions being used in the spring, reducing the risk of a failure greatly.

Advantages of Oil Hardened and Tempered Spring Steel Wire：

Can be customized as customer’s requirement.

High tensile strength

The surface is smooth and flawless

The production line has passed the environmental assessment

More than ten years of working experience

More than 100 customers trust
