Stainless Steel Sheet

PVD Coating/ Coloured Stainless Steel Sheet

    Thickness: 0.4 - 3.0 mm


    Grade: SUS304.SUS316.etc


    Color: gold,pink,red,blue,green,black,etc.

Specifications of Colored Stainless Steel Sheet:


1) Thickness: 0.4 - 3.0 mm
2) Normal Width:
a) 1,000mm
b) 1,219mm
c) Customized, but not more than 1,219mm
3) Length scale: 100 - 5,000mm
4) Cut precision: length, width ±0.5mm
5) Cater-corner error: <0.5mm
6) Product materials: SUS304, SUS316, SUS430, SUS439, etc.
7) Common specification: 1000mm*2000mm ,1219mm*2438mm


PVD Coating Stainless Steel:


1. What’s PVD coating

PVD coating means Physical Vapor Deposition of Titanium or Zirconium, can also be called Titanium/Zirconium-plating.

It provides a colored film over the stainless steel substrate in a vacuum chamber. The colored film could last long time without fading under normal interior or exterior environment.



2. How it works

Metal or alloy is vaporized from a solid(Cathode)by means of electric arc to form a plasma vapor, the resulting highly charged metal lons from the plasma are then mixed with inerted gas such as argon gas. The positively charged plasma is attracted to the negatively charged stainless steel sheets, producing a colored metallic film on the sheets.



Color does net fade or oxidize as do the red metals such as copper and brass. By altering the temperature, mix of gasses and elements that form the plasma, Top Honest has developed a broad range of coatings colors.



3. Life Time Finish---PVD Coating

Unlike traditional electroplating and other existing coatings, due to several characteristics of PVD coating: high hardness and wear resistance, no discoloration or tarnishing, high corrosion resistance and no attack by UV radiation, Top Honest PVD coating stainless steel is a unique material for decorating application:



(A). Will not tarnish, oxidize, or discolor in harsh sun, salt, humidity and city environments.

(B). Impervious to extended exposure to UV light with no flaking, cracking or discoloration.

(C). Available in a wide range of colors, surface patterns and finishes.



4. PVD coating colors

Gold, Brass, Rose Gold, Silver, Smoke grey, Black, Copper, Bronze, Blue, Purple, Brown, Wine Red, etc.



Producing process

Cold rolled


Hot rolled

APPLICATION

Stainless steels of various kinds are used in thousands of applications. The following gives a flavour of the full range:

1.Domestic

– cutlery, sinks, saucepans, washing machine drums, microwave oven liners, razor blades

2.Transport

– exhaust systems, car trim/grilles, road tankers, ship containers, ships chemical tankers, refuse vehicles

3.Oil and Gas

– platform accommodation, cable trays, subsea pipelines.

4.Medical

– Surgical instruments, surgical implants, MRI scanners.

5.Food and Drink

– Catering equipment, brewing, distilling, food processing.

6.Water

– Water and sewage treatment, water tubing, hot water tanks.

7.General

– springs, fasteners (bolts, nuts and washers), wire.

8.Chemical/Pharmaceutical

– pressure vessels, process piping.

9.Architectural/Civil Engineering

– cladding, handrails, door and window fittings, street furniture, structural sections,reinforcement bar, lighting columns, lintels, masonry supports

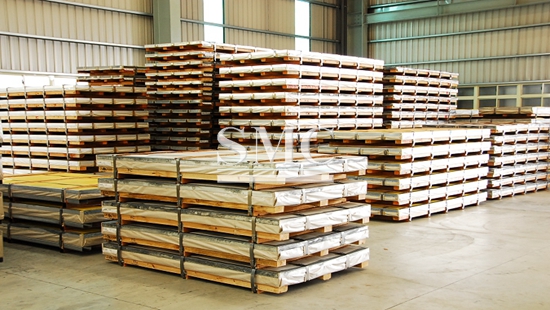

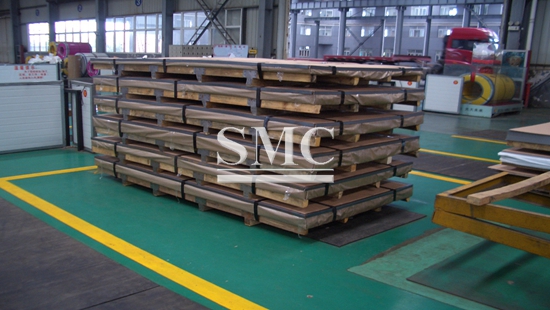

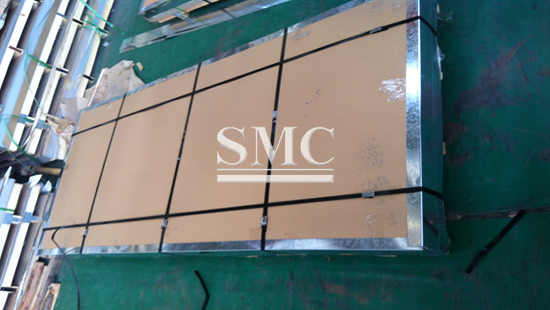

Packing Information of Stainless Steel Sheet/Plate:


Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.



Applications of Colored Stainless Sheet:


1. Building applications

a) Column covers

b) Elevator doors

c) Escalators and moving walk cladding

d) Ornamental and decorative cladding

e) Hotel entrances

f) Architectural trims and accents

g) Telephone booth

h) More

2. Home fixture applications:

a) Kitchen appliances

b) Cabinets

c) Doors

d) Mail boxes

e) More

3. Industrial fixtures applications:

a) Medical instruments

b) Electrical products

c) Refrigerator

d) Hardware

e) More



Feature of Coloured Stainless Steel Sheet:


Coloured stainless steel is of non-toxic, good corrosion resistance, good abrasion resistance, etc. With different illumination angle, color and luster can produce changeable color effect. Coloured coating can maintain its original property at minus 200 degrees centigrade. Meanwhile, its salt spray corrosion resistance is better than normal stainless steel.



Stainless steel sheets are mainly used for decorative interior and exterior wall panels, ceilings, doors, windows, columns, staircase handrails, elevator and roof tiles of ancient architecture. Additionally, it also can be used to manufacture anti-corrosion equipment, plaques, advertising wall, boards, decorative patterns, instrument panels and all types of vehicles decorated boards.



FAQ

Q1:How many countries you already exported?

A1:Exported to more than 50 countries like Canada, United States, Kuwait, Egypt, Iran, Turkey, Jordan, Singapore etc.


Q2:How can I get some samples?

A2:Small samples in store and can provide the samples for free. Catalogue is available. Customized samples will take about 3-5days.


Q3:What is the MOQ?

A3:Stainless steel sheets 1 tons for stock material.


Q4:What is the delivery ?

A4:Sample order’s delivery time is 3- 5days. Regular orders are about 15-20 days.


Q5:How does your company do regarding quality control?

A5:Third party inspection like BV and SGS reports, production process followed the ISO 9001 system.
