Enamelled Copper Wire , PTFE Wire

Rectangular Enameled Copper Wire

    Thermal Class: 120℃ ,130℃ ,155℃, 180℃ ,200℃, 240℃



    Rross section range: 2mm2 - 80mm2



    Standard: IEC 60317-16, 60317-16/28, MW36 60317-29 BS6811, MW18 60317-18, MW20 60317-47

Specifications of Rectangular Enameled Copper Wire:
1) Flat wire thickness: 0.80mm - 5.60mm
2) Flat wire width: 2.00mm - 16.00mm
3) Width/thickness ratio:1.4<w/t<8.0
4) Type: enamelled copper wire
5) Standard: IEC 60317-16, 60317-16/28, MW36 60317-29 BS6811, MW18 60317-18, MW20 60317-47
6) Thermal Class: 120℃ ,130℃ ,155℃, 180℃ ,200℃, 240℃
7) Cross section range: 2mm2 - 80mm2
8) Range of insulation thickness: IEC60317-0-2 G1, 0.06-0.11mm; G2, 0.12-0.17mm
9) Enamel base coat:
   a) Polyester
   b) Modified Polyester
   c) Polyester-Imide
   d) Polyvinyl fomal Polyimide

10) Heat shock: 155℃ - 300℃



Features of Rectangular Enameled Copper Wire:
1) Excellent bending property
2) High flexibility of the enamel
3) Good resistance to abrasion
4) High mechanical property
5) Higher thermal property
6) Good resistance to refrigerant and freon
7) Suitable for windings that are subjected to constantly high temperature and mechanical stress
8) Good chemical resistance
9) Outstanding mechanical and chemical property

Facility of Rectangular Enameled Copper Wire

Shanghai Metal Corporation has taken the lead in importing the Rectangular Enameled Copper Wire production and inspection equipment of the advanced international standards. The annual output of Rectangular Enameled Copper Wire and other Enameled wire over 7,000 tons.

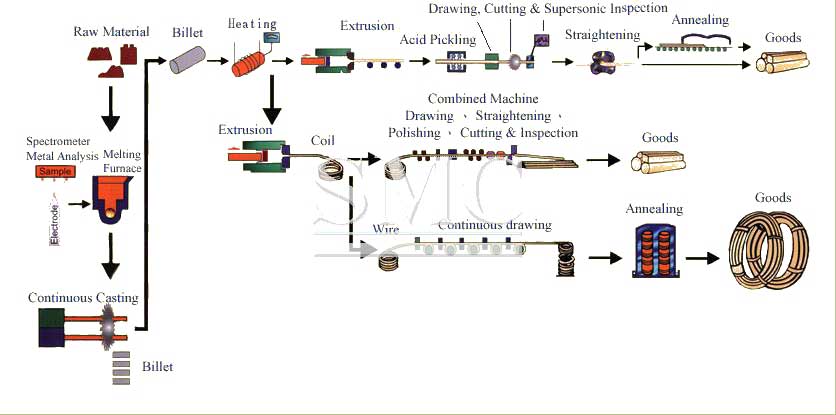

Manufacturing of Rectangular Enameled Copper Wire

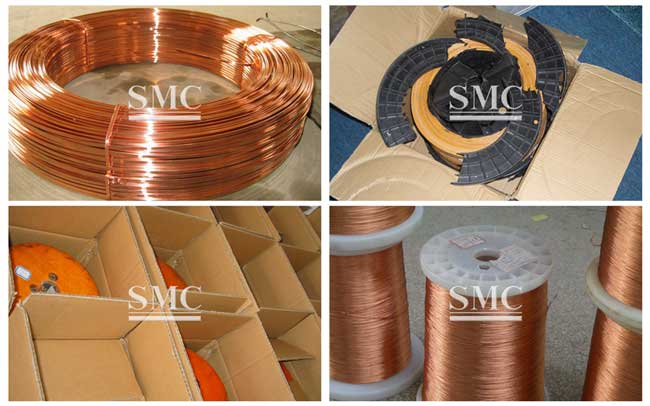

Packaging of Rectangular Enameled Copper Wire

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization



Applications of Rectangular Enameled Copper Wire:

1) 120 degree flat enameled wire for oil-immersed transformer

2) 130,155,180 degree flate enameled wire are widely used in all kinds of magnet coil

3) 200 degree flat enameled wire works constantly in high temperature

4) 240 degree flat enameled wire for magnet coils of aviation, military and marine application
